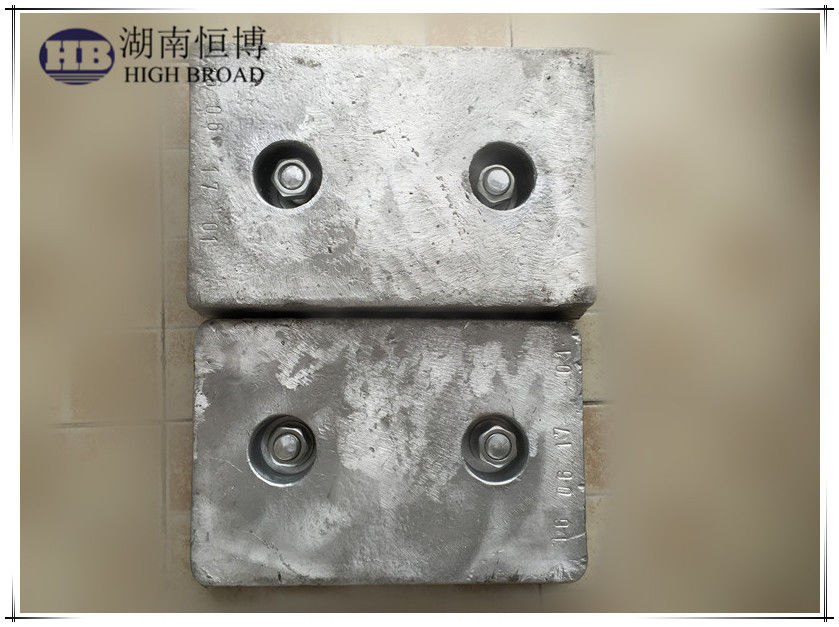

Aluminum Sacrificial Anode for Cathodic Protection of Subsea Structures

Good quality Aluminum Sacrificial Anode for sales
Good products, Nice services. I trust High Broad brand.

—— Sheikh Abdulla

I puchase cathodic protection anodes from High Broad from year 2006. We worked well as best partners.

—— Narrisa Kotsonis

I'm Online Chat Now

Aluminum Sacrificial Anode for Cathodic Protection of Subsea Structures

China Aluminum Sacrificial Anode for Cathodic Protection of Subsea Structures supplier

Large Image :  Aluminum Sacrificial Anode for Cathodic Protection of Subsea Structures

Product Details:

Place of Origin: Hunan,China
Brand Name: High Broad or OEM
Certification: DNV,ISO,BV
Model Number: sacrificial anode

Payment & Shipping Terms:

Minimum Order Quantity: 10 kgs
Price: USD3-4/kg
Packaging Details: in carton or on pallet
Delivery Time: 1 FCL:14 Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal , Alipay
Supply Ability: 300 Metric Ton/Metric Tons per Month
Contact Now
Detailed Product Description
Application: Marine Aluminum Anodes(hull Anodes)U.S. Government Specification MIL-A-21412A (Ships) Sacificial Anode Standard: ASTM Anode
Al Anode Shape: Corrosion Prevention Of Ship Hull Environment: Aluminum Ballast Tank Anodes

Product Name:



Aluminum Sacrificial Anode for Cathodic Protection of Subsea Structures



Aluminum Sacrificial Anode for Cathodic Protection of Subsea Structures





Specifications:



Standard : America standard or ASTM standard GAIII

Zn : 2.8-6.5%
In : 0.010-0.02%
Si: 0.08-0.2%
Cu :0.006% max
Fe : 0.120% max
Hg :-
Cd : 0.002% max
Others EA.: 0.02% max
Others Total : 0.05% max
Aluminum : balance

Electrode potential ( Cu/Cu SO4) -1.15v
Nominal Efficciency : 85%
Nominal Ampere Hours/pound: 1150



Applications:





Aluminum Sacrificial Anode for Cathodic Protection of Subsea Structures



Aluminum Sacrificial Anode for Cathodic Protection of Subsea Structures



aluminum anodes can be manufactured with a wide variety of core configurations, to accommodate

different anode specifications and applications such as vessel,,Mechanic equipment,Ballast Tank,Tank innter,

Seashore facility,Seabed pipeline,Dock steel structure,Marine platform etc.



Workshop & Warehouse:





Aluminum Sacrificial Anode for Cathodic Protection of Subsea Structures

Aluminum Sacrificial Anode for Cathodic Protection of Subsea Structures



Product Introduction:

   The corrosion of metal in salt or fresh water or in soil can be prevented by the use of galvanic anodes in a cathodic protection system.

   Magnesium anodes are used in such systems, most commonly to protect underground gas, oil and water pipelines.

   When the anode's cable is attached to a pipeline or other underground structure, a galvanic cell is created in which electrons flow from the anode to the structure, thereby protecting the structure.

   The anode corrodes instead of the structure and must be replaced after a certain period of time that depends on the type of structure that is being protected, the size and grade of anodes that are used, and the corrosivity and resistivity of the surrounding soil.

   In addition to pipelines, magnesium anodes are often used to protect propane, water and chemical storage tanks, areas of ships and port facilities that are not in direct contact with sea water, power plants and irrigation systems.

Applications:



   The corrosion of metal in salt or fresh water or in soil can be prevented by the use of galvanic anodes in a cathodic protection system.  Magnesium anodes are used in such systems, most commonly to protect underground gas, oil and water pipelines.

Company Brief Introduction:

We are a professional anode supplier over 16 years ,mainly supply:

* Magnesium anodes ( ASTM-G97)

* Zinc anodes (ASTM B418-95 US MILL 18001K)

* Al-Zn-In anodes (GAIII)

* High silicon cast iron anodes ( ASTM-A518-3,BS1591)

     Our anodes are shipped worldwide especial main to North America, Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you.

     We can also accept customized anodes with your logo according to your drawing !
