Product Details:
Payment & Shipping Terms:
|
| Anode Name: | 3/4" NPT Water Heaters Anode Rod For Suburban Water Heater 232767 | Grade: | Extruded Magnesium Anode Rod For Water Heater |
|---|---|---|---|
| Shape: | Rod / Bar | Standard: | Extruded, ISO, ASTM |
Magnesium anode rod are excellent sacrificial rods, used to protect the inside metal surface of your water heater tank. The magnesium corrodes instead of your tank. Magnesium anode rods tend to be consumed quicker than Aluminum or Aluminum/Zinc/Tin anode rods due to the higher voltage they create during the sacrificial process. Even though Magnesium anode rods normally corrode at a slightly faster rate than most anode rods, dissolved magnesium in water can offer many health benefits.

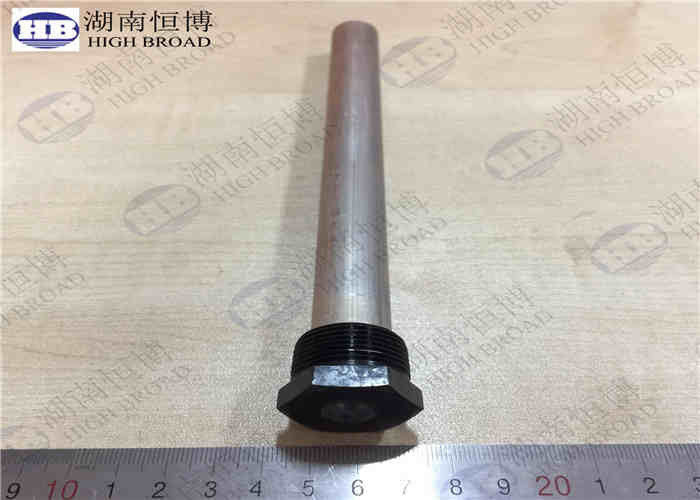

Water heater anode rod replacement for RV water heaters / Suburban
Anode rods extend the life of a water heater by attracting corrosive elements in the water, protecting your tank and elements from corrosion.
Type: extruded anode rod
cast anode rod

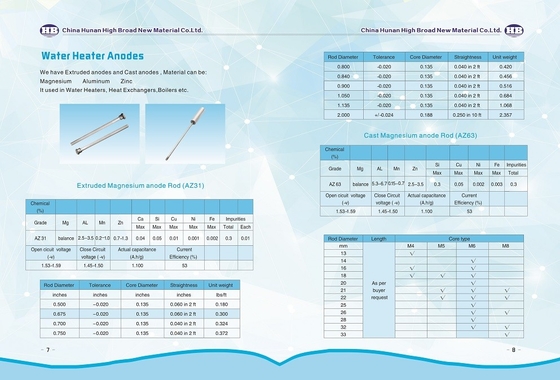

Extruded Magnesium anode Rod (AZ31)
| Chemical (%) | |||||||||||
| Grade | Mg | AL | Mn | Zn | Ca | Si | Cu | Ni | Fe | Impurities | |
| max | Max | Max | Max | Max | Total | Each | |||||
| AZ31 | balance | 2.5-3.5 | 0.2-1.0 | 0.7-1.3 | 0.04 | 0.05 | 0.01 | 0.001 | 0.002 | 0.3 | 0.01 |
| Open cicuit voltage (-v) | Close Circuit voltage (-v) | Actual capacitance (A.h/g) | Current Efficiency (%) | ||||||||
| 1.53-1.59 | 1.45-1.50 | 1.100 | 53 | ||||||||
| Rod Diameter | Tolerance | Core Diameter | Straightness | Unit weight |
| inches | inches | inches | inches | lbs/ft |
| 0.500 | -0.020 | 0.135 | 0.060 in 2 ft | 0.180 |
| 0.675 | -0.020 | 0.135 | 0.060 in 2 ft | 0.300 |
| 0.700 | -0.020 | 0.135 | 0.040 in 2 ft | 0.324 |
| 0.750 | -0.020 | 0.135 | 0.040 in 2 ft | 0.372 |
| 0.800 | -0.020 | 0.135 | 0.040 in 2 ft | 0.420 |
| 0.840 | -0.020 | 0.135 | 0.040 in 2 ft | 0.456 |
| 0.900 | -0.020 | 0.135 | 0.040 in 2 ft | 0.516 |
| 1.050 | -0.020 | 0.135 | 0.040 in 2 ft | 0.684 |
| 1.135 | -0.020 | 0.135 | 0.040 in 2 ft | 1.068 |
| 2.000 | +/-0.024 | 0.188 | 0.250 in 10 ft | 2.357 |
Cast Magnesium anode Rod (AZ63)
| Chemical (%) | |||||||||
| Grade | Mg | AL | Mn | Zn | Si | Cu | Ni | Fe | Impurities |
| Max | Max | Max | Max | Total | |||||
| AZ63 | balance | 5.3-6.7 | 0.15-0.7 | 2.5-3.5 | 0.3 | 0.05 | 0.002 | 0.003 | 0.3 |
| Open cicuit voltage (-v) | Close Circuit voltage (-v) | Actual capacitance (A.h/g) | Current Efficiency (%) | ||||||
| 1.5-1.55 | 1.45-1.50 | 1.105 | 50 | ||||||
| Rod Diameter | Length | Core type | |||
| mm | As per buyer request | M4 | M5 | M6 | M8 |
| 13 | √ | ||||
| 14 | √ | ||||
| 16 | √ | √ | |||
| 18 | √ | √ | √ | ||
| 20 | √ | ||||
| 21 | √ | √ | √ | ||
| 22 | √ | √ | √ | ||
| 25 | √ | ||||
| 26 | √ | √ | |||
| 28 | √ | ||||
| 32 | √ | √ | |||
| 33 | √ |
||||
We are a professional anode supplier over 16 years ,mainly supply:
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* Al-Zn-In anodes (GAIII)
* Magnesium anodes ( ASTM-G97)
* High silicon cast iron anodes ( ASTM-A518-3,BS1591)
Our anodes are shipped worldwide especial main to North America, Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you.
We can also accept customized anodes with your logo according to your drawing !
