Single / Double Slip / All Metal Soluble Bridge Plug Magnesium alloy

China Single / Double Slip / All Metal Soluble Bridge Plug Magnesium alloy supplier

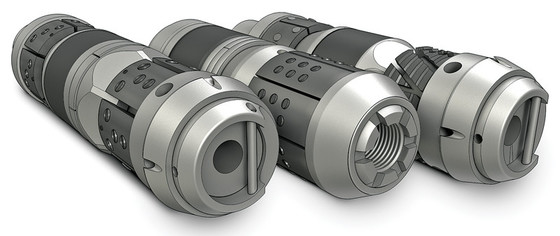

Large Image :  Single / Double Slip / All Metal Soluble Bridge Plug Magnesium alloy

Product Details:

Place of Origin: CHINA
Brand Name: High Broad
Certification: ISO / ROHS / REACH
Model Number: Soluble

Payment & Shipping Terms:

Minimum Order Quantity: 100 kgs
Price: more quantity with better price
Packaging Details: in wood case
Delivery Time: 10-20 days
Payment Terms: Western Union, T/T, D/P, L/C
Supply Ability: 1000 mt/ month
Detailed Product Description
Inner Diameter Of Casing: 60-124mm Grade: Soluble Magensium Bridge Plug
Material: All Metal / Single Slip / Double Slip Delivery: 14 Days

Single / Double Slip / All Metal Soluble Bridge Plug Magnesium Alloy



Main technical parameters

Water soluble medium: 0.5-5% chloride ion solution

Sealing stability period: 24 hours

Lost sealing water solubility time: 5-7 days

Complete water solubility time: 8-15 days

Sealing delivery method: cable or hydraulic delivery

Applicable wellbore conditions: vertical and horizontal wells in acidic working environments without direct contact

Setting tool model: Weide Fu HST or AH, bh E-4, NO.20, DYSS-1 Setting tool


The working principle of soluble bridge plugs mainly involves the following steps:

1. Transportation and positioning: Transport soluble bridge plugs to the predetermined position in the wellbore through cables or tubing.

2. Setting tool: Use gunpowder blasting, hydraulic setting or mechanical setting tools to generate pressure, which is transmitted to the pushing cylinder of the bridge plug through the outer cylinder of the setting tool, and then squeeze the soluble rubber cylinder and the slip.

3. Setting process: When the thrust reaches a certain value, cut the release pin to separate the setting tool from the soluble bridge plug. At this point, the locking device on the center pipe of the soluble bridge plug is activated, causing the slip to break and be embedded on the inner wall of the casing. The rubber cylinder expands and seals, completing the sealing process.

4. Release and dissolution: After the sealing is completed, the thread of the release ring is cut, releasing the soluble bridge plug. Then, under the action of the well fluid, the soluble bridge plug gradually dissolves, achieving the purpose of sealing or sealing the formation.

The structure of soluble bridge plugs includes components such as a central tube, anchoring mechanism, sealant cylinder, and release ring. These components are connected through gap fitting or threaded connections to ensure the correct position and sealing effect of the bridge plug in the wellbore

 Single / Double Slip / All Metal Soluble Bridge Plug Magnesium alloy
