| Name: | American Standard Aluminium Anode/Al Anode | Material: | Al-Zn-In Alloy Aluminum Pier & Piling Anodes For Seawater And Offshore Structures |
|---|---|---|---|
| Type: | H-1 ALLOY CAST MAGNESIUM ANODES(ASTM AZ63) | Application: | Cathodic Protection, Anti-corrosion,offshore Project, Bridge,, Anti Corrosion |
| Color: | Silver Aluminum Anode | Category: | Sacrificial Aluminium Anode For Corrosion Control |
| Standard: | GB/T 4948-2002/ASTM/ GAIII Anti-corrosion/Cathodic Protection | ||
| Highlight: | aluminium anodes,aluminum anodized |
||
Sacrificial Aluminum anode are simple and economical that it could be be performance under a variety of environmental conditions,after proper installation that Alumnium anodes will performance efficiently and continuously without any attention for CP systems.

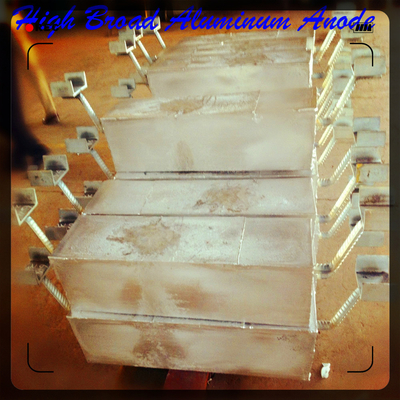

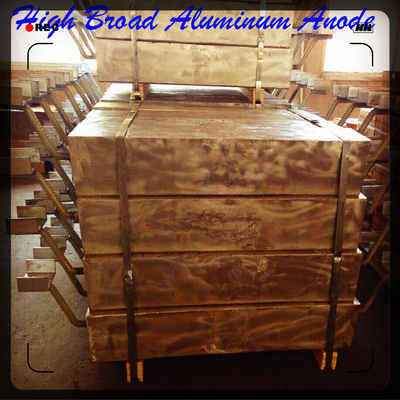

Aluminum Pier & piling anodes for seawater and offshore structures
| Type | HT-SA | HT-SB | HT-SC | HT-SD |
| Dim. | 2300x(220+240)x230 | 1600x(220+210)x220 | 1500x(170+200)x180 | 800x(200+280)x150 |
| Weight | 275.0kg | 165.0kg | 144.0kg | 80.0kg |
| Type | HT-SE | HT-SF | HT-SG | HT-SH |
| Dim. | 1250(115+135)x130 | 900x(150+170)x160 | 1000x(115+135)x130 | 750x(115+135)x130 |
| Weight | 56.0kg | 53.0kg | 45.0kg | 34.0kg |
| Type | HT-SI | HT-SJ | HT-SK | HT-SM |
| Dim. | 1500x(148+178)x170 | 850x(180+220)x180 | 700x(160+220)x180 | 500x(115+135)x130 |
| Weight | 120.0kg | 85.0kg | 72.5kg | 23.0kg |
*The Dim. Refers to length x width x thickness in mm
* We also take customers’ requirements order.
Aluminium anode can be used for Hull, Ballast tanks, offshore engineering, Harbor Structures, Sea water cooling system, and submerged pipelines.
We are a professional anode supplier over 16 years ,mainly supply:
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* Al-Zn-In anodes (GAIII)
* Magnesium anodes ( ASTM-G97)
* High silicon cast iron anodes ( ASTM-A518-3,BS1591)
Our anodes are shipped worldwide especial main to North America, Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you.
We can also accept customized anodes with your logo according to your drawing !
