Name: | American Standard Aluminium Anode/Al Anode For Sacrificial Anode | Material: | Anti-corrosion/Cathodic Protection Al-Zn-In Alloy |
---|---|---|---|
Type: | Magnesium Anode Aluminum Anode Zinc Anode For Ships | Usage: | Cathodic Protection For Offshore Project, Bridge,, Anti Corrosion |
Shape: | Aluminum Anodes For Seawater And Offshore Structures | Application: | Aluminum Anode For Harbour And Offshore Application |
Category: | Sacrificial Aluminium Anode For Corrosion Control | Standard: | Aluminum Hull Anode For Ships |
Aluminum Hull Anodes: | For Use On Hulls Of Ships, Tugs, Barges, Etc., Operating In Seawater | ||
Highlight: | aluminum sacrificial anodes,aluminum anodized |
Sacrificial Aluminium Anodes are simple and economical that it could be performance under a variety of environmental conditions, after proper installation that Aluminium anodes will performance efficiently and continuously without any attention for CP systems.
With its perfect performances, it could be widely used for the cathodic protection systems of seawater, pipelines, offshore structures, ship hulls, tanks, boilers, piers, etc.
Aluminum Bracelet Anode
Anode | Weight Kg/pair | Diameter mm | Width mm | Thickness mm | Steel Core mm |
HM-13 | 13 | 819 | 60 | 30 | 5x25 |
HM-17 | 17 | 624 | 80 | 30 | 5x50 |
HM-26 | 26 | 252 | 250 | 45 | 5x50 |
HM-32 | 32 | 385 | 150 | 59 | 5x50 |
HM-50 | 50 | 470 | 480 | 25 | 5x50 |
HM-68 | 68 | 1020 | 200 | 35 | 5x50 |

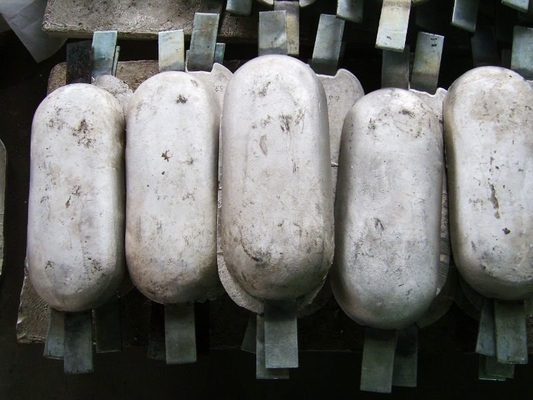

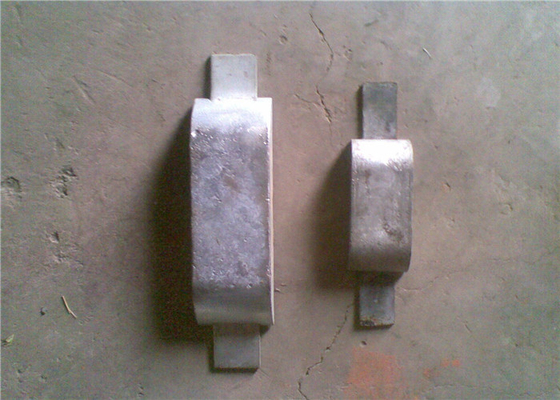

Aluminum Hull Anodes
For use on hulls of ships, tugs, barges, etc., operating in seawater. All anodes are faired or tapered to minimize turbulence. Anodes are produced with mild steel core straps.
Aluminum Ballast Tank Anodes
Anode and core arrangements approved by the American Bureau of Shipping, and Lloyd's Register. Special anode sizes available on request.
Aluminum Pier & Piling Anodes
anodes for seawater applications can be furnished with a wide variety of steel cores
Aluminum Heater Treater Anodes
Special anode sizes available on request
Aluminum Bracelet Anodes
HighBroad has produced all sizes of aluminum bracelets ranging from 11/2" O.D. to 48" O.D. including cast-on bracelet sizes with great success. HighBroad's accomplishment regarding on time deliveries and quality workmanship is due to our competent staff with many years of experience in manufacturing anodes of all types. HighBroad's laboratory is fully equipped with state-of-the-art equipment. All products are tested and inspected prior to shipping. Chemical analyses are run on each heat prior to casting.
We are a professional anode supplier over 16 years ,mainly supply:
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* Al-Zn-In anodes (GAIII)
* Magnesium anodes ( ASTM-G97)
* High silicon cast iron anodes ( ASTM-A518-3,BS1591)
Our anodes are shipped worldwide especial main to North America, Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you.
We can also accept customized anodes with your logo according to your drawing !
Our Belief: Continuous Innovation.
Our Spirit: Sincerity, Unity, Dedicated, Hardworking.
Our Mission: Provide most advanced products & most professional technical solution.
