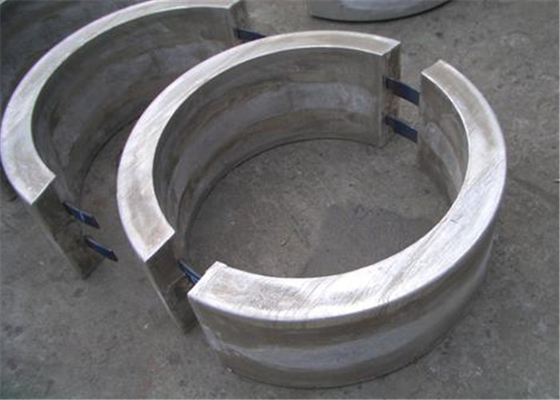

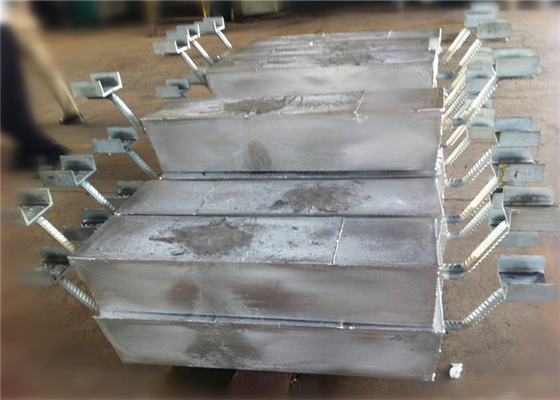

Aluminum Anodes for offshore project Hull Ballast tanks Harbor Structure

Large Image : Aluminum Anodes for offshore project Hull Ballast tanks Harbor Structure

Product Details:

Place of Origin:	China
Brand Name:	High Broad or OEM
Certification:	ISO, DNV,BV
Model Number:	MIC,HP,AZ

Payment & Shipping Terms:

Minimum Order Quantity:	10 kgs
Price:	negotiable
Packaging Details:	on pallet
Delivery Time:	1FCL: 14 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability:	300mt/month

Contact Now

Detailed Product Description

Product Name:	Aluminum Anodes For Offshore Project,Hull, Ballast Tanks, Harbor Structure	Application:	Cathodic Protection,anti-corrosion For Hull, Ballast Tanks, Offshore Engineering, Harbor Structures, Sea Water Cooling System,submerged Pipelines.
Sacificial Anode Standard:	ASTM Al-Zn-In Alloy Anode	Al Anode Shape:	Square, Round, Bar
Content:	Al Alloy Anode For Cathodic Protection	Other Name:	Aluminum Sacrificial Anode,Cathodic Protection Anode
Material:	Sacrificial Aluminum Alloy Anode	Core Type:	Weld,Bolts
Highlight:	aluminum sacrificial anodes , aluminum anodized

Aluminum Anodes for offshore project Hull Ballast tanks Harbor Structure

Type	HT-SA	HT-SB	HT-SC	HT-SD
Dim.	2300x(220+240)x230	1600x(220+210)x220	1500x(170+200)x180	800x(200+280)x150
Weight	275.0kg	165.0kg	144.0kg	80.0kg
Type	HT-SE	HT-SF	HT-SG	HT-SH
Dim.	1250(115+135)x130	900x(150+170)x160	1000x(115+135)x130	750x(115+135)x130
Weight	56.0kg	53.0kg	45.0kg	34.0kg
Type	HT-SI	HT-SJ	HT-SK	HT-SM
Dim.	1500x(148+178)x170	850x(180+220)x180	700x(160+220)x180	500x(115+135)x130
Weight	120.0kg	85.0kg	72.5kg	23.0kg

*The Dim. Refers to length x width x thickness in mm

* We also take customers’ requirements order.

Specifications:

Standard :GB 4948 or America standard

Electrochemical characteristics :

Item	Material of anodes	Open-circuit Voltage (v)	Close-circuit Voltage (v)	Actual Capacity(Ah/kg)	Current efficiency (%)	Consumption rate ( kg.(A.a)*	Dissolve Performance
Electrochemical Performance	Type 1	-1.18- -1.10	-1.12- -1.05	≥2400	≥85	≤3.65	The surface dissolve evenly & oxide drop easily
Electrochemical Performance	Type 2	-1.18- -1.10	-1.12- -1.05	≥2600	≥90	≤3.37	The surface dissolve evenly & oxide drop easily
Reference electrode: Saturated calomel electrode Type 1: A11,A12,A13,A14* Type 2: A21

Applications:

Sacrificial Aluminum anode are simple and economical that it could be be performance under a variety of environmental conditions,after proper installation that Alumnium anodes will performance efficiently and continuously without any attention for CP systems.

Workshop & Warehouse:

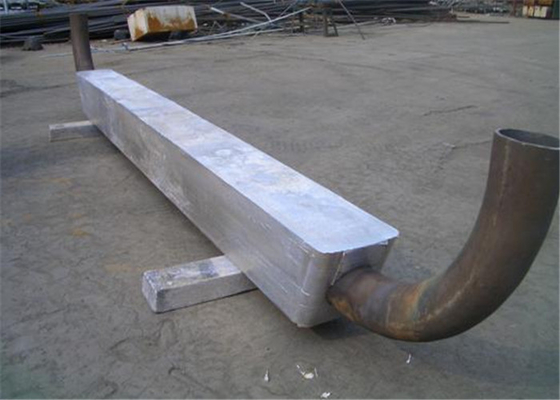

Aluminum Anodes for offshore project Hull Ballast tanks Harbor Structure
