Product Details:
Payment & Shipping Terms:
|
Application: | Anit Corrosion Anode, | Content: | Al-Zn-In Alloy, Aluminum Alloy |
---|---|---|---|
Type: | Sacrificial Anode | Shape: | Weld Type, Bolts Type |
Highlight: | aluminum sacrificial anodes,aluminum anodized |

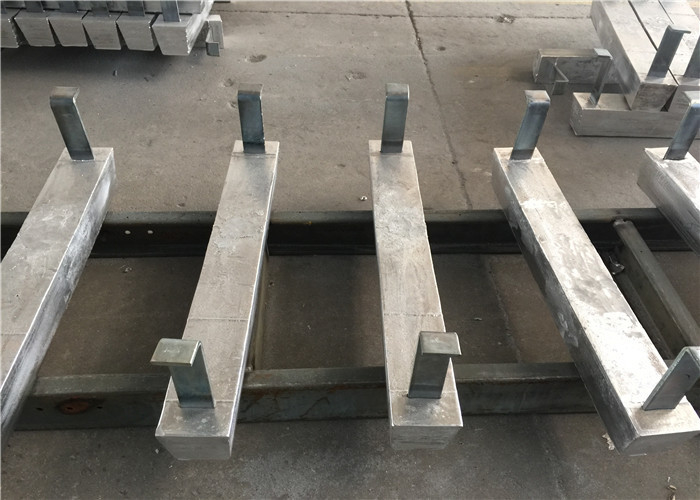

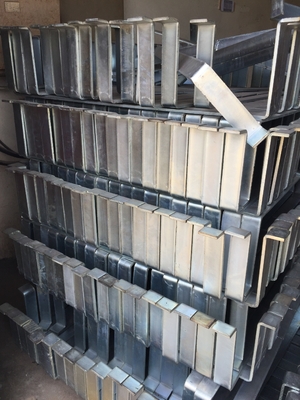

Aluminum sacrificial anode for jetty,piles,pier content Al-Zn-In alloy weld type
Aluminum Anode Cathodic Protection
1. Easy installation
2. Perfect performances
Aluminum Anode Cathodic Protection is simple and economical that it could be performance under a variety of environmental conditions, after proper installation that Aluminum anodes will performance efficiently and continuously without any attention for CP systems.
With its perfect performances, it could be widely used for the cathodic protection systems of seawater, pipelines, offshore structures, ship hulls, tanks, boilers, piers, etc.
Sacrificial Aluminum Anodes are mainly used for the metal anti-corrosion & cathodic protection of ships, mechanical equipment, offshore engineering and port facilities in seawater as well as the protection of pipes, cables and other facilities in mud. Aluminum Anodes are designed for optimum performance under a variety of environmental conditions and temperature ranges. Cast in a variety of alloys, sizes and weights, Aluminum anodes provide maximum performance in seawater and brackish environments.
Chemical Composition of Aluminum Anode, %
Alloy | Zn | In | Cd | Sn | Mg | Ti | Impurities(max) | Al | ||
Si | Fe | Cu | ||||||||
Al-Zn-IN | 2.0-2.6 | 0.01-0.02 | - | - | - | - | 0.1 | 0.1 | 0.006 | Bal. |
Al-Sn-In-Cd | 2.5-4.5 | 0.018-0.050 | 0.005-0.020 | - | - | - | 0.1 | 0.15 | 0.01 | Bal. |
Al-Zn-In-Sn | 2.2-5.2 | 0.020-0.045 | - | 0.018-0.035 | - | - | 0.1 | 0.15 | 0.01 | Bal. |
Al-Zn-In-Si | 5.5-7.0 | 0.025-0.035 | - | - | - | - | 0.10-0.15 | 0.15 | 0.01 | Bal. |
Al-Zn-In-Sn-Mg | 2.5-4.0 | 0.020-0.050 | - | 0.025-0.075 | 0.50-1.00 | - | 0.10 | 0.15 | 0.01 | Bal. |
Al-Zn-In-Mg-Ti | 4.0-7.0 | 0.020-0.050 | - | - | 0.50-1.50 | 0.01-0.08 | 0.10 | 0.15 | 0.01 | Bal. |
Electrochemical Properties of Aluminum Anode
Type | Open Voltage (-V) | Closed Voltage (-V) | Capacity A.h/kg | Efficiency |
Al-Zn-In | 1.05-1.18 | 1.05-1.12 | 2400 min | 85% min |
Al-Zn-In-Mg-Ti | 1.10-1.18 | 1.05-1.12 | 2600 min | 90% min |
Al-Zn-In-Mg-Ti | 1.10-1.18 | 1.05-1.12 | 2600 min | 92% min |
Specification and Dimension of Aluminum Anode for ships
Type | JHT-VA | JHT-VB | JHT-VC | JHT-VD | JHT-VE |
Dim. | 800x140x57 | 800x140x50 | 800x140x40 | 600x120x50 | 500x140x35 |
Weight | 16.0kg | 15.0kg | 12.0kg | 10.0kg | 5.5kg |
Type | JHT-VF | JHT-VG | JHT-VH | JHT-VI | JHT-VI |
Dim. | 500x100x40 | 400x120x50 | 400x100x35 | 300x150x50 | 300X150X40 |
Weight | 5.5kg | 6.5kg | 3.7kg | 5.8kg | 4.6 |
Type | JHT-VJ | JHT-VK | JHT-VL | *The Dim. Refers to length x width x thickness in mm. | |
Dim. | 300x100x35 | 250x100x35 | 180x70x35 | ||
Weight | 2.3kg | 1.9kg | 1.1kg |
* We can also customize anodes according to client’s requirements.
