Cathodic Protection Application Aluminum Anodes For Hull Ballast Tanks

Large Image : Cathodic Protection Application Aluminum Anodes For Hull Ballast Tanks

Product Details:

Place of Origin:	China
Brand Name:	High Broad or OEM
Certification:	ISO, DNV,BV
Model Number:	MIC,HP,AZ

Payment & Shipping Terms:

Minimum Order Quantity:	10 kgs
Price:	negotiable
Packaging Details:	on pallet
Delivery Time:	1FCL: 14 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability:	500mt/month

Contact Now

Detailed Product Description

Product Name:	Aluminum Anodes For Offshore Project,Hull, Ballast Tanks, Harbor Structure	Application:	Cathodic Protection,anti-corrosion For Hull, Ballast Tanks, Offshore Engineering, Harbor Structures, Sea Water Cooling System,submerged Pipelines.
Sacificial Anode Standard:	ASTM Al-Zn-In Alloy Anode	Al Anode Shape:	Square, Round, Bar
Content:	Al Alloy Anode For Cathodic Protection	Other Name:	Aluminum Sacrificial Anode,Cathodic Protection Anode
Material:	Sacrificial Aluminum Alloy Anode	Core Type:	Weld,Bolts
Highlight:	aluminum sacrificial anodes , aluminium anodes

Aluminum Anodes for offshore project Hull Ballast tanks Harbor Structure anti corrosion

Type	HT-SA	HT-SB	HT-SC	HT-SD
Dim.	2300x(220+240)x230	1600x(220+210)x220	1500x(170+200)x180	800x(200+280)x150
Weight	275.0kg	165.0kg	144.0kg	80.0kg
Type	HT-SE	HT-SF	HT-SG	HT-SH
Dim.	1250(115+135)x130	900x(150+170)x160	1000x(115+135)x130	750x(115+135)x130
Weight	56.0kg	53.0kg	45.0kg	34.0kg
Type	HT-SI	HT-SJ	HT-SK	HT-SM
Dim.	1500x(148+178)x170	850x(180+220)x180	700x(160+220)x180	500x(115+135)x130
Weight	120.0kg	85.0kg	72.5kg	23.0kg

*The Dim. Refers to length x width x thickness in mm

* We also take customers’ requirements order.

Specifications:

Standard :GB 4948 or America standard or ASTM standard

Chemical Composition Analysis (%)

Type	Zn	In	Cd	Sn	Mg	Si	Ti	Impurity ,less than			Al
Type	Zn	In	Cd	Sn	Mg	Si	Ti	Si	Fe	Cu	Al
Al-Zn-In-Cd A11	2.5-4.5	0.018-0.050	0.005-0.020	-	-	--	-	0.10	0.15	0.01	Balance
Al-Zn-In-Sn A12	2.2-5.2	0.020-0.045	-	0.018-0.035	-	-	-	0.10	0.15	0.01	Balance
Al-Zn-In-Si A13	5.5-7.0	0.025-0.035	-	-	-	0.10-0.15	-	0.10	0.15	0.01	Balance
Al-Zn-In-Sn-Mg A14	2.5-4.0	0.020-0.050	-	0.025-0.075	0.50-1.00	-	-	0.10	0.15	0.01	Balance
Al-Zn-In-Mg-Ti A21	4.0-7.0	0.02-0.050	-	-	0.50-1.50	-	0.01-0.08	0.10	0.15	0.01	Balance

Electrochemical characteristics :

Item	Material of anodes	Open-circuit Voltage (v)	Close-circuit Voltage (v)	Actual Capacity(Ah/kg)	Current efficiency (%)	Consumption rate ( kg.(A.a)*	Dissolve Performance
Electrochemical Performance	Type 1	-1.18- -1.10	-1.12- -1.05	≥2400	≥85	≤3.65	The surface dissolve evenly & oxide drop easily
Electrochemical Performance	Type 2	-1.18- -1.10	-1.12- -1.05	≥2600	≥90	≤3.37	The surface dissolve evenly & oxide drop easily
Reference electrode: Saturated calomel electrode Type 1: A11,A12,A13,A14* Type 2: A21

Applications:

Sacrificial Aluminum anode are simple and economical that it could be be performance under a variety of environmental conditions,after proper installation that Alumnium anodes will performance efficiently and continuously without any attention for CP systems.

Workshop & Warehouse:

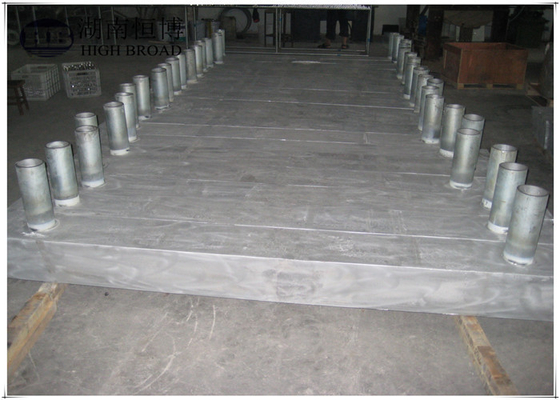

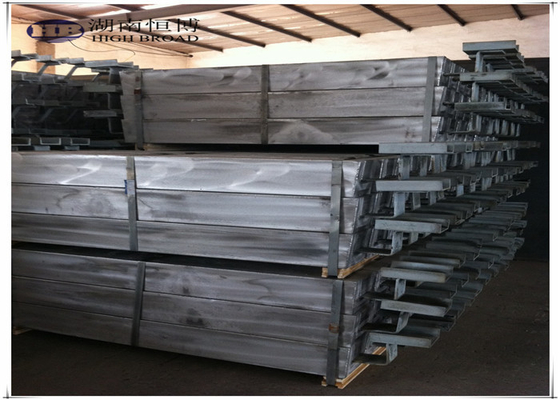

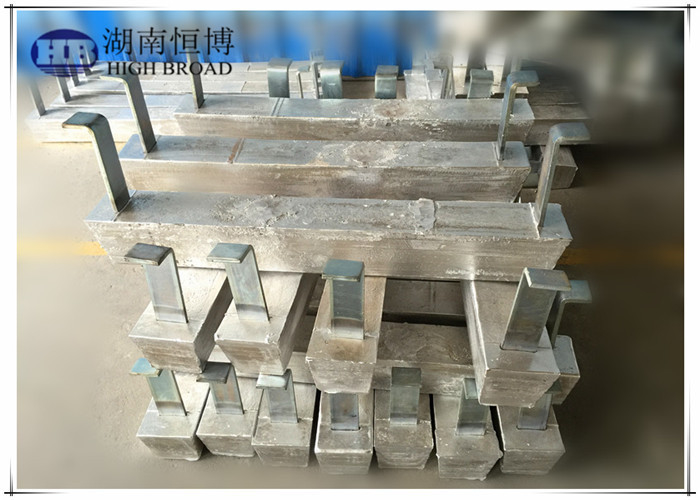

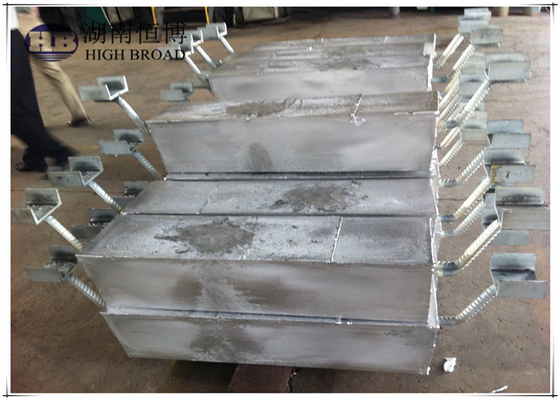

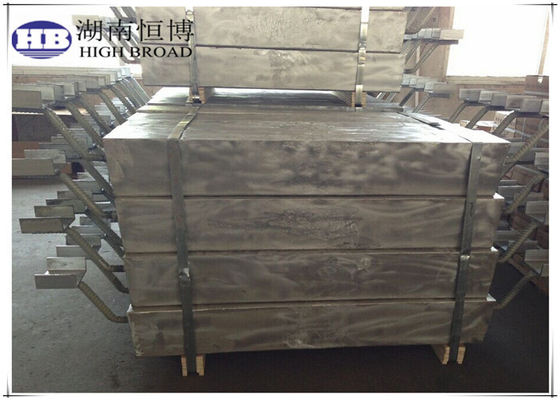

Cathodic Protection Application Aluminum Anodes For Hull Ballast Tanks

Company Brief Introduction:

We are a professional anode supplier over 16 years ,mainly supply:

* Zinc anodes (ASTM B418-95 US MILL 18001K)

* Al-Zn-In anodes (GAIII)

* Magnesium anodes ( ASTM-G97)

* High silicon cast iron anodes ( ASTM-A518-3,BS1591)

Our anodes are shipped worldwide especial main to North America, Middle east ,Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you.

We can also accept customized anodes with your logo according to your drawing !
