Customized Silver Sacrificial Aluminum Anode For Cathodic Protection

China Customized Silver Sacrificial Aluminum Anode For Cathodic Protection supplier

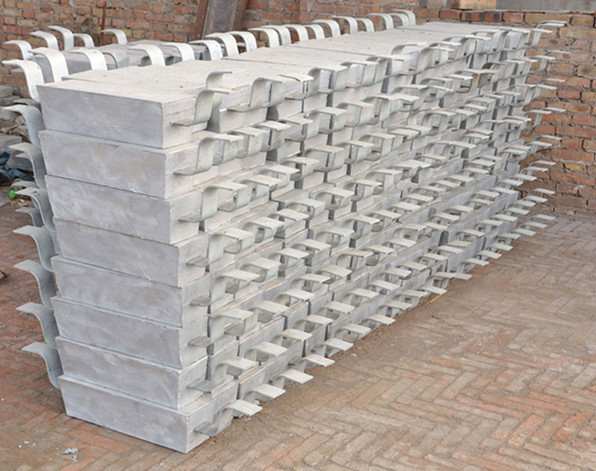

Large Image :  Customized Silver Sacrificial Aluminum Anode For Cathodic Protection

Product Details:

Place of Origin: China
Brand Name: High Broad or OEM aluminium anode
Certification: ISO,ASTM G97
Model Number: Aluminium anode

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece for High quality Aluminum Anode for cathodic protection
Price: negotiable
Packaging Details: Aluminum anode on pallet
Delivery Time: 5-10days after received payment.
Payment Terms: T/T, L/C, D/P, Western Union,Paypal
Supply Ability: 500Ton per week
Detailed Product Description
Product Name: High Quality Aluminum Anode For Cathodic Protection Application: Sacrificial Anode For Cathodic Protection
Material: Aluminium Anode Keywords: Aluminum Sacrificial Anode
Customized Size: Customized Size Available Color: Silver
Highlight:

aluminum sacrificial anodes

,

aluminium anodes

High quality Aluminum Anode for cathodic protection



Aluminum anodes can be manufactured with a wide variety of core configurations, to accommodate different anode specifications and applications such as vessel,,Mechanic equipment,Ballast Tank,Tank innter,Seashore facility,Seabed pipeline,Dock steel structure,Marine platform etc.

Aluminum Anode



Chemical Composition



Type Alloy Element
Zn In Si Cu Fe Hg Cd Other Al
Each Total
HB- I 2.80-6.50 0.01-0.02 0.08-0.2 0.006max 0.12max - 0.002 max 0.02 max

0.05

max

Balance
HB- 2 4.75-5.75 0.016-0.02 0.08-0.12 0.003max 0.06max - 0.002max

0.02

max

0.05

max

Balance
HB-3 4.0-6.5 0.014-0.02 0.08-0.2 0.004max 0.09max 0.001max -

0.02

max

0.1

max

Balance



Electrochemical Performance



Type

Electrode Potential

-V(vs Cu/CuSO4)

Current Efficiency

%(vs Cu/CuSO4)

Generating Current

(A.h)/kg(vs Cu/CuSO4)

HB- I 1.57 85 1150
HB- 2 1.15 85 1150



Aluminum Hull Anode



Anode

Weight

(kg)

Cross Sec.

(WxH)mm

Length w/o strap

(La)mm

Length w/o strap

(Lc)mm

HM-545-A 5.45 114.3x57.2 355.6 482.6
HM-908-A 9.08 114.3x57.2 609,6 736.6
HM-1040-A 10.40 127.0x49.0 610.0 610.0
HM-1320-A 13.20 127.0x64.0 619.0 619.0





Aluminum Ballast Tank Anode





Anode

Weight

(kg)

Cross Sec.

(WxH)mm

Length

(La)mm

Length Core

(Lc)mm

HM-9-CC 9.53 50.8x50.8 1219.2 914.4
HM-11-CC 11.8 50.8x50.8 1524 1219.2
HM-13-CC 13.6 63.5x63.5 1219.2 914.4
HM-17-CC 17.7 63.5x63.5 1524 1219.2
HM-21-CC 21.8 76.2x76.2 1219.2 914.4







Aluminum Bracelet Anode



Anode

Weight

Kg/pair

Diameter

mm

Width

mm

Thickness

mm

Steel Core

mm

HM-13 13 819 60 30 5x25
HM-17 17 624 80 30 5x50
HM-26 26 252 250 45 5x50
HM-32 32 385 150 59 5x50
HM-50 50 470 480 25 5x50
HM-68 68 1020 200 35 5x50





We can surely produce aluminium anode as per your drawing !

Pls contact us for more details !
