Product Name: | MGPS System Aluminum-Based Anti-Corrosion Aluminum Anode For Degassing Vessels | Material: | Aluminum Anode |
---|---|---|---|
Application: | Marine Growth Preventing System (MGPS) | Shape: | Anode Rod |
Chemical Composition: | Aluminum Alloy | Aluminum Alloy: | Aluminum Anodes For Ships |
Anodetype: | Aluminum Alloy Sacrificial Anode | Chemical: | Al |
Corrosion Resistance: | High | Size: | Customizable |
Use: | Marine Cathodic Protection | ||
Highlight: | Anti Corrosion Aluminum Anode,MGPS System Aluminum Based Anode,Marine Aluminum Anode Rod |

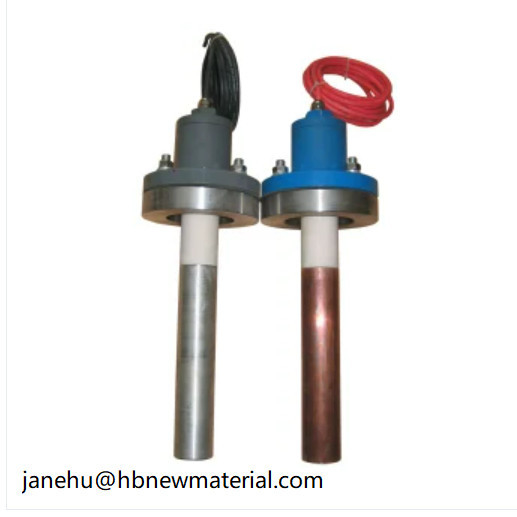

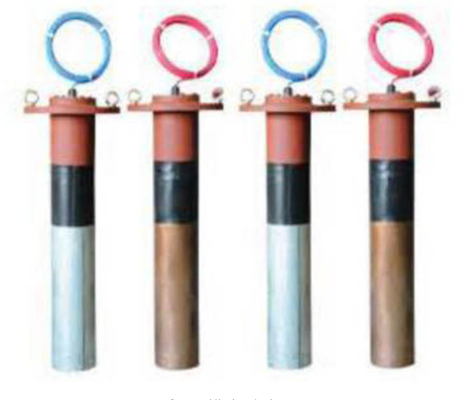

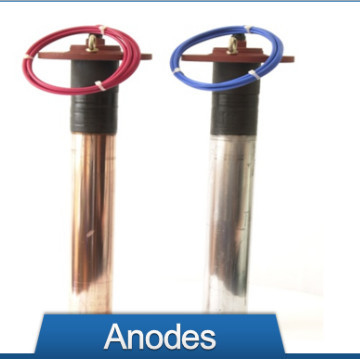

MGPS System Aluminum-Based Anti-Corrosion Aluminum Anode for Degassing Vessels
Ship anti fouling and corrosion control anode
Copper Anode and Aluminium Anode successfully solve the problem of marine fouling in seawater cooling system on board marine craft and at the same time provide corrosion protection piping systems.
Low electrical power consumption, easy to install and replace even afloat
What is Marine Growth?
Ships are dependent on the seawater upon which they travel for a variety of reasons. One primarily function seawater serves is to cool the engine and parts of the ship while it’s operating. The used seawater is then discharge back into the sea and new seawater taken in, forming a continuous flow of exchange of saline water between the ship and its surrounding aqueous environment. Despite its benefits, the downside of this is that seawater contains marine organisms (both macro and micro), some visible to the naked eye while most are not. As the seawater passes through the various pipes and parts of the ship’s engine, marine organisms are deposited along their surface. Over time, the deposit builds up, reducing the efficiency of the ship’s engine and in severe cases, choking the entire system of the ship’s engine which could eventually lead to malfunction of the entire ship’s engine.
MGPS, the solution.
Fortunately, the Marine Growth Prevention System (MGPS) was conceptualised and created with the sole purpose of defeating Marine Growth right at its very root, preventing even the most minute trace of marine organism from depositing itself along the ship’s interior altogether.
The system consists of a CONTROL UNIT which supplies impressed current to Anodes. The COPPER anode produces ions, which are carried away by the sea water into the piping and machinery system. Concentration of copper in the solution is less then 2 parts per billion but enough to prevent marine life from settling Basic principle on which MGPS runs is electrolysis. The process involves usage of Copper, Aluminum and Ferrous Anodes.
The ions, spread over the system and produce a anti fouling and anti corrosive film over the Sea Water Pipelines, Intercoolers, Condensors, Heat Exchangers, Valves, Refrigeration Systems , Box Coolers and AC units internally. Increasing seawater circulation and eliminating corrosion in the pipelines, increasing its duration and efficiency. That means energy savings
Our Anti-fouling System is designed for our world wide clients with the following features.
Capable of auto current change acc to 2 or 3 step flow operation
Touch screen controller is applicable
Low installation/maintenance costs and Safe
Environment-friendly with normal 2ppb (parts per billion) dosing rate of copper ion
Very convenient operation on easy and sophisticated controller
Data communication and alarm signal can be connected to ship’s AMS
Simple installation to all kinds of new building as well as retrofitting ships
Pls contact us for more details !
