| Name: | Magnesium Photoengraving Plate AZ91D | Material: | Magnesium Alloy Plate Az91D |
|---|---|---|---|
| Other Pruduct: | Magnesium Alloy Plate Az31 Az31b Az61 | Application: | Magnesium Engraving Plate |
| Processing Method: | Hot Roll, Extruded,Cast | Key Words: | Magnesium Alloy Az91 |
| Key Word: | Magnesium Plate Az91 Etching Magnesium Plate | Detail Function: | Magnesium Alloy Plate For CNC Engraving,Embossing,Etching,Stamping |
| Highlight: | metal sheet plate,magnesium etching plate |
||
AZ91 is a wrought magnesium base alloy with good room-temperature strength and ductility combined with corrosion resistance and weldability. Increased strength is obtained by strain hardening with a subsequent partial anneal (H24 and H26 tempers).

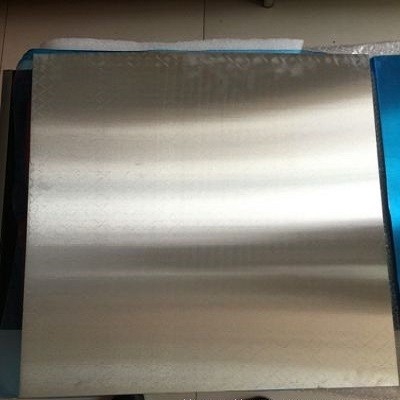

Commodity : Coated Magnesium Alloy Plate for Etching
Content: Magnesium Alloy
Process : Extruded
Application: Etching Plate
Type : AZ91
Size Range:

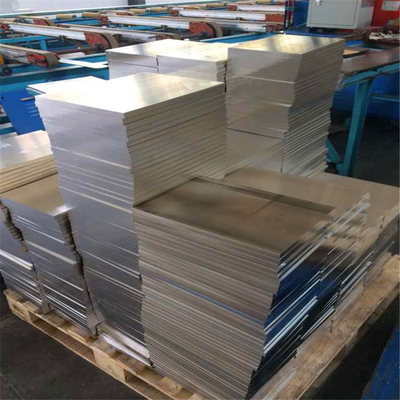

Sheet: thickness from 0.5mm to 7mm; Max. width is 600mm; Max. length is 1200mm;
Chemical Composition:
Al: 2.5-3.5%; Zn: 0.7-1.3%; Mn: 0.20 – 1.0%; Mg: Balance
Density: 1.78
Coefficient of thermal expansion: 26.8 x 10-6K-1
Specific heat: 1040 Jkg-1k-1
Thermal conductivity: 76.9Wm-1k-1
Electrical resistivity: 92nΩm
Modulus of elasticity: 45 x 109Pa
Poissons ratio: 0.35
Melting range: 566 - 632°C
AZ91 is non-magnetic and has high electrical and thermal conductivity filling the requirements for RFI and EMI shielding in the electronics and computer industries.Superplastic forming of AZ91 sheet at elevated temperatures allows production of a wide variety of intricate parts for automotive uses. Monocoque construction utilizing formed sheet can be adapted to many commercial applications.
Sheet and plate in AZ91 find application in medium strength service at temperatures below 150°C. Diverse uses including aerospace, aircraft, concrete tools, 3C (cell phone / camera / computer), speaker cones and textile machinery can all benefit from light weight AZ91.
