Product Details:
Payment & Shipping Terms:
|
Material: | Magnesium Alloy Plate | Application: | CNC Engraving,Embossing,Etching,Stamping |
---|---|---|---|
Type: | Hot Rolling , Extruded, Cast Roll | Surface: | Silver Smooth |
Industrial: | Computer,Printing,Camera,Cellphone | Commom Type: | Magnesium Alloy Sheet Az31 Az31b Az61 Plate Material |
Process: | Wedging, Perforating, Welding, Saw Cutting, Roll Forming | Related: | Magnesium Alloy Plate |
Similar: | Magnesium Alloy Slab | Other: | Magnesium Alloy Billet |
Highlight: | metal sheet plate,magnesium etching plate |
we43-T5 magnesium TOOLING plate From 1″ to 50″ thickness for wedging, perforating, welding, saw cutting, roll forming
Used for:
shearing, stamping, punching, drilling, bending, flame cutting, expanding, swedging, perforating, welding, saw cutting, roll forming, grinding, coating, assembly, packaging, labeling, blanchard grinding, sonic testing & trepanning
Specifications:
Material : Magnesium alloy plate / Magnesium alloy Sheet
Density: 1.78
Coefficient of thermal expansion: 26.8 x 10-6K-1
Specific heat: 1040 Jkg-1k-1
Thermal conductivity: 76.9Wm-1k-1
Electrical resistivity: 92nΩm
Modulus of elasticity: 45 x 109Pa
Poissons ratio: 0.35
Melting range: 566 - 632°C
Applications:
Where is Magnesium used?
Why Magnesium?
Magnesium is the third-most-commonly-used structural metal, following iron and aluminum.
The main applications of magnesium are, in order: component of aluminum alloys, in die-casting (alloyed with zinc), to remove sulfur in the production of iron and steel, the production of titanium in the Kroll process.
Magnesium, in its purest form, can be compared with aluminum, and is strong and light, so it is used in several high-volume part manufacturing applications, including automotive and truck components.
Magnesium sheet and plate find application in medium strength service at temperatures below 150C. Diverse uses including aircraft fuselage, concrete tools, cell phone, camera, notebook computer cases and textile machinery.

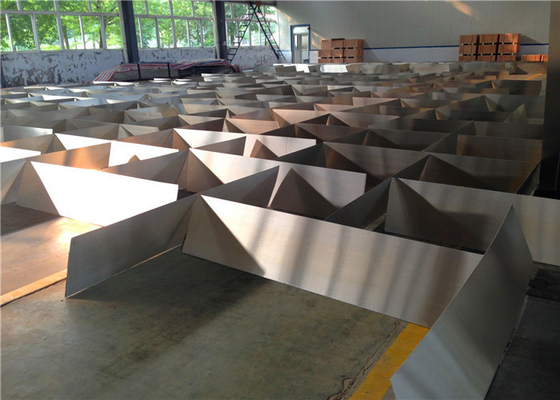

workshop:
Other Products you may have interests:
AZ91D Magnesium plate
WE54 Magnesium plate
WE94 Magnesium plate
ZK60 Magnesium plate
HP Magnesium plate
99.9% Pure Magnesium plate
We supply Magnesium alloy sheet with competitive price and quality.
Alloy | Thickness(mm) | Tensile strength Rm (N/mm²) | Yield strength Rp0.2 (N/mm²) | Elongation (A%) 50mm |
AZ31B | 0.3-3.00 | 260 | 170 | 24.0 |
3.00-10.00 | 230 | 140 | 18.0 | |
M2M | 0.80-3.00 | 190 | 110 | 6.0 |
3.00-5.00 | 180 | 100 | 5.0 | |
5.0-10.00 | 170 | 90 | 5.0 | |
AZ40M | 0.50-3.00 | 280 | 180 | 17.0 |
3.00-5.00 | 260 | 160 | 14.0 | |
AZ41M | 0.80-3.00 | 290 | 190 | 17.0 |
3.00-5.00 | 270 | 170 | 17.0 | |
ME20M | 0.80-3.00 | 250 | 170 | 21.0 |
3.00-10.00 | 220 | 140 | 15.0 |
