| Material: | AZ31B AZ91 ZK60 WE43 WE54 WE94 AM60 | Application: | Magnesium CNC Engraving Plates |
|---|---|---|---|
| Process: | Hot Roll, Extruded,Cast | Quality: | Elektron Same Quality AZ31 Coated Magnesium Thin Metal Plate |
| Usage: | Engraving Magnesium Sheet For Embossing | ||
| Highlight: | metal sheet plate,magnesium etching plate |
||

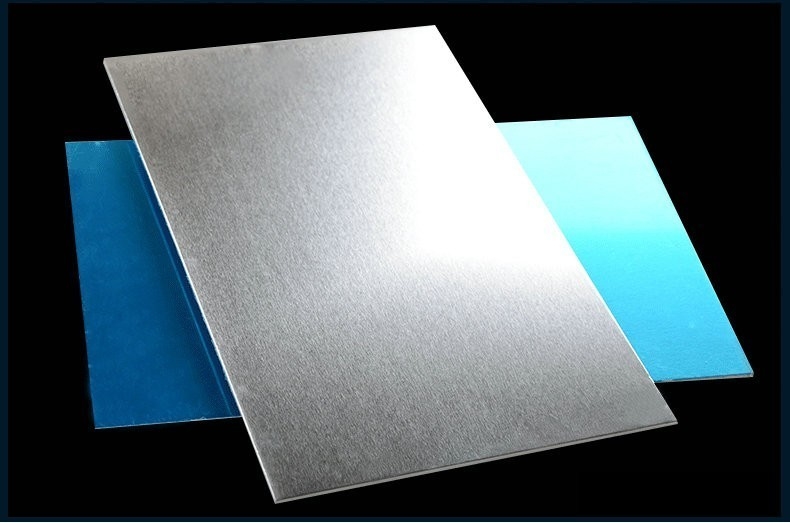

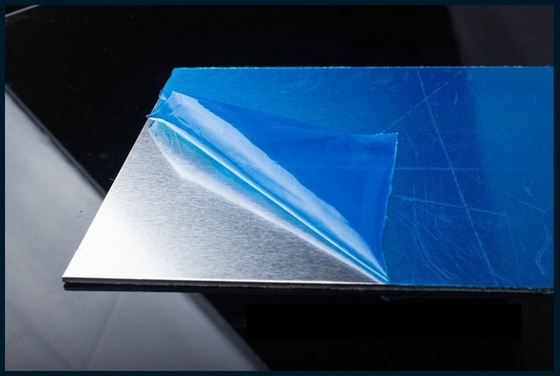

Engraving Magnesium sheet for embossing
Magnesium CNC engraving Plate
Type : AZ31B AZ91D ZK60A AZ61A AZ80A WE43B M1C M1A
Size Range:
| Sheet | hickness from 0.6-180mm |
| width | Max. 460mm |
| length | Max. 600mm |
Appalication: Printing, Foil stanping, Embossing, Flexography, Thermal dies, Rubber stamps.
Advantage : faster, cleaner, user-friendly , quality control ( etching test of each lot goods before out of plant
| Designation | Main Chemical Composition | ||||||
| Al | Mn | Zn | Zr | Y | RE | Mg | |
| AZ31B | 2.5-3.5 | 0.2-1.0 | 0.6-1.4 | - | - | - | Balance |
Mechanical properties of magnesium alloy rolled sheet
| Designation | Operating temp. (℃) | Tensile strength (MPa) | Yield strength (MPa) | Extensibility (%) | Modulus of elasticity (N/mm2) |
| AZ31B | ≤150 | 290 | 220 | 15 | 45 |
AZ31B/AM60/AZ91/ZK60/WE43/WE54 magnesium alloy slab
It is a wrought magnesium base alloy with good room-temperature strength and ductility combined with corrosion resistance and weldability. Increased strength is obtained by strain hardening with a subsequent partial anneal (H24 and H26 tempers).
Magnesium slab/plate/sheetSize Range:
Sheet: thickness from 1mm to 6mm; Max. width is 600mm; Max. length is 6000mm;
Plate: thickness from 6 mm to 200mm; Max. width is 2500mm; Max. length is 6000mm;
Block: We can supply cut-to-size blocks according to customer's requirements.
Coil: thickness from 0.5 to 2.7mm, max. width 240mm;
3.Magnesium slab/plate/sheet Application
Sheet and plate find application in medium strength service at temperatures below 150°C. Diverse uses including aerospace, aircraft, concrete tools, 3C (cell phone / camera / computer), speaker cones and textile machinery can all benefit from light weight AZ31B.
It is non-magnetic and has high electrical and thermal conductivity filling the requirements for RFI and EMI shielding in the electronics and computer industries.
Superplastic forming of AZ31B sheet at elevated temperatures allows production of a wide variety of intricate parts for automotive uses. Monocoque construction utilizing formed sheet can be adapted to many commercial applications.
ASTM B90/B90M-07; AMS 4375; AMS 4376; AMS 4377
CHEMICAL COMPOSITIONs
Al: 2.5-3.5%; Zn: 0.7-1.3%; Mn: 0.20 – 1.0%; Mg: Balance
PHYSICAL PROPERTIES
Density: 1.78;
Melting range: 566 - 632°C
Coefficient of thermal expansion: 26.8 x 10-6K-1
Specific heat: 1040 Jkg-1k-1
Thermal conductivity: 76.9Wm-1k-1
Electrical resistivity: 92nΩm
Modulus of elasticity: 45 x 109Pa;
Poissons ratio: 0.35;
HEAT TREATMENT
No thermal treatment is available for increasing the strength of this alloy after fabrication.
MECHANICAL PROPERTIES
The sheet and plate shall conform to the tensile requirements in above Table unless other agreement is made between seller and purchaser. Mechanical Properties for sizes and tempers not shown in above Table shall be as agreed upon by seller and purchaser.
| Alloy and Temper | Thickness (mm) | Yield Strength 0.2% offset (MPa) | Tensile strength (MPa) | Elongation In 5.65 √A (%) |
| AZ31B-O | 0.5 – 1.5 | 125 | 221 | 10 |
| 1.5 – 6.3 | 105 | 221 | 9 | |
| 6.3 - 75 | 105 | 221 | 8 | |
| AZ31B-H24 | 0.5 – 6.3 | 200 | 269 | 5 |
| 6.3 -9.5 | 179 | 262 | 7 | |
| 9.5 – 12.7 | 165 | 255 | 8 | |
| 12.7 - 25 | 152 | 248 | 8 | |
| 25- 50 | 138 | 234 | 6 | |
| 50 - 80 | 124 | 234 | 7 | |
| AZ31B-H26 | 6.3 - 10 | 186 | 269 | 6 |
| 10 – 12.5 | 179 | 262 | 6 | |
| 12.5 - 20 | 172 | 255 | 5 | |
| 20 – 25 | 159 | 255 | 5 | |
| 25 - 40 | 152 | 241 | 5 | |
| 40 - 50 | 148 | 241 | 5 |
