Product Details:
Payment & Shipping Terms:
|
Product Name: | Aircrafts Marine Vessel Missles | Other Name: | Magnesium Alloy Sheet Az31 Az31b Az61 Plate Material |
---|---|---|---|
Material: | Mg Alloy Sheet | Application: | CNC Engraving,Embossing,Etching,Stamping |
Type: | Hot Roll, Extruded,Cast , Cast & Roll | Surface: | Polished Silver Smooth |
Industrial: | 3C Prodcuts , Computer,Printing,Camera,Cellphone | ||
Highlight: | metal sheet plate,magnesium etching plate |

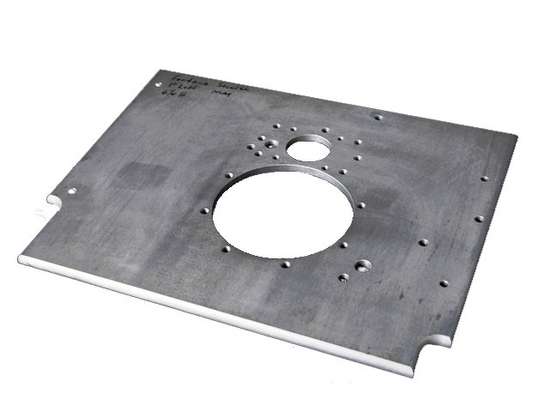

914*610*1.5mm Engraving Magnesium Metal Sheet Plate Polished Silver Smooth Surface

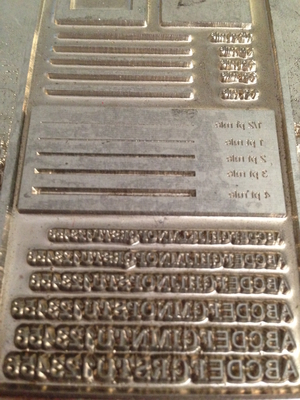

914*610*1.5mm engraving magnesium plate sheet
Grade and Chemical Composition of The Magnesium (Mg) Alloy Sheet
AZ31B | ASTM B 107/B 107M | |||||||||
Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Ca | Others, Total | Mg |
Min % | 2.50 | 0.60 | 0.20 | |||||||
Max % | 3.50 | 1.40 | 1.00 | 0.10 | 0.005 | 0.05 | 0.005 | 0.04 | 0.3 | Bal. |
AZ61A | ASTM B 107/B 107M | ||||||||
Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others, Total | Mg |
Min % | 5.80 | 0.45 | 0.15 | ||||||
Max % | 7.20 | 1.50 | 0.50 | 0.10 | 0.005 | 0.05 | 0.005 | 0.3 | Bal. |
AZ91D | ASTM B 93B | ||||||||
Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others, Total | Mg |
Min % | 8.5 | 0.45 | 0.17 | ||||||
Max % | 9.5 | 0.90 | 0.50 | 0.08 | 0.004 | 0.025 | 0.001 | 0.3 | Bal. |
Since the magnesium alloy has good thermal conductivity and small cutting force, the heat dissipation during processing is very fast, so the tool life is long and the amount of sticking tools is small, which can reduce the tool cost and shorten the downtime required for tool replacement. Because magnesium is easy to cut, its chip breaking performance is very good. Under normal circumstances, only a single finishing process is required to achieve the required final surface finish.
The process of producing magnesium alloy strip by hot-rolled billet and coil method is flexible. It can produce ultra-wide and large-size magnesium strips to meet the needs of various industries. Magnesium alloy machined sheet, used as a vibration part, has a lifetime of 5 times that of aluminum parts.
