Product Name: | AZ31 AZ91 WE43 ZK60 MnE21 Pure Magnesium Alloy Plate/Magnesium Sheet | Application: | CNC Engraving,Embossing,Etching,Stamping |
---|---|---|---|
Plate Type: | Hot Roll, Extruded,Cast | Material: | Magnesium Alloy |
Industrial Plate: | Computer, Printing, Camera, Cellphone | Other Name: | Magnesium Plate/sheet |
Highlight: | metal sheet plate,magnesium etching plate |

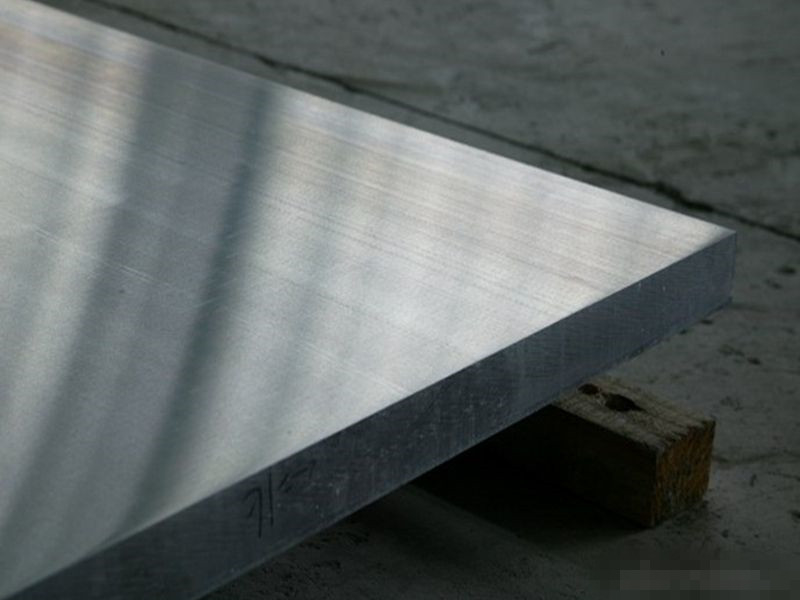

AZ31 AZ91 WE43 ZK60 MnE21 Pure Magnesium alloy plate/Magnesium sheet
We supply Magnesium alloy plate with competitive price and quality.
Alloy | Thickness(mm) | Tensile strength Rm (N/mm²) | Yield strength Rp0.2 (N/mm²) | Elongation (A%) 50mm |
AZ31B | 0.3-3.00 | 260 | 170 | 24.0 |
3.00-10.00 | 230 | 140 | 18.0 | |
M2M | 0.80-3.00 | 190 | 110 | 6.0 |
3.00-5.00 | 180 | 100 | 5.0 | |
5.0-10.00 | 170 | 90 | 5.0 | |
AZ40M | 0.50-3.00 | 280 | 180 | 17.0 |
3.00-5.00 | 260 | 160 | 14.0 | |
AZ41M | 0.80-3.00 | 290 | 190 | 17.0 |
3.00-5.00 | 270 | 170 | 17.0 | |
ME20M | 0.80-3.00 | 250 | 170 | 21.0 |
3.00-10.00 | 220 | 140 | 15.0 |
AZ31B is a wrought magnesium base alloy with good room-temperature strength and ductility combined with corrosion resistance and weldability. Increased strength is obtained by strain hardening with a subsequent partial anneal (H24 and H26 tempers).
SIZE RANGE:
Sheet: thickness from 0.5mm to 7mm; Max. width is 600mm; Max. length is 1200mm;
CHEMICAL COMPOSITION
Al: 2.5-3.5%; Zn: 0.7-1.3%; Mn: 0.20 – 1.0%; Mg: Balance
PHYSICAL PROPERTIES
Density: 1.78
Coefficient of thermal expansion: 26.8 x 10-6K-1
Specific heat: 1040 Jkg-1k-1
Thermal conductivity: 76.9Wm-1k-1
Electrical resistivity: 92nΩm
Modulus of elasticity: 45 x 109Pa
Poissons ratio: 0.35
Melting range: 566 - 632°C
