Product Name: | WE43 WE54 WE94 Cast Or Extruded Billets & Bars,Rolling Plate Of WE43 (high Strength Magnesium Alloys) | Material: | Magnesium Alloy Billet/Bar/Rod/Plate |
---|---|---|---|
Magnesium Type: | ZM61 WE43 WE54 WE94 ZK60 ZM21 ZM31 | Function: | It Can Be Used In Virbration,dust ,high Temperature And Othe Abominable Environments. |
Application: | Alloying | Produce: | Cast |
Highlight: | magnesium alloy barm,magnesium rod |
Commodity :

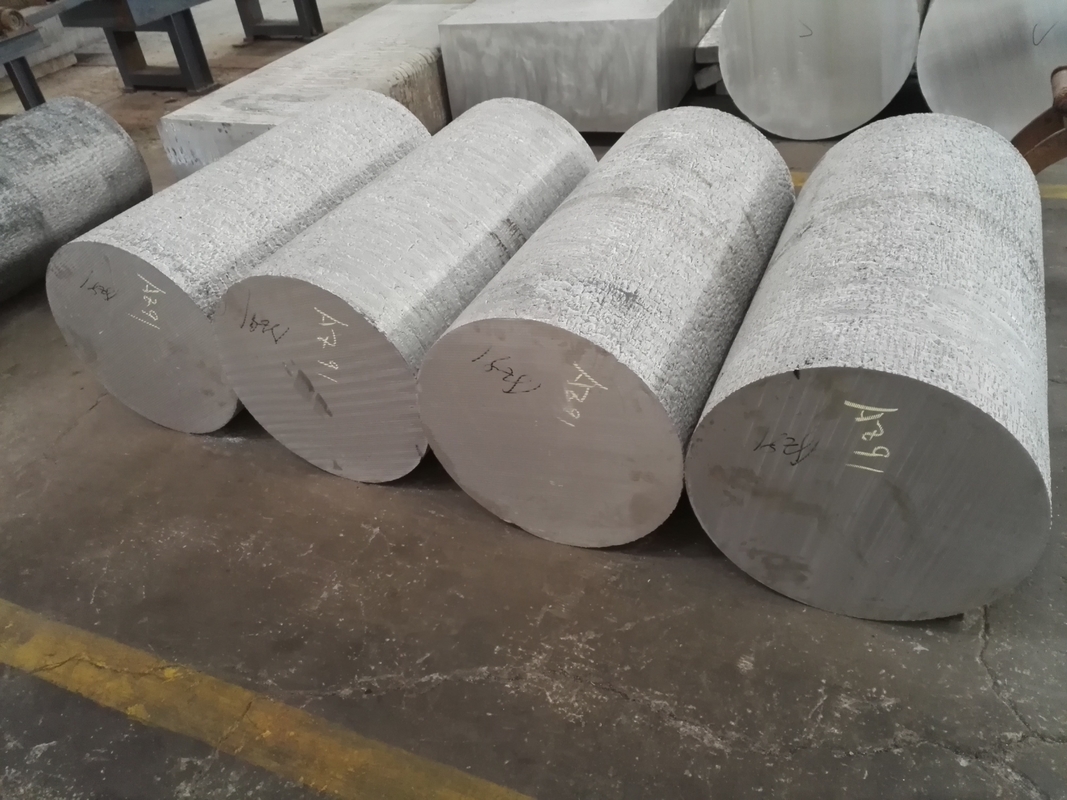

WE43 WE54 WE94 cast or extruded Billets & Bars,Rolling plate of WE43 (high strength magnesium alloys)
Billet diameter range : 60-660mm
Other Regular type: AZ31, AZ91, ZK60,WE43,WE54,WE94,ZM2(ZE41A),AM80 etc.
WE series magnesium alloys are magnesium based with Gadolinium, Yttrium, Zinc and Zirconium. It covers WE43,WE54 and WE94.All those are high strength casting alloys which can be used in temperatures of up to 300oc (572of). The alloys have good mechanical properties coupled with excellent corrosion resistance. The alloys are widely applied in : Helicopter transmissions, power systems, aero-engines, sports cars, missiles.
Specification | Chemical (%) | ||||
Y | Gd | Nd | Zn | Zr | |
WE54 | 4.71-5.5 | 1.0-2.0 | 1.5-2.0 | - | 0.4-1.0 |
WE43 | 3.7-4.3 | 0-1.9 | 2.0-2.5 | - | 0.4-1.0 |
WE94 | 3.5-4.5 | 8.5-9.5 | - | 1-1.5 | 0.4-0.7 |
Specification | Thermal Treatment Status | Tensile Properties | ||
0.25% Proof Stress | Tensile Strength | Elongation % | ||
(Mpa) | (Mpa) | |||
WE43 | T5 | 234 | 306 | 8 |
Specification | Thermal Treatment Status | Tensile Properties | ||
0.25% Proof Stress | Tensile Strength | Elongation % | ||
(Mpa) | (Mpa) | |||
WE54 | T5 | 205 | 280 | 4 |
Specification | Thermal Treatment Status | Tensile Properties | ||
0.25% Proof Stress | Tensile Strength | Elongation % | ||
(Mpa) | (Mpa) | |||
WE94 | T5 | 370 | 450 | 6 |
