Home ProductsMagnesium Billet

Magnesium Rare earth alloy Cast Magnesium Billet MgCe MgY MgLa MgNdCe alloy

Good quality Aluminum Sacrificial Anode for sales
Good products, Nice services. I trust High Broad brand.

—— Sheikh Abdulla

I puchase cathodic protection anodes from High Broad from year 2006. We worked well as best partners.

—— Narrisa Kotsonis

I'm Online Chat Now

Magnesium Rare earth alloy Cast Magnesium Billet MgCe MgY MgLa MgNdCe alloy

China Magnesium Rare earth alloy Cast Magnesium Billet MgCe MgY MgLa MgNdCe alloy supplier
Magnesium Rare earth alloy Cast Magnesium Billet MgCe MgY MgLa MgNdCe alloy supplier Magnesium Rare earth alloy Cast Magnesium Billet MgCe MgY MgLa MgNdCe alloy supplier

Large Image :  Magnesium Rare earth alloy Cast Magnesium Billet MgCe MgY MgLa MgNdCe alloy

Product Details:

Place of Origin: China
Brand Name: High Broad/OEM
Certification: ISO
Model Number: WE

Payment & Shipping Terms:

Minimum Order Quantity: 10 kgs
Price: negotiable

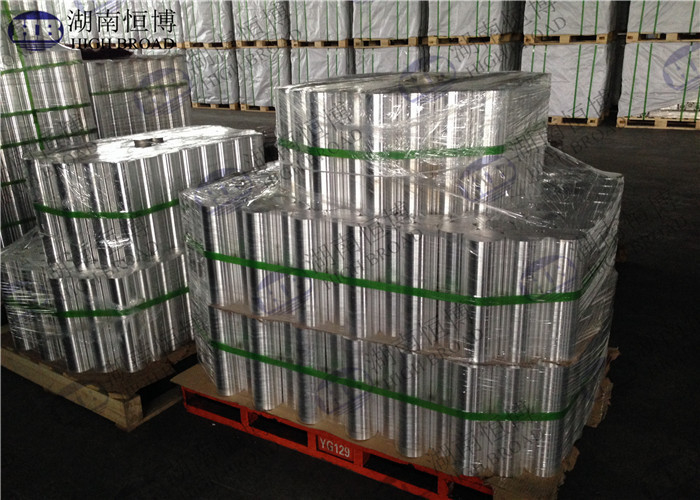

Packaging Details: On wood pallet
Delivery Time: 20 ton: 20 days
Payment Terms: D/P, T/T, L/C, Western Union, MoneyGram,PayPal
Supply Ability: 500mt/month
Detailed Product Description
Cast Billet: Magnesium Rare Earth Alloy Cast Billet MgCe MgY MgLa MgNdCe Alloy Application: Magnesium Alloy Billet
Type: WE94 WE75 WE54 WE43 MgCe MgY MgLa MgNdCe Process: Semicontinuous Casting
Standard: AMS 4427, ASTM B80, And MAM 4427 Inspect: Ultrasonic Testing
Highlight:

magnesium alloy barm

,

magnesium bar

Magnesium Rare earth alloy Cast Billet MgCe MgY MgLa MgNdCe alloy

High strength casting alloy billet WE43 with good mechanical properties ,excellent corrosion resistance

 Magnesium Rare earth alloy Cast Magnesium Billet MgCe MgY MgLa MgNdCe alloy




Heat treatment

Heat treatment of WE43 castings requires the material to be solution treated for 8h at 525°C (977°F). Then air cooled. It can be hot water quenched as well. It can be aged for 16h at 250°C (482°F). After these processes, the material has to be air cooled

Welding

WE43 can be welded using tungsten arc inert gas process. A filler rod of similar composition should be used.

Machining

 WE43 can be easily machined using high powered tools and speed.

Applications



  • Helicopter transmissions
  • Power systems
  • Aeroengines
  • Sports scars
  • Missiles

Add rare earth into magnesium alloy billet to make material reach target performance.

Regular type: ZK60,AZ31,AZ91,ZK60,WE43,WE54,WE94,AM80 etc.

Specification Chemical (%)
Y Gd Nd Zn Zr
WE54 4.71-5.5 1.0-2.0 1.5-2.0 - 0.4-1.0
WE43 3.7-4.3 0-1.9 2.0-2.5 - 0.4-1.0
WE94 3.5-4.5 8.5-9.5 - 1-1.5 0.4-0.7



Specification Thermal Treatment Status Tensile Properties
0.25% Proof Stress Tensile Strength Elongation %
(Mpa) (Mpa)
WE43 T5 234 306 8



Specification Thermal Treatment Status Tensile Properties
0.25% Proof Stress Tensile Strength Elongation %
(Mpa) (Mpa)
WE54 T5 205 280 4



Specification Thermal Treatment Status Tensile Properties
0.25% Proof Stress Tensile Strength Elongation %
(Mpa) (Mpa)
WE94 T5 370 450 6



Company Information

China Hunan High Broad New Material was founded in 2006, focus on the business in advanced new material and service. Including: design, installation, material , engineering, maintenance and technical support.

Our sales office located in Changsha, Hunan province, plant located in Hunan,Shanxi, Henan,Guizhou province.Our business scope including : Cathodic protection products for fresh water and marine anti-corrosion products such as magnesium anodes,Aluminum anodes ,Zinc anodes etc.;Master alloy for aerospace ; Aluminum alloy , Magnesium investment castings industry; Magnesium alloy profile :Extrusion/hot rolled billet, plates,bars etc .for various civil & military industry,such as grade AZ31B,AM80,WE43,ZK60 etc.; high wear-resistance & hardness ceramic products for sandblasting nozzle & bulletproof plate for armor vest, armor vehicle.

Along with strong economic development in China, we expand our business very well, Product capacity is over 5000mt per year.Turnover reach to USD20,000,000.00 per year.

Our Products are widely accepted and recognized by clients worldwide including Europe, North America, East Asia, Middle east etc..

Our R&D department have strong technical design capacity. We closely cooperated with colleges and universities, supply the service for various companies in China and overseas.

Believe we can be your long term and reliable supplier .



Company Principle:

Our Belief: Continuous Innovation.

Our Spirit: Sincerity, Unity, Dedicated, Hardworking.

Our Mission: Provide most advanced products & most professional technical solution.



We also provide various magnesium - rare earth master alloys :



MgSc,MgZr, MgCe,MgLa,MgGd,MgNd,MgMn,MgCa,NiMg,WE43,WE54,MgDy,MgEr,MgY etc.
