Product Name: | Extruded Magnesium Rare Earth WE43 Billet WE43 Plate WE43 Wire | Material: | Magnesium Alloy Billet/Bar/Rod/Plate |
---|---|---|---|
Magnesium Type: | ZM61 WE43 WE54 WE94 ZK60 ZM21 ZM31 | Function: | It Can Be Used In Virbration,dust ,high Temperature And Othe Abominable Environments. |
Application: | Alloying | Produce: | Cast |
Highlight: | magnesium alloy barm,magnesium bar |
Extruded Magnesium Material Rare Earth WE43 Billet Plate Wire Cast Produce
Commodity :

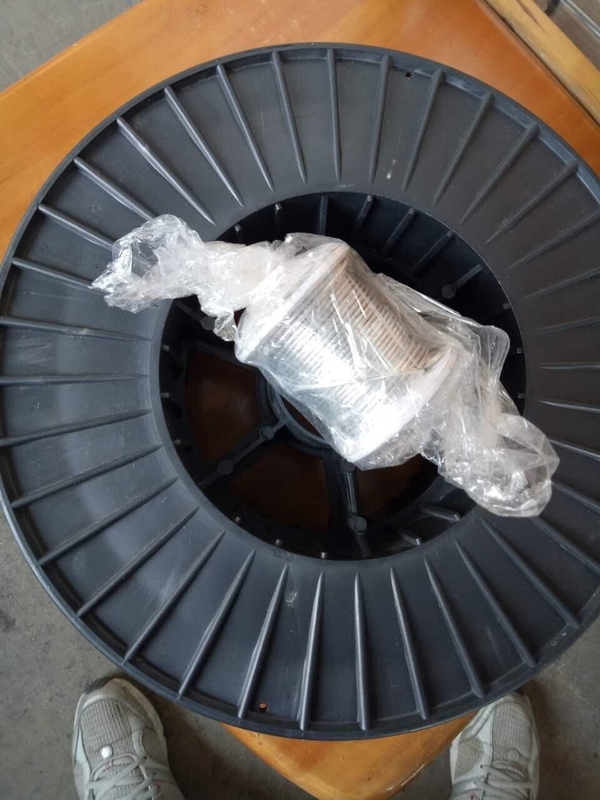

Extruded Magnesium rare earth WE43 Billet WE43 Plate WE43 Wire
Billet diameter range : 60-660mm
Other Regular type: AZ31, AZ91, ZK60,WE43,WE54,WE94,ZM2(ZE41A),AM80 etc.
WE series magnesium alloys are magnesium based with Gadolinium, Yttrium, Zinc and Zirconium. It covers WE43,WE54 and WE94.All those are high strength casting alloys which can be used in temperatures of up to 300oc (572of). The alloys have good mechanical properties coupled with excellent corrosion resistance. The alloys are widely applied in : Helicopter transmissions, power systems, aero-engines, sports cars, missiles.
Specification | Chemical (%) | ||||
Y | Gd | Nd | Zn | Zr | |
WE54 | 4.71-5.5 | 1.0-2.0 | 1.5-2.0 | - | 0.4-1.0 |
WE43 | 3.7-4.3 | 0-1.9 | 2.0-2.5 | - | 0.4-1.0 |
WE94 | 3.5-4.5 | 8.5-9.5 | - | 1-1.5 | 0.4-0.7 |
Specification | Thermal Treatment Status | Tensile Properties | ||
0.25% Proof Stress | Tensile Strength | Elongation % | ||
(Mpa) | (Mpa) | |||
WE43 | T5 | 234 | 306 | 8 |
Specification | Thermal Treatment Status | Tensile Properties | ||
0.25% Proof Stress | Tensile Strength | Elongation % | ||
(Mpa) | (Mpa) | |||
WE54 | T5 | 205 | 280 | 4 |
Specification | Thermal Treatment Status | Tensile Properties | ||
0.25% Proof Stress | Tensile Strength | Elongation % | ||
(Mpa) | (Mpa) | |||
WE94 | T5 | 370 | 450 | 6 |
We can surely produce Magnesium Billet as per your requirements !
Pls contact us for more details !
