Cast Billet: | Homogenized AZ31B Magnesium Alloy Slab Billet Rod Block | Application: | Magnesium Alloy Billet |
---|---|---|---|
Type: | WE94 WE75 WE54 WE43 | Process: | Semicontinuous Casting |
Standard: | AMS 4427, ASTM B80, And MAM 4427 | Inspect: | Ultrasonic Testing |
Highlight: | magnesium rod,magnesium bar |

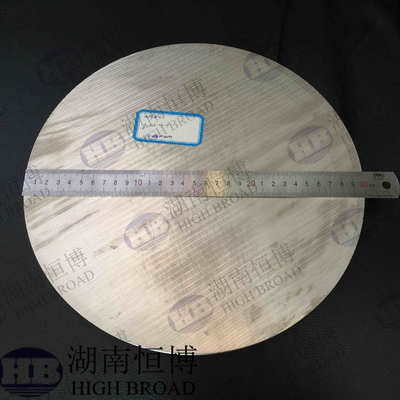

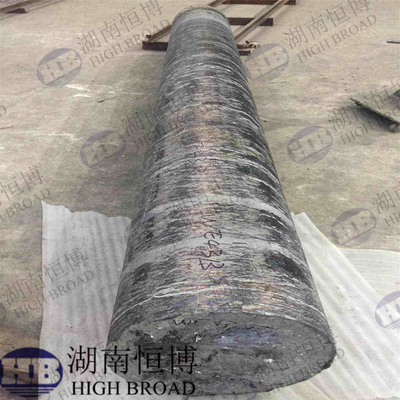

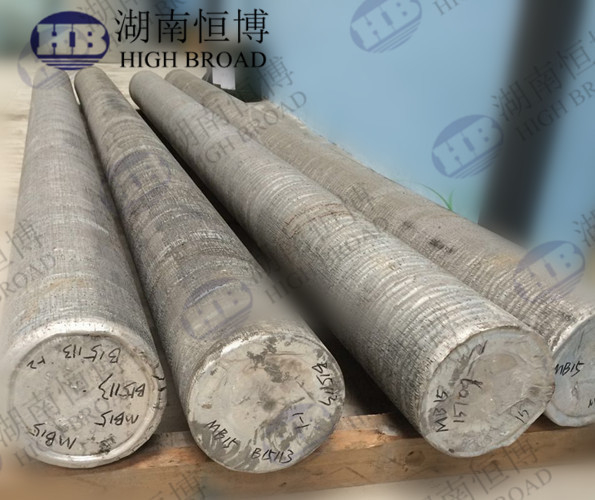

Homogenized AZ31B Magnesium Bar , Magnesium Alloy Slab Billet Rod Block
Grade: AZ31 AZ91 ZK60 WE43 MNE21
Heat treatment of WE43 castings requires the material to be solution treated for 8h at 525°C (977°F). Then air cooled. It can be hot water quenched as well. It can be aged for 16h at 250°C (482°F). After these processes, the material has to be air cooled
WE43 can be welded using tungsten arc inert gas process. A filler rod of similar composition should be used.
WE43 can be easily machined using high powered tools and speed.
The existing 800 tons, 2500 tons and 4,000 tons of extruder, two melting furnace, with an annual output of 100,000 tons of magnesium rods, magnesium alloy products 50,000 tons, reaching an annual output value of more than 5 billion yuan. We can determine the length of the bar product according to the customer's different requirements.
Chemical Composition (%):
Alloys | Al | Zn | Mn | Si max. | Fe max. | Cu max. | Ni max. | Mg |
AZ31B | 2.5-3.5 | 0.6-1.4 | 0.2-1.0 | 0.08 | 0.003 | 0.01 | 0.001 | Bal. |
AZ31S | 2.4-3.6 | 0.5-1.5 | 0.15-0.4 | 0.10 | 0.005 | 0.05 | 0.005 | Bal. |
AZ61A | 5.8-7.2 | 0.4-1.5 | 0.15-0.5 | 0.10 | 0.005 | 0.05 | 0.005 | Bal. |
AZ80A | 7.8-9.2 | 0.2-0.8 | 0.12-0.5 | 0.10 | 0.005 | 0.05 | 0.005 | Bal. |
Note: Custom alloys can be supplied.
Specifications:
Magnesium Cast Billets | Alloys | Sizes | Note |
AZ31B, AZ31S AZ61A, AZ80A AZ91D | max. Length: 236.2” (6000mm) Diameter: from 2.36” to 23.62” (60-500mm) | Can be cut and heated on customer’s requests. |
We also provide various magnesium - rare earth master alloys :
MgSc,MgZr, MgCe,MgLa,MgGd,MgNd,MgMn,MgCa,NiMg,WE43,WE54,MgDy,MgEr,MgY etc.
