Product Details:
Payment & Shipping Terms:
|
| Product Name: | Magnesium Alloy Rare Earth Billet WE43 WE54 WE94 / Dissolved Magnesium Metal Mg Rod | Material: | Magnesium Alloy Billet/Bar/Rod/Plate |
|---|---|---|---|
| Magnesium Type: | ZM61 WE43 WE54 WE94 ZK60 ZM21 ZM31 | Function: | It Can Be Used In Virbration,dust ,high Temperature And Othe Abominable Environments. |
| Application: | Alloying | Produce: | Cast |
| Highlight: | magnesium alloy barm,magnesium rod |
||

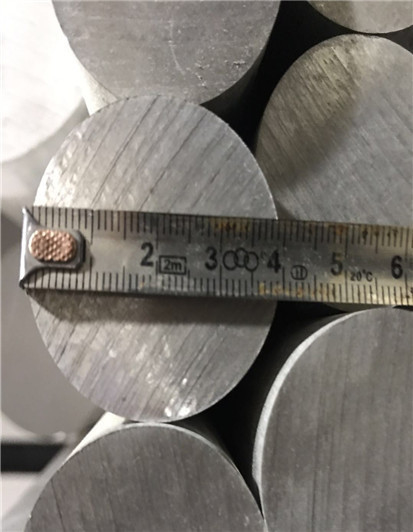

Magnesium alloy rare earth billet WE43 WE54 WE94 / dissolved magnesium metal Mg rod
Magnesium Rod /Billet diameter range : 10-660mm
WE43 is a high strength cast magnesium alloy, the applicable temperature can reach 300 ℃. The alloy at high temperature without the use of silver or thorium can retain its good mechanical properties.
The alloy has long-term exposure to temperatures up to 250 ℃ when the performance is very stable. WE43 has a particularly good corrosion resistance.
Physical properties
Density 1.84
Thermal expansion coefficient of 26.7 × 10-6K-1
Thermal conductivity 51Wm-1K-1
Specific heat 966 Jkg-1K-1
Resistivity of 148 nΩm
Elastic modulus of 45 × 103MPa
Poisson ratio 0.27
The melting range is 540-640 ° C
The damping index is 0.09
WE Series Chemical Contents:
| Specification | Chemical (%) | ||||
| Y | Gd | Nd | Zn | Zr | |
| WE54 | 4.71-5.5 | 1.0-2.0 | 1.5-2.0 | - | 0.4-1.0 |
| WE43 | 3.7-4.3 | 0-1.9 | 2.0-2.5 | - | 0.4-1.0 |
| WE94 | 3.5-4.5 | 8.5-9.5 | - | 1-1.5 | 0.4-0.7 |
WE Series Tensile Properties:
| Specification | Thermal Treatment Status | Tensile Properties | ||
| 0.25% Proof Stress | Tensile Strength | Elongation % | ||
| (Mpa) | (Mpa) | |||
| WE43 | T5 | 234 | 306 | 8 |
| Specification | Thermal Treatment Status | Tensile Properties | ||
| 0.25% Proof Stress | Tensile Strength | Elongation % | ||
| (Mpa) | (Mpa) | |||
| WE54 | T5 | 205 | 280 | 4 |
| Specification | Thermal Treatment Status | Tensile Properties | ||
| 0.25% Proof Stress | Tensile Strength | Elongation % | ||
| (Mpa) | (Mpa) | |||
| WE94 | T5 | 370 | 450 | 6 |
Other Regular type: AZ31, AZ91, ZK60,WE43,WE54,WE94,ZM2(ZE41A),AM80 etc.
Pls contact us for more details !
