Product Details:
Payment & Shipping Terms:
|
| Cast Billet: | Semi-continue Cast Magnesium Billet | Application: | Magnesium Alloy Cast Billet |
|---|---|---|---|
| Type: | AM60B | Process: | Hot Roll, Casting, Extruding Magnesium Alloy |
| Standard: | ASTM B80 | Inspect: | Ultrasonic Testing |
| Key Words: | Magnesium Slab | Cast Mg Billet: | ASTM Standard Magnesium Alloy Billet Slab Bar Rod By Semi Continuous Casting Billet |
| Highlight: | magnesium alloy barm,magnesium rod |
||
Share| Grade | AM60B |
| Al% | 5.6-6.4 |
| Mn%
| 0.26-0.50 |
| Cu%
| 0.008 max |
| Fe%
| 0.004 max |
| Si%
| 0.05 max |
| Zn%
| 0.20 max |
| Ni%
| 0.001 max |
| Others
| 0.01 max |
| Mg
| balance |
Standard:
ASTM B80, AMS 4472 , GB/T19078-2006
Dimensions:
Diameter : 10 - 800mm max
Length : 50 - 8500mm max
Application:
Semi-casting large bar and extruded

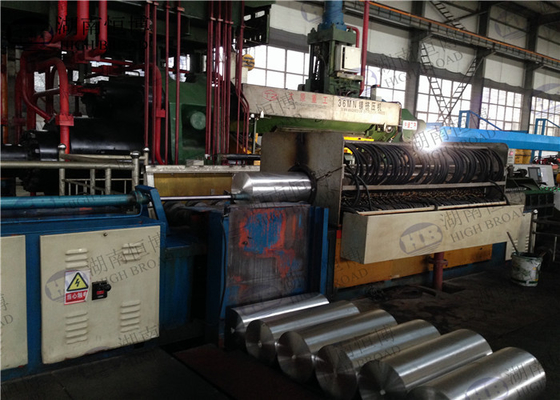

We produce magnesium alloy bar by semi-casting and under around water colder during casting process.Making good grain perfect.So ensuring perfect inner quality without any flaw,slag, hole, burrs or scratches.
Our strength is to provide CUSTOMIZED magnesium alloys according to customers request.
Magnesium alloy can be added various chemical / rare earth elements : Y, La, Ce,Mn, Zr, Gd,Nd,Zn as per requested.
Shape:
Semi continuous Cast billets , Cast bars, Extruded cylinder bars, Extruded Plates, Extruded Tubes
Chemical Composition
| AZ31B | ASTM B 107/B 107M | ||||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Ca | Others,total |
| Min% | 2.50 | 0.60 | 0.20 | ||||||
| Max% | 3.50 | 1.40 | 1.00 | 0.10 | 0.005 | 0.05 | 0.005 | 0.04 | 0.3 |
| ZK60A | ASTM B 107/B 107M | ||
| Elements | Zn | Zr | Others,total |
| Min% | 4.8 | 0.45 | |
| Max% | 6.2 | 0.3 | |
| AZ61A | ASTM B 107/B 107M | |||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others,total |
| Min% | 5.80 | 0.45 | 0.15 | |||||
| Max% | 7.20 | 1.50 | 0.50 | 0.10 | 0.005 | 0.05 | 0.005 | 0.3 |
| AZ80A | ASTM B 107/B 107M | |||||||
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Others,total |
| Min% | 7.80 | 0.20 | 0.12 | |||||
| Max% | 9.20 | 0.80 | 0.50 | 0.10 | 0.005 | 0.05 | 0.005 | |
| M1C | ASTM B 843 | |||||||
| Elements | Al | Si | Mn | Fe | Cu | Ni | Others,each | Others,total |
| Min% | 0.50 | |||||||
| Max% | 0.01 | 0.05 | 1.30 | 0.03 | 0.02 | 0.001 | 0.05 | 0.3 |
We also provide various magnesium - rare earth master alloys :
MgMn,MgCa,NiMg,WE43,WE54,MgDy,MgEr,MgY,MgSc,MgZr, MgCe,MgLa,MgGd,MgNd etc.
