Product Details:
Payment & Shipping Terms:
|
| Product Name: | Magnesium Yttrium Master Alloy MgY20 | Other Name: | MgY20 Alloy |
|---|---|---|---|
| Material: | Magnesium Alloy Y-20 | Application: | Refine Grain,improve Magnesium Product Physical Properties |
| Type: | Cast Alloy | Surface: | Smooth, Silver |
| Shape: | Ingot | Content: | Y,Mg |
| Highlight: | magnesium sacrificial anode,sacrificial anode protection |
||

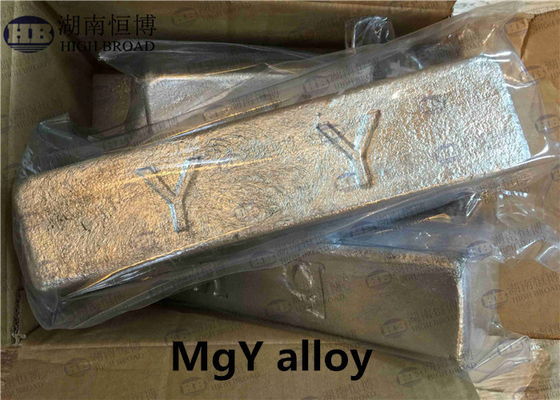

Magnesium Yttrium master alloy MgY20 Rare earth 20% for electronic products, mobile phones, medical and sports equipment
Chemical content: Y 20 % ,Y 25%, Y 30%
Grade : MgY30% : Y 27-31% , Mg Balance ( High Broad Patent)
MgY25%: Y 24-26% , Mg Balance
MgY20%: Y 19-21%, Mg Balance
Application:
1. Refine the grain and restrain the growth of grain in Mg alloy
2. insoluble with Al,Fe,Si.
3. Add temperature : 820℃±50℃.
|
MagnesiumYttrium | Grade | Impurities % wt max | Mg | ||||
| Fe | Si | Cu | Al | Ni | |||
| Y 25% | 0.35 | 0.15 | 0.1 | 0.05 | 0.01 | Balance | |
| Y 30% | 0.35 | 0.15 | 0.1 | 0.05 | 0.01 | Balance | |
Yttrium is one of rare earth elements, at room temperature with a dense hexagonal lattice, at high temperature allotrope change, into a body-centered cubic lattice. The specific gravity of yttrium is 4.457 g / cm ~ 3, the yttrium added to magnesium, the proportion of magnesium increased, not very significant. Magnesium yttrium alloy has a low specific gravity (not more than 1.9 g / cm ~ 3), high strength

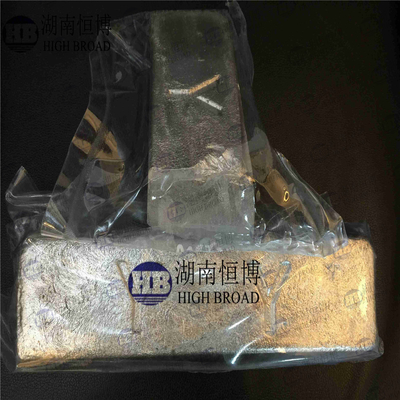

One ingot will be packed In Vacuum plastic bag and then in steel drums sealed with Argon gas.
Steel drums on the pallet
Shipped to Korea, UK, Germany,USA, Canada,Brazil, Chile, Turkey, Japan,Sweden,India,Malaysia etc.
China Hunan High Broad was established in year 2006. We devote ourselves to researching, developing, producing and selling of New Materials. We have a production base with over 1000mt annual capacity of Magnesium base master alloy, aluminum base master alloy, rare earth master alloy,zinc base master alloy, magnesium alloy billet etc., which are widely applied in high-tech field such as aerospace, machine manufacturing, electrommunication etc. Our products are accepted and recognized by clients worldwide including Europe, America, East Asia etc..
Our technical team have leading design and R&D ability, we can supply high quality & stable products, and also provide the technical solution during your producing and processing.
We took a part in many R&D projects in colleges and universities, and started strategic cooperation with many companies in China and overseas.
Believe we are the top choose to become your best partner.
*What is Master alloy?
1.Grain Refiners
Control the structure and dispersion of individual crystals in metals
Improved mechanical strength and soundness of the casting
2.Modifiers
Change micro-structural properties of metal
Increase strength, toughness, ductility, and resultant machinability.
3.Hardeners
Change composition of metal alloys
*I don’t know how to use your products ?
Our professional technical engineer will provide detailed guidance to you.
* I should choose which product ?
Tell us your target material performance, we will provide accordingly master alloy or design a new type alloy especially for you !
*I have alloying production difficulties !
Do not worry ! We will provide professional technical solution to help you overcome problems!
Cerifications:
Magnesium alloy and 3C (computure, communication, Consumer Electronic Products) industry, both to expand the application of magnesium alloy, but also help to achieve the electronic device weight loss, thin-walled, electromagnetic shielding and other needs. At present, the electronic equipment widely used engineering plastics, its density is lower than the magnesium alloy, but its stiffness, heat dissipation, recyclability are not and magnesium alloy. In mobile communications, according to the latest research results, magnesium alloy used in mobile phone casing, can absorb 90% of the radiation. The use of magnesium alloy mobile phone shell only, the electromagnetic compatibility greatly improved, improving the communication quality and reduce the electromagnetic waves on the human body injury. Today, magnesium alloys are widely used in electronic products, mobile phones, medical and sports equipment, leisure products, etc.
