Product Details:
Payment & Shipping Terms:
|
| Material: | Boron Carbide Straight Bore Nozzle With Aluminum Jacket | Thread: | 2",4-1/4 U.N.C. |
|---|---|---|---|
| Type: | Boron Carbide Liner With Aluminum Jacket And Threads Or Flange | Advantage: | High Hardness And Wear Resistance |
| Highlight: | sandblaster nozzle,sand blast nozzle |
||

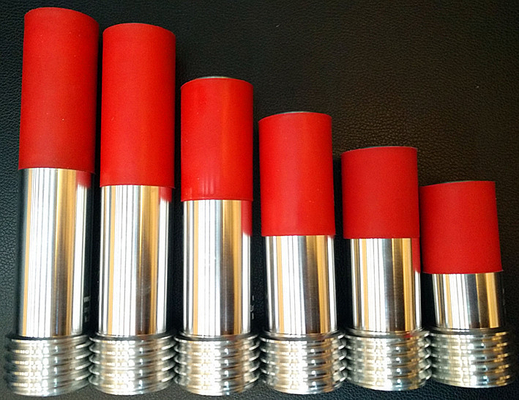

The boron carbide nozzle has an aluminum jacket and 2″ Contractor threads. It is a long venturi nozzle suitable for a wide range of abrasive blasting applications like open open blasting or blast rooms and is designed for cost effectiveness. Each nozzle comes with a washer for quick assembly.
Features:
Straight hole nozzle has the characteristics of a simple structure, only with the converging section and straight section. However, this kind of nozzle also has the problem of the vortex
at the entry area, high pressure loss and low outlet velocity, as lower as 50% of Venturi nozzle.
Boron carbide liner with aluminum jacket and threads or flange
| MODEL NO. | I.D. | O.D. | LENGTH |
| HB-SBS-4 | 1/4" (6.4mm) | 1-5/8" (42mm) | 130mm |
| HB-SBS-5 | 5/16"(7.9mm) | 1-5/8" (42mm) | 150mm |
| HB-SBS-6 | 3/8" (9.5mm) | 1-5/8" (42mm) | 170mm |
| HB-SBS-7 | 7/16"(11.1mm) | 1-5/8" (42mm) | 200mm |
| HB-SBS-8 | 1/2" (12.7mm) | 1-5/8" (42mm) | 210mm |
Straight hole nozzle is usurally used withinthe sand-blasting machines,which have low spray
intensity and narrow closed struture.
(1)High hardness and wear resistance
(2)Heat resistance and corrosion resistance
(3)High quality, lowest price
(4)Long service live
