B4C Boron carbide sandblasting nozzle

Large Image : B4C Boron carbide sandblasting nozzle

Product Details:

Place of Origin:	China
Brand Name:	High Broad
Certification:	ISO
Model Number:	Cleaning

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	negotiable

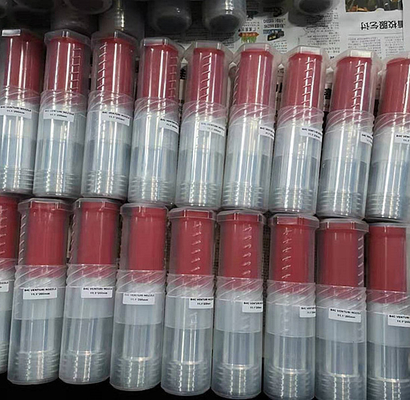

Packaging Details:	Each nozzle packed in a plastic tube, then in a carton
Delivery Time:	10-1000 pieces : 30 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability:	1000 pieces per month

Contact Now

Detailed Product Description

Name:	Ceramic Sandblast Nozzle/Sand Blasting Ceramic Nozzle/Venturi Nozzle	Keyword:	Ceramic Nozzle For Sandblast
Advantage:	Durable & Wearable Boron Carbide Ceramic Sandblasting Gun Nozzles With Pefect Abrasion	Material:	Boron Carbide Ceramic Sandblast Nozzle
Shape:	Straight Core,Ventui Type	Type:	Doule Venturi,single Entrance
Usage:	Sandlbast Machine, Shot Gun,Sandblasting Gun,Spray Water, Cleaning Machine	Thread:	Coarse Thread, Thin Thead, Fine Thread
B4C Nozzle:	Ceramic Nozzle For Sandblast
Highlight:	silicon carbide nozzle , ceramic sandblast nozzle

Boron carbide sandblasting nozzles

High temperature resistance, Abrasion-resistance, light unit weight, working life much longer than tradition material.

Specifications:

Density: 2.40-2.65 g/cm3

Elastic modulus: 510 Gpa

Knoop Hardness: 3300

Flexural strength: 400-650 Mpa

Compressive strength: 4100 Mpa

Fracture toughness: 4.5-7.0 Mpa.m1/2

Coefficient of thermal expansion: 4.5x106

Thermal Conductivity: 29 m0k

Maximum permissible service temperature in air: 1500℃

Regular size list for straight core

Diameter(mm)	Diameter (mm)	Length(mm)
20	4	45
20	6	45
20	8	45
20	10	45

Diameter(mm)	Diameter (mm)	Length(mm)
20	6	60
20	8	60
20	10	60

Diameter(mm)	Diameter (mm)	Length(mm)
20	6	80
20	8	80
20	10	80

Diameter(mm)	Diameter (mm)	Length(mm)
21	8	82
21	10	82
21	12	82

Other sizes:

Diameter(mm)	Diameter (mm)	Length(mm)
15	6	55
15	8	55
25	8	60
25	10	60
25	12	60
30	8	40
30	10	40
30	12	40
30	14	40

B4C Boron carbide sandblasting nozzle

Venturi type:

Coarse thread and Fine thread

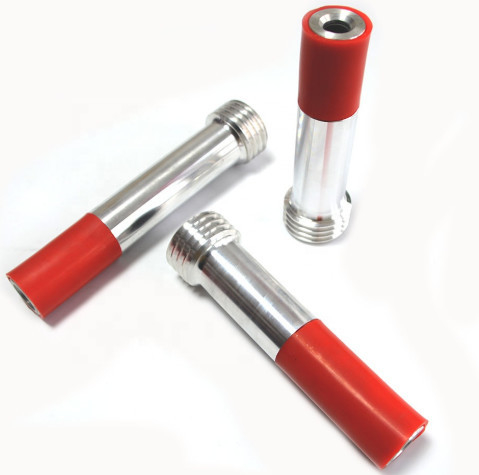

Boron carbide nozzle insert with Aluminum or stainless steel jacket

Entrance width	Entrance depth	Bore	Exit	Length
32	40	6.5	10.5	135
32	45	8.0	12.0	150
32	48	95.	14.0	165
32	52	11.0	15.5	190
32	58	12.5	17.0	215
Entrance width	Entrance depth	Bore	Exit	Length
25	28	6.5	10.5	135
25	35	8.0	12.0	150
25	38	95.	14.0	165
25	42	11.0	15.5	190
25	42	12.5	17.0	215
