| Name: | SIC Armor Ceramic/Silicon Carbide Armor Ceramic | Material: | NIJ Class Level IV Bulletproof Ceramic Body Armor Plate |
|---|---|---|---|
| Type: | Bulletproof Ceramic Plates/SIC Bulletproof Ceramic Plates/ Bulletproof Sic | Use: | NIJ IV Defended Ballistic Bulletproof PlateBulletproof Plate For Ballistic Vest Body Armor Plate NIJ Standard |
| Bulletproof Plate: | NIJ Standard PE Life-protect Ballistic Plate BulletProof Plate | Bulletproof: | High Hardness&density Bulletproof Sic Ballistic Plates |
| Grade: | NIJ III, NIJ IV | B4C Bulletproof Ceramic: | Bulletproof Plate Made By Boron Carbide Material/B4C Bulletproof Ceramic/ballistic Plate/tile |
| Highlight: | bulletproof ceramic plates,ceramic body armor plate |
||
Applications:
► Body Armor Plates
► High-Tech Vehicle Armor Protection and Watercraft defence.
Dimensions:
► Various shapes and qualities customized for applications and threat level
Research and development:
► Sealman has an excellent team of great scientists and experienced technicians, keeping the company at the forefront of ceramic technology. we have a Survivability Centre where our scientists research the latest protective materials. And we cooperated with many universities, research institutions and other R&D facilities, the company is working on the development of new materials to meet for future vehicle and body armor requirements.
Quality assurance:
►All of HIGHBROAD armor ceramics used in finished armor products are tested and proven ballistic performance for National Institute of Justice (N.I..J) and European design standards.

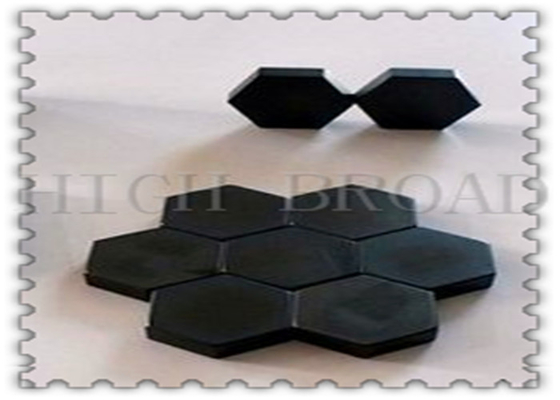

Sintered Silicon Carbide(S-SIC)Bulletproof Tiles
1 Ideal Armor Material
2. Lightweight
3. Hardness
4. All shape customized
Key Features:
♦ Ideal Armor Material in lightweight and performance cost efficient compare with Boron Carbide and Alumina.
♦ Lower weight with higher performance efficient.
♦ It is manufactured by pressureless sintering.or Reaction-Bonding.
Applications:
♦ Body Armor Plates
♦ High-Tech Vehicle Armor Protection and Watercraft defence.
Dimensions:
♦ Various shapes and qualities customized for applications and threat level
Research and development:
♦ HIGH BROAD has an excellent team of great scientists and experienced technicians, keeping the company at the forefront of ceramic technology. we have a Survivability Centre where our scientists research the latest protective materials. And we cooperated with many universities, research institutions and other R&D facilities, the company is working on the development of new materials to meet for future vehicle and body armor requirements.
Quality assurance:
All of HIGH BROAD armor ceramics used in finished armor products are tested and proven ballistic performance for National Institute of Justice (N.I.J) and European design standards.
Specifications:
|
Density: 2.40-2.65 g/cm3 Elastic modulus: 510 Gpa Knoop Hardness: 3300 Flexural strength: 400-650 Mpa Compressive strength: 4100 Mpa Fracture toughness: 4.5-7.0 Mpa.m1/2 Coefficient of thermal expansion: 4.5x106 Thermal Conductivity: 29 m0k Maximum permissible service temperature in air: 1500℃ |
Material Comparation Chart:
|
Item |
Al2O3 |
SiC |
B4C |
|
Density |
3.5g/cm3 |
3.1g/cm3 |
2.4-2.65g/cm3 |
|
Hardness |
HV1650 |
HV2750 |
HV3300 |
|
Flexural strength |
290 Mpa |
380 Mpa |
400-650 Mpa |
|
Compressive strength |
850 Mpa |
3970 Mpa |
4100 Mpa |
|
Fracture toughness |
4.8 Mpa.m1/2 |
4.0 Mpa.m1/2 |
4.5-7.0 Mpa.m1/2 |
|
Thermal Conductivity |
20 m0k |
120m0k |
29 m0k |
|
Coefficient of thermal expansion |
7.2x106 |
4x106 |
4.5x106 |
