SIC Plate , Silicon Carbide Plate Pressureless Sintering Silicon Carbide

China SIC Plate , Silicon Carbide Plate Pressureless Sintering Silicon Carbide supplier
SIC Plate , Silicon Carbide Plate Pressureless Sintering Silicon Carbide supplier SIC Plate , Silicon Carbide Plate Pressureless Sintering Silicon Carbide supplier SIC Plate , Silicon Carbide Plate Pressureless Sintering Silicon Carbide supplier SIC Plate , Silicon Carbide Plate Pressureless Sintering Silicon Carbide supplier SIC Plate , Silicon Carbide Plate Pressureless Sintering Silicon Carbide supplier

Large Image :  SIC Plate , Silicon Carbide Plate Pressureless Sintering Silicon Carbide

Product Details:

Place of Origin: China
Brand Name: high broad
Certification: ISO
Model Number: silicon carbide bulletproof plate

Payment & Shipping Terms:

Minimum Order Quantity: 10 kilograms of silicon carbide bulletproof plate
Price: negotiable
Packaging Details: Packed in cartons
Delivery Time: 10 tons:14Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 100 MT per month
Detailed Product Description
Product Name: SIC Plate, Silicon Carbide Plate, Pressureless Sintering Silicon Carbide, Silicon Carbide Bulletproof Plate Advantage: NIJ IV Police Ceramic Bullet Proof Plate
Use: Ballistic Bulletproof PlateBulletproof Plate For Ballistic Vest Body Armor Plate NIJ Standard Bulletproof Plate: NIJ Standard PE Life-protect Ballistic Plate BulletProof Plate
Application: Heavy Armored Protection In Planes / Vehicles/ships, And High-class Physical Protection.
Highlight:

silicon carbide tiles

,

ceramic body armor plate

SIC Plate, Silicon Carbide Plate, Pressureless Sintering Silicon Carbide, silicon carbide bulletproof plate



SIC Plate , Silicon Carbide Plate Pressureless Sintering Silicon Carbide

1. High temperature tolerance

2. Wear risistance

3. Corrosion resistance

4. High bending strength



Silicon Carbide Bulletproof PLATE, bulletproof ceramic plates features:

Silicon Carbide Plate has superior characteristic such as wear resistance, corrosion resistance,

high temperature tolerance, oxidation resistance, perfect efficiency of sealing, long time service life.





Item Al2O3 SiC B4C
Density 3.5g/cm3 3.1g/cm3 2.4-2.65g/cm3
Hardness HV1650 HV2750 HV3300
Flexural strength 290 Mpa 380 Mpa 400-650 Mpa
Compressive strength 850 Mpa 3970 Mpa 4100 Mpa
Fracture toughness 4.8 Mpa.m1/2 4.0 Mpa.m1/2 4.5-7.0 Mpa.m1/2
Thermal Conductivity 20 m0k 120m0k 29 m0k
Coefficient of thermal expansion 7.2x106 4x106 4.5x106

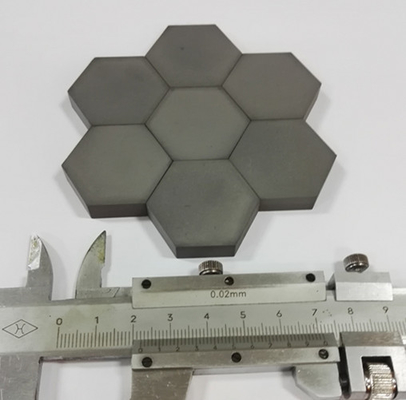

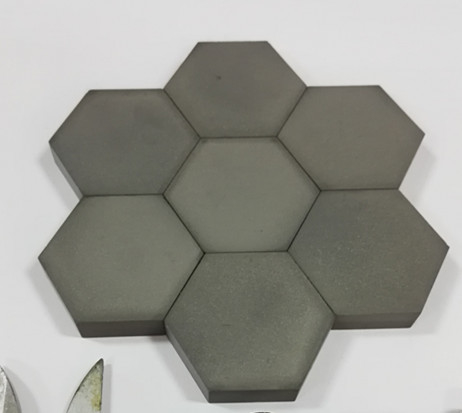

Hexagon shape

SW(mm) T (mm)
20 2
20 3
20 4
20 5
20 6
20 7
20 8
20 9
20 10











Hexagon shape

SW(mm) T (mm)
30 2
30 3
30 4
30 5
30 6
20 7
30 8
30 9
30 10















Hexagon shape

SW(mm) T (mm)
40 2
40 3
40 4
40 5
40 6
40 7
40 8
40 9
40 10
40 20
40 30
40 40
40 50
40 60













Square or Rectangular shape

Width (mm) Length (mm) Thickness (mm)
50 50 2
50 50 3
50 50 4
50 50 5
50 50 6
50 50 7
50 50 8
50 50 9
50 50 10
50 50 20
