Product Details:
Payment & Shipping Terms:
|
| Boron Carbide Bulletproof Plate: | NIJ IV Boron Carbide Ballistic Ceramic Tile | Silicon Carbide Bulletproof Plate: | NIJ IV Silicon Carbide Ballistic Ceramic Tile |
|---|---|---|---|
| NIJ III Bullet Proof Panel Ballistic Plate: | NIJ III Lightweight High Level Bullet Proof Panel Ballistic Plate Single-curve Pure Armored UHMWPE Plate | Bulletproof Plate By Boron Carbide Material: | B4C Bulletproof Ceramic Ballistic Plate And Tile |
| Density: | 2.65 G/cm3 | Grade: | NIJ III, NIJ IV Ballistic Ceramic Tile |
| Hardness: | HV3300 | Sic Ballistic Tiles: | Silicon Carbide Armor Tiles For Ballistic Protection |
| Highlight: | ballistic ceramic tile,bullet proof panel |
||
Boron Carbide plate NIJ IV Bulletproof plate made Sic bulletproof ceramic
Boron Carbide Flakes has superior character,such as wear resistance, corrosion resistance, high temperature tolerance, oxidation resistance, perfect efficiency of sealing, long time servise life.
Advantages:
1. Light weight
2. High hardness
3. Good corrosion resistance
4. High bending strength
Application:
A ideal material for production of body armor, bulletproof armors for vehicles, ships, helicopters,and so on.

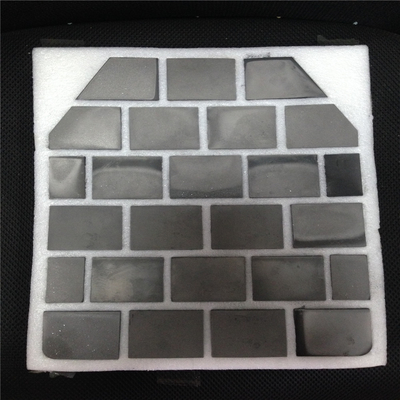

boron carbide ballistic ceramic tiles
Technical Data:
B4C is the most ideal material for making body armor and bulletproof armors, for its light weight, good hardhess and high corrosion resistance.

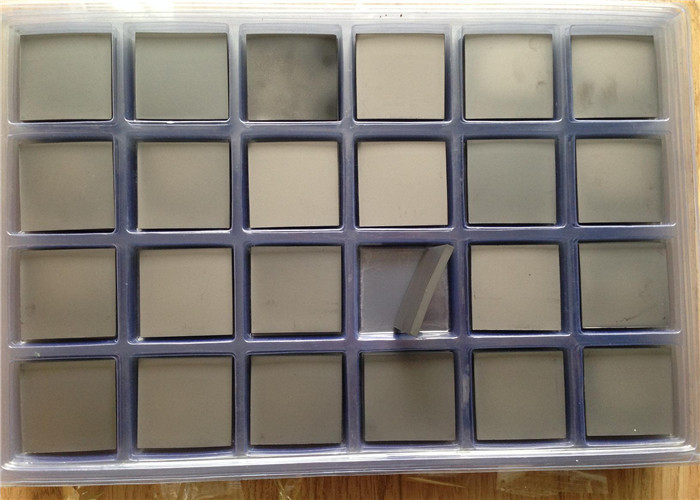

boron carbide ballistic ceramic tiles
Types and Sizes:
Ceramic Ballistic Titles can be made into different sharps, such as hexagon, square, round, and so on. Thickness is available from 4mm to 18mm.
Material Comparation Chart:
| Properties | Units | Silicon Carbide(SiC) | |||
| SSiC | SiSiC | RBSiC | |||
| Mechanical | Density | g/cm3 | >3.1 | >3.02 | 2.6-2.7 |
| Color | ------- | Black | Black | Gray | |
| Water Absorption | % | 0 | 0 | 16% | |
| Vickers Hardness | Gpa | 24 | 23.5 | ------- | |
| Flexural Strength(20°C) | Mpa | 480 | 460 | >100 | |
| Compressive Strength(20°C) | Mpa | 3200 | 2500 | ------- | |
| Thermal | Thermal Conductivity (20°C) | W/m.k | 150 | 125 | 24 |
| Thermal Shock Resistance (20°C) | T(C) | 300 | 400 | ------- | |
| Maximum Use | °C | 1600 | 1380 | 1650 | |
| Electrical | Volume Resistivity (25°C) | Ω.cm | 5x107 | 1 | ------- |
