| Product Name: | NIJ III Lightweight High Level Bullet Proof Panel Ballistic Plate Single-curve Pure Armored UHMWPE Plate | Grade: | NIJ III, NIJ IV, |
|---|---|---|---|
| Application: | Bulletproof, Ballastic Protection | Shape: | Squre,hexongal,rectangular, Round |
| Content: | Silicon Carbide Boron Carbide Maetrial | Other Name: | Bulletproof Ceramic Tiles / Ballistic Ceramic Tiles / Armor Plate |
| Material: | SIC , B4C | ||
| Highlight: | ballistic ceramic tile,Ballistic Armour Plates |
||

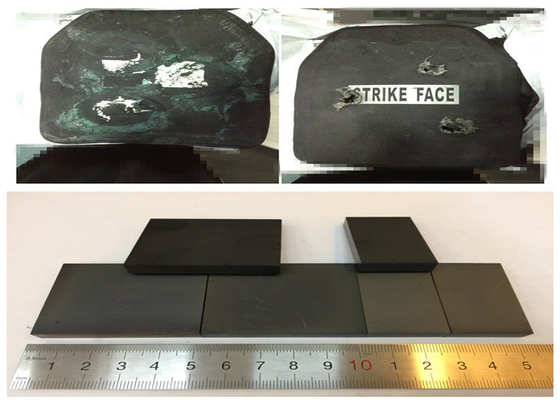

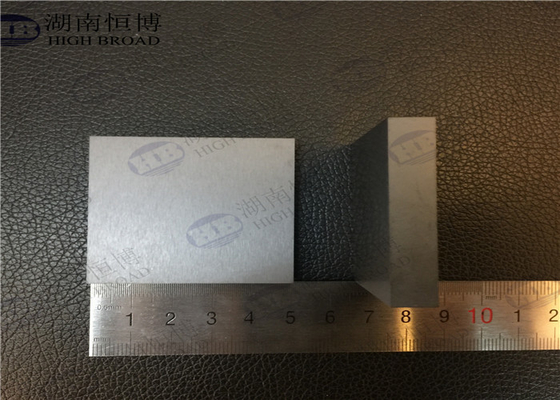

Ballistic ceramic plate Boron carbide / Silicon carbide Ceramic tiles for understanding armor plate
NIJ IV Boron carbide bullet board
Unit weight 2.43kg/piece
Firearms: Type 53 7.62 mm ballistic gun
Ammunition: Type 53 7.62 mm armor-piercing incendiary
Dorsal within 30
Material Comparation Chart:
| Item | Al2O3 | SiC | B4C |
| Density | 3.5g/cm3 | 3.1g/cm3 | 2.4-2.65g/cm3 |
| Hardness | HV1650 | HV2750 | HV3300 |
| Flexural strength | 290 Mpa | 380 Mpa | 400-650 Mpa |
| Compressive strength | 850 Mpa | 3970 Mpa | 4100 Mpa |
| Fracture toughness | 4.8 Mpa.m1/2 | 4.0 Mpa.m1/2 | 4.5-7.0 Mpa.m1/2 |
| Thermal Conductivity | 20 m0k | 120m0k | 29 m0k |
Specifications:
| Density: 2.40-2.65 g/cm3 Elastic modulus: 510 Gpa Knoop Hardness: 3300 Flexural strength: 400-650 Mpa Compressive strength: 4100 Mpa Fracture toughness: 4.5-7.0 Mpa.m1/2 Coefficient of thermal expansion: 4.5x106 Thermal Conductivity: 29 m0k Maximum permissible service temperature in air: 1500℃
|
|
Hexagon shape | Side Width(mm) | Thickness (mm) |
| 20 | 2 | |
| 20 | 3 | |
| 20 | 4 | |
| 20 | 5 | |
| 20 | 6 | |
| 20 | 7 | |
| 20 | 8 | |
| 20 | 9 | |
| 20 | 10 | |
|
Hexagon shape | Side Width(mm) | Thickness (mm) |
| 30 | 2 | |
| 30 | 3 | |
| 30 | 4 | |
| 30 | 5 | |
| 30 | 6 | |
| 20 | 7 | |
| 30 | 8 | |
| 30 | 9 | |
| 30 | 10 |
|
Hexagon shape | Side Width(mm) | Thickness (mm) |
| 40 | 2 | |
| 40 | 3 | |
| 40 | 4 | |
| 40 | 5 | |
| 40 | 6 | |
| 40 | 7 | |
| 40 | 8 | |
| 40 | 9 | |
| 40 | 10 | |
| 40 | 20 | |
| 40 | 30 | |
| 40 | 40 | |
| 40 | 50 | |
| 40 | 60 |
|
Square shape Rectangular shape | Width (mm) | Length (mm) | Thickness (mm) |
| 50 | 50 | 2 | |
| 50 | 50 | 3 | |
| 50 | 50 | 4 | |
| 50 | 50 | 5 | |
| 50 | 50 | 6 | |
| 50 | 50 | 7 | |
| 50 | 50 | 8 | |
| 50 | 50 | 9 | |
| 50 | 50 | 10 | |
| 50 | 50 | 20 |
