Product Details:
Payment & Shipping Terms:
|
| Mg Anode Shape: | NPT | Type: | American Standard |
|---|---|---|---|
| Content: | Mg Water Heater Sacrificial Anode Rod | Environment: | Water, Water Heater, Hot Water |
| Sacificial Anode Standard: | Water Heater Mg Anode | Use: | Storage Tank, Oil Tank, Water Heater, Boiler |
| Highlight: | water heater rod anode,water heater anode rod replacement |
||

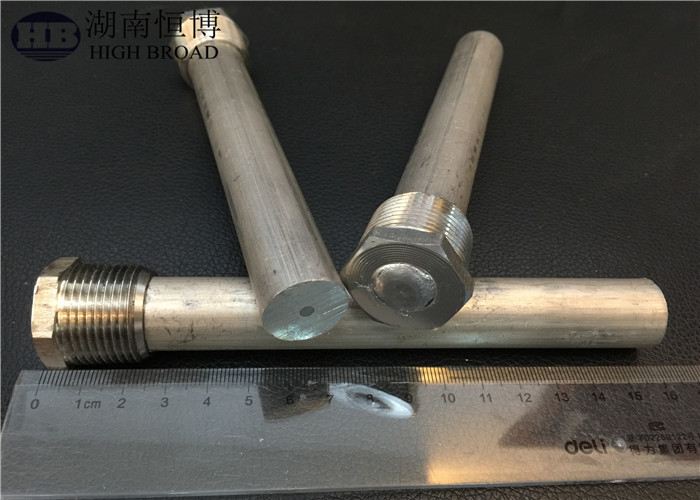

water heater mg anode rod with stainless steel caps NPT threaded
Production standard:
Standard : ASTM G-97
| Chemical compositions mg anode (%) | ||||
| Element | High potential | AZ63B | AZ63C | AZ63D |
| Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
| Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
| Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
| Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
| Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
| Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
| Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
| Others each | 0.05 | --- | -- | --- |
| Others total | 0.30 | 0.30 | 0.30 | 0.30 |
| Mg | Balance | Balance | Balance | Balance |
| Electrochemical Properties of mg anode | ||||
| Item | Open-circuit Voltage | Close-circuit Voltage | Actual capacitance | Current efficiency |
| (-V) | (-V) | (A.h/g) | (%) | |
| High Potential | 1.70-1.75 | 1.57-1.62 | ≥ 1.100 | ≥ 50 |
| Low Potential (AZ63) | 1.50-1.55 | 1.45-1.50 | ≥ 1.105 | ≥ 50 |
| Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE) | ||||
| Rod Diameter | Tolerance | Core Diameter | Straightness | Unit weight |
| inches | inches | inches | inches | lbs/ft |
| 0.500 | -0.020 | 0.135 | 0.060 in 2 ft | 0.180 |
| 0.675 | -0.020 | 0.135 | 0.060 in 2 ft | 0.300 |
| 0.700 | -0.020 | 0.135 | 0.040 in 2 ft | 0.324 |
| 0.750 | -0.020 | 0.135 | 0.040 in 2 ft | 0.372 |
| 0.800 | -0.020 | 0.135 | 0.040 in 2 ft | 0.420 |
| 0.840 | -0.020 | 0.135 | 0.040 in 2 ft | 0.456 |
| 0.900 | -0.020 | 0.135 | 0.040 in 2 ft | 0.516 |
| 1.050 | -0.020 | 0.135 | 0.040 in 2 ft | 0.684 |
| 1.135 | -0.020 | 0.135 | 0.040 in 2 ft | 1.068 |
| 2.000 | +/-0.024 | 0.188 | 0.250 in 10 ft | 2.357 |
Company Introduction:
We are a professional sacrificial anode manufacturer over 16 years :
The goods are sold worldwide includes North America, Middle east ,Asia, South America etc., around 5000mt per year.
The plant owns raw material resources ore, so we can supply very good price with service for you.
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* Magnesium anodes ( ASTM-G97)
* Al-Zn-In anodes (GAIII)
Anodes can be produced with customer's logo!
