| Name: | Magnesium Anode Bar | Material: | Magensium Alloy |
|---|---|---|---|
| Application: | Engine Solar Water Tank Oil Tank Storage Tank Condenser | Ability: | NPT BSP G STEEL Plug |

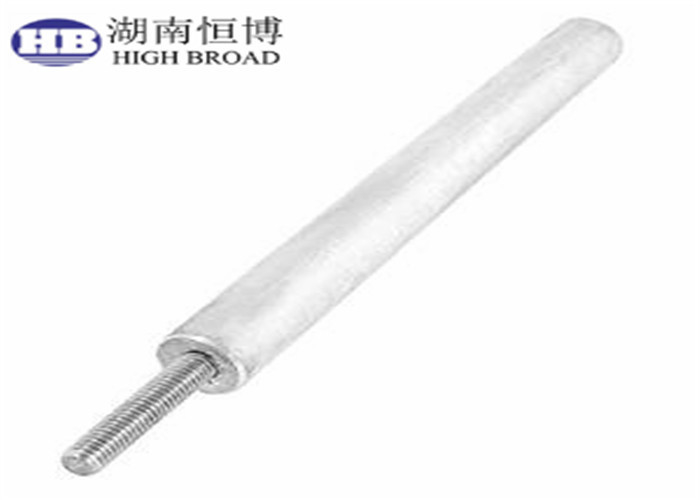

| Type: | Water Heater Magensium Anode Rod 232768 | Anode Bar: | Water Heater 9-1/2" Aluminum Anode Rod With Stainless Steel Plug NPT 3/4" |
| AZ63: | Water Heater Anode | Process: | Casting Or Extruded |
| Chemical Composition: | ASTM B843-M1C; ASTM B843-AZ63B | Shape: | R Type, D Type, S Type |
| Highlight: | water heater anode replacement,water heater anode rod replacement |
||
Magnesium anode rods are the least expensive and create the lowest voltage during the sacrificial process. This means they will usually corrode at a slower rate than the other anode rods we offer. Actual water conditions will vary and have a direct effect on how quickly an anode rod corrodes and dissolves.
Water heater anode rod or sacrificial anode is the important component part with only one purpose to protect metal tank from corrosion.Extruded Alumnium anodes and Magnesium anodes have high current to weight ratio,are suitable to be used in where a small diameter anode is required to give enough cathodic current.
HIGH BROAD supply extruded anodes in both high potential (Mg-Mn alloy),standard potential (AZ31 alloy) and Alumnium Alloy.Our extruded anodes are typically suitable for all kinds of water storage tanks or in prepolarization of offshore structure and so on.
Feature
High purity raw material
rigid process control
automatic production
advanced testing facilities
Specification
| Alloy | AZ31B | Mg-Mn | Aluminum | |
| Chemical Composition | Aluminum | 2.50-3.50% | 0.01% Max | Balance |
| Manganese | 0.20-1.00% | 0.50-1.30% | - - | |
| Zinc | 0.60-1.40% | - - | 4.00-5.00% Max | |
| Calcium | 0.04% Max | - - | - - | |
| Silicon | 0.10% Max | - - | 0.25% Max | |
| Copper | 0.01% Max | 0.02% Max | - - | |
| Nickel | 0.001% Max | 0.001% Max | - - | |
| Fe | 0.005% Max | 0.03% Max | 0.25% Max | |
| Sn | -- | - - | 0.05-0.25% Max | |
| Other purity(each) | -- | 0.05% max | - - | |
| Total purity | 0.30% Max | 0.30% Max | 0.15% Max | |
| Remaining | Magnesium | Magnesium |
| Diameter(inch) | Core eccentric(inch) | Core diameter(inch) | Straightness(inch/2 ft length) | Weight(lbs/inch) |
| Magnesium Extruded rod | ||||
| 0.0675-0.020 | 0.050 | 0.135 | 0.060 | 0.025 |
| 0.750-0.020 | 1/16 | 0.135 | 0.040 | 0.031 |
| 0.800-0.020 | 1/16 | 0.135 | 0.040 | 0.035 |
| 0.840-0.020 | 1/16 | 0.135 | 0.040 | 0.038 |
| 0.900-0.020 | 1/16 | 0.135 | 0.040 | 0.043 |
| 1.050-0.020 | 1/16 | 0.135 | 0.040 | 0.057 |
| 1.315-0.020 | 1/16 | 0.135 | 0.040 | 0.089 |
| Aluminum Extruded rod | ||||
| 0.576-0.020 | 0.050 | 0.135 | 0.060 | 0.038 |
| 0.750-0.020 | 1/16 | 0.135 | 0.050 | 0.048 |
