Cathodic Protection: | Anti-Corrosion,Offshore Project, Bridge,anti Corrosion | Marine Anode: | Zinc Anode For Boat |
---|---|---|---|
Anode Name: | Hi Potention Magnesium Anode Az63 For Cathodic Protection | ASTM Magnesium Anode: | High Potention Sacrificial Cast Magnesium Anodes |
Product Technology: | Casting Magnesium Anode For Cathodic Protection | ASTM Magnesium Soil Anode: | Magnesium Anode Az63 Used In Soil Environment |
Category: | Sacrificial S Type Magnesium Anode For Corrosion Control | Advantage: | AZ63/MgMn High Potention Mg Anode |
C Type Cast Magnesium Anodes: | Corrosion Control C Type Magnesium Alloy Sacrificial Anode | Soil Mg Anode: | Hipotential Magnesium Anode For Soil |
Other Anode: | Aluminum Anode For Ship | ||
Highlight: | sacrificial anode protection,mg anode |

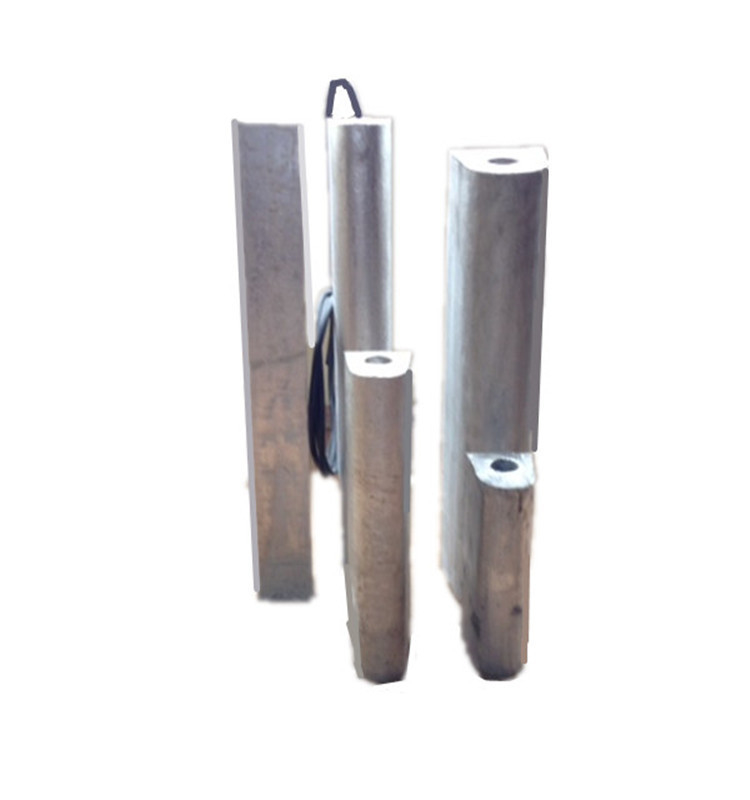

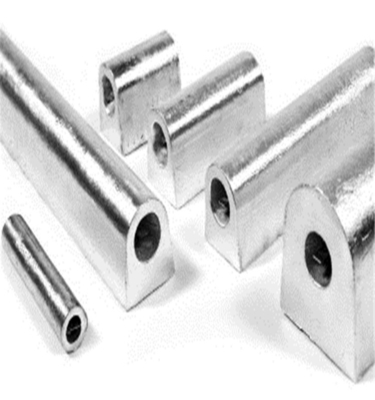

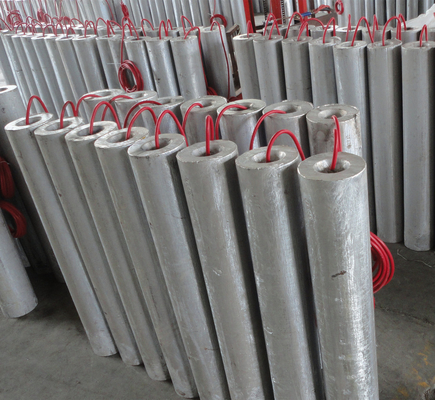

Cast sacrificial magnesium anode
Dimensions
C Type
| Type | Diameter (mm) | Weight | High Potential L(mm) | AZ63 anode L(mm) |
C25 | 75 | 2.56 | 336 | 325 | |
C36 | 114 | 3.70 | 202 | 193 | |
C41 | 114 | 4.20 | 230 | 220 | |
C77 | 110 | 7.80 | 431 | 412 | |
C100 | 110 | 10.20 | 560 | 536 | |
C145 | 146 | 14.70 | 494 | 472 | |
C227 | 178 | 22.90 | 520 | 497 | |
C274 | 114 | 28.20 | 1528 | 1462 |
D Type
| Type | Weight(Kg) | Specification | ||
W(mm) | H(mm) | L(mm) | |||
9D2 | 4.082 | 69.90 | 76.20 | 549.30 | |
14D2 | 6.350 | 69.90 | 76.20 | 850.90 | |
20D2 | 9.072 | 69.90 | 76.20 | 1212.90 | |
9D3 | 4.082 | 88.90 | 95.30 | 352.40 | |
17D3 | 7.711 | 88.90 | 95.30 | 641.40 | |
32D5 | 14.515 | 139.70 | 146.10 | 504.80 | |
48D5 | 21.772 | 139.70 | 146.10 | 765.20 | |
1.5kg | 1.50 | 80.00 | 70.00 | 190.00 | |
2.5kg | 2.50 | 80.00 | 70.00 | 300.00 |
| Type | Weight | Specification | ||
W(mm) | H(mm) | L(mm) | |||
3S3 | 1.4 | 76.20 | 76.20 | 114.30 | |
5S3 | 2.5 | 76.20 | 76.20 | 190.50 | |
9S2 | 4.1 | 50.80 | 50.80 | 685.80 | |
9S3 | 4.1 | 76.20 | 76.20 | 342.90 | |
17S2 | 7.7 | 50.80 | 50.80 | 1295.40 | |
17S3 | 7.7 | 76.20 | 76.20 | 647.70 | |
20S2 | 9.1 | 50.80 | 50.80 | 1524.00 | |
32S3 | 14.5 | 76.20 | 76.20 | 1143.00 | |
32S5 | 14.5 | 127.00 | 127.00 | 533.40 | |
40S3 | 18.1 | 76.20 | 76.00 | 1524.00 | |
48S5 | 21.8 | 127.00 | 127.00 | 787.40 | |
60S4 | 27.2 | 101.60 | 127.00 | 1524.00 |
Chemical Composition
Type | Alloy Element | lmpurity Elements(Max) | ||||||||
Al | Zn | Mn | Mg | Fe | Cu | Ni | Si | Other | ||
Each | Total | |||||||||
MGAZ63B | 5.3-6.7 | 2.5-3.5 | 0.15-0.60 | Balance | 0.003 | 0.01 | 0.001 | 0.08 | _ | 0.30 |
MGAZ31B | 2.7-3.5 | 0.6-1.4 | 0.2-1.0 | Balance | 0.003 | 0.01 | 0.001 | 0.08 | 0.05 | 0.30 |
MGM1C | <0.01 | _ | 0.5-1.3 | Balance | 0.01 | 0.01 | 0.001 | 0.05 | 0.05 | 0.30 |
Electrochemical Performance
Type | Open-Circuit -V(vs Cu/CuSO4) | Current Efficiency %(vs Cu/CuSO4) | Generating Current (A.h)/kg(vs Cu/CuSO4) |
MGAZ63B | 1.57-1.67 | >=55 | >= 1210 |
MGAZ31B | 1.57-1.67 | >= 55 | >= 1210 |
MGM1C | 1.77-1.82 | >= 50 | >= 1100 |
Application:
1) -for above ground storage tank bottoms
2) -for reinforced concrete structures
3) - for under ground storge tank
4) - for fine sand environment
5) - for environment evolution of O2,Cl2 or a combination of both
6) - other by custom design size and dimension
