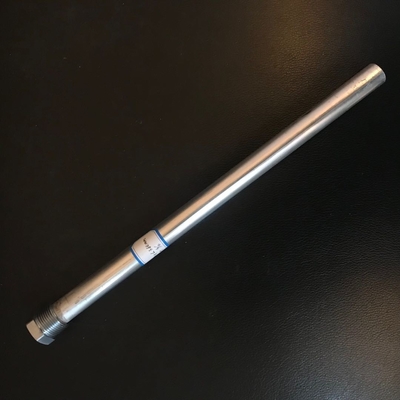

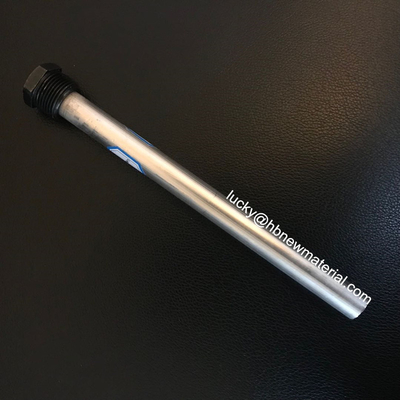

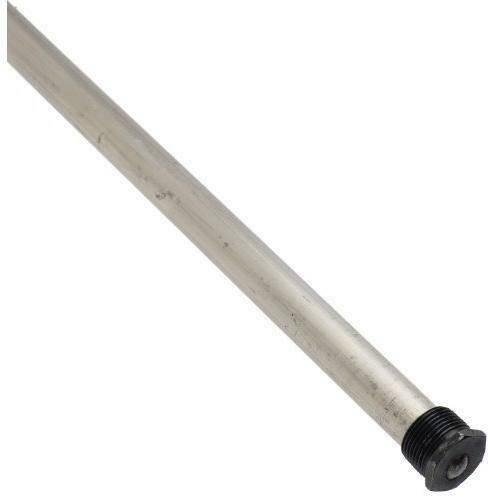

OEM ASTM Extruded Magnesium Anode Rod for waterboiler / heatexchanger / vapourater

China OEM ASTM  Extruded Magnesium Anode Rod for  waterboiler / heatexchanger / vapourater supplier
OEM ASTM  Extruded Magnesium Anode Rod for  waterboiler / heatexchanger / vapourater supplier OEM ASTM  Extruded Magnesium Anode Rod for  waterboiler / heatexchanger / vapourater supplier OEM ASTM  Extruded Magnesium Anode Rod for  waterboiler / heatexchanger / vapourater supplier

Large Image :  OEM ASTM Extruded Magnesium Anode Rod for waterboiler / heatexchanger / vapourater

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: ASTM G-97, ISO, DNV High potential /AZ63C Extruded Magnesium Anode Rod for water heater
Model Number: OEM Custom-made high quality American standard C/D/S shape Mg anode , Zn anode, Al anode for cathodic protection

Payment & Shipping Terms:

Minimum Order Quantity: 10 Kilograms
Price: negotiable
Packaging Details: On pallet with steel bundles
Delivery Time: 1 FCL:14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 300 Metric Ton/Metric Tons per Month
Detailed Product Description
Name: American Standard Extruded Magnesium Anode Rod For Water Heater Type: ASTM Magnesium Anode,Aluminum Anode,Zinc Anode
Application: Water Boiler, Heat Exchanger, Vopourater, Water Container, Etc. Shape: Mg Rod,bar, Cylinder, Square,D Shape,ribbon Etc.
Usage 1: Magnesium Anode For Corrosion Protection Usage 2: Protect Water Heater, Water Containers Of Steel Structure
Usage 3: Protect The Gas Pipeline In-home Service Polarization High Resistance Electrolytes (soil And Water In The Steel Structure)
Highlight:

mg anode

,

magnesium sacrificial anode

OEM ASTM  Extruded Magnesium Anode Rod for  waterboiler / heatexchanger / vapourater



 Extruded Magnesium Anode Rod for Water Heater

Product Introduction:

    Magnesium anodes are used in such systems, most commonly to protect underground gas, oil and water pipelines.



    In addition to pipelines, magnesium anodes are often used to protect propane, water and chemical storage tanks, areas of ships and port facilities that are not in direct contact with sea water, power plants and irrigation systems.

Specifications:

Standard : ASTM G-97

Chemical compositions of cast magnesium anode (%)

Element

High potential

AZ63B

AZ63C

AZ63D

Al

<0.01

5.30-6.70

5.30-6.70

5.0-7.0

Zn

---

2.50-3.50

2.50-3.50

2.0-4.0

Mn

0.5-1.30

0.15-0.70

0.15-0.07

0.15-0.70

Si (max)

0.05

0.10

0.30

0.30

Cu (max)

0.02

0.02

0.05

0.10

Ni (max)

0.001

0.002

0.003

0.003

Fe (max)

0.03

0.005

0.005

0.005

Others each

0.05

---

--

---

Others total

0.30

0.30

0.30

0.30

Mg

Balance

Balance

Balance

Balance



Electrochemical Properties of cast magnesium anodes

Item

Open-circuit Voltage

Close-circuit Voltage

Actual capacitance

Current efficiency



(-V)

(-V)

(A.h/g)

(%)

High Potential

1.70-1.75

1.57-1.62

≥ 1.100

≥ 50

Low Potential

(AZ63)

1.50-1.55

1.45-1.50

≥ 1.105

≥ 50

Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE)

Application:

    The corrosion of metal in salt or fresh water or in soil can be prevented by the use of galvanic anodes in a cathodic protection system.  Magnesium anodes are used in such systems, most commonly to protect underground gas, oil and water pipelines.

Company Brief Introduction:

We are a professional anode supplier over 16 years ,mainly supply:

* Zinc anodes (ASTM B418-95 US MILL 18001K)

* Al-Zn-In anodes (GAIII)

* Magnesium anodes ( ASTM-G97)

* High silicon cast iron anodes ( ASTM-A518-3,BS1591)

     Our anodes are shipped worldwide especial main to North America, Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you.

     We can also accept customized anodes with your logo according to your drawing !
