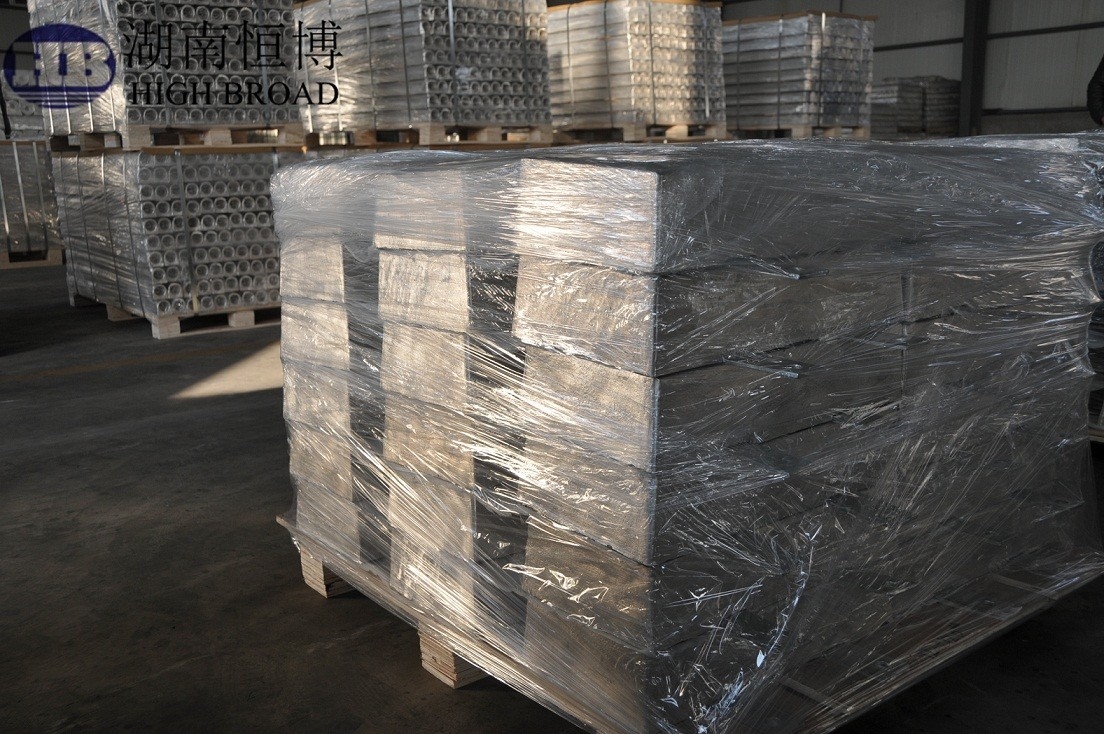

Name: | Magnesium Anode Az63 | Cathodic Protection: | Anti-Corrosion,Offshore Project, Bridge,anti Corrosion |
---|---|---|---|
ASTM , ISO, DNV: | High Potention Sacrificial Cast Magnesium Anodes | Product Technology: | Casting,Extrusion,CNC Machining Magnesium Anode |
Category: | Magnesium Anode For Hulls Of Ships, Barges, Tugs And Boats | Advantage: | Marine Sacrificial Magnesium Anode For Ship |
C Type Cast Magnesium Anodes: | Corrosion Control C Type Magnesium Alloy Sacrificial Anode | ||
Highlight: | sacrificial anode protection,magnesium sacrificial anode |
Chemical Composition
Type | Alloy Element | lmpurity Elements(Max) | ||||||||
Al | Zn | Mn | Mg | Fe | Cu | Ni | Si | Other | ||
Each | Total | |||||||||
MGAZ63B | 5.3-6.7 | 2.5-3.5 | 0.15-0.60 | Balance | 0.003 | 0.01 | 0.001 | 0.08 | _ | 0.30 |
MGAZ31B | 2.7-3.5 | 0.6-1.4 | 0.2-1.0 | Balance | 0.003 | 0.01 | 0.001 | 0.08 | 0.05 | 0.30 |
MGM1C | <0.01 | _ | 0.5-1.3 | Balance | 0.01 | 0.01 | 0.001 | 0.05 | 0.05 | 0.30 |
Electrochemical Performance
Type | Open-Circuit -V(vs Cu/CuSO4) | Current Efficiency %(vs Cu/CuSO4) | Generating Current (A.h)/kg(vs Cu/CuSO4) |
MGAZ63B | 1.57-1.67 | >=55 | >= 1210 |
MGAZ31B | 1.57-1.67 | >= 55 | >= 1210 |
MGM1C | 1.77-1.82 | >= 50 | >= 1100 |
Application:
1) -for above ground storage tank bottoms
2) -for reinforced concrete structures
3) - for under ground storge tank
4) - for fine sand environment
5) - for environment evolution of O2,Cl2 or a combination of both
6) - other by custom design size and dimension
