Extruded Zinc Ribbon Magnesium Anode Pipelines Water Tank Steel Pipe TYPE I TYPE II ASTM Standard

Large Image : Extruded Zinc Ribbon Magnesium Anode Pipelines Water Tank Steel Pipe TYPE I TYPE II ASTM Standard

Product Details:

Place of Origin:	China
Brand Name:	none
Certification:	ASTM Millitary standard, America standard
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	10 Kilograms
Price:	negotiable
Packaging Details:	On pallet with steel bundles
Delivery Time:	1 FCL:14 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability:	300 Metric Ton/Metric Tons per Month

Contact Now

Detailed Product Description

Name:	Zinc Anode RIbbon Shape	Standard:	ASTM B418-88
Application:	Cathodic Protection, Anti-Corrosion,Offshore Project, Bridge,anti Corrosion	Process:	Extruded Roll
Highlight:	mg anode , magnesium sacrificial anode

Name:

Zinc Anode RIbbon Shape

Standard:

ASTM B418-88

Application:

Cathodic Protection, Anti-Corrosion,Offshore Project, Bridge,anti Corrosion

Process:

Extruded Roll

Highlight:

mg anode

magnesium sacrificial anode

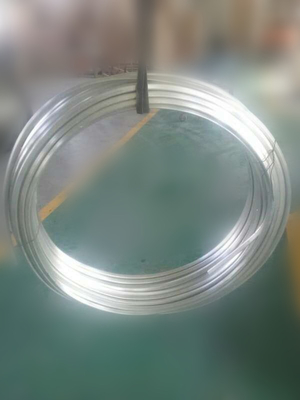

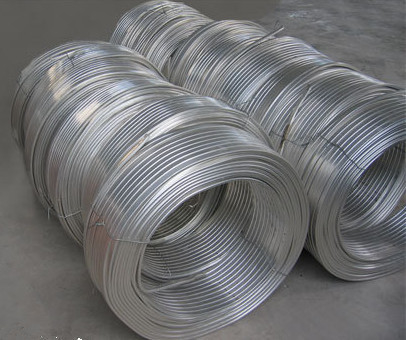

Extruded Zinc ribbon anodes for pipelines,water tank,steel pipe

The cathodic protection of a pipeline in soil is dependent upon the pH of that soil, the soil's electrical resistivity, the surface area of unprotected pipe in that soil, and the type of cathodic protection system installed.

Packed : on pallet

Extruded Zinc Ribbon Magnesium Anode Pipelines Water Tank Steel Pipe TYPE I TYPE II ASTM Standard

Chemical Composition (% max.)	Al	Cd	Fe	Pb	Cu	Zn
TYPE Ⅰ	0.1-0.5	0.02-0.07	0.005	0.006	0.005	Balance
TYPE Ⅱ	0.005	0.003	0.0014	0.003	0.002	Balance
High Purity Zn	0.003	0.002	0.001	0.003	0.001	Balance

Electrochemical properties	TYPE Ⅰ	TYPE Ⅱ	High Purity Zn
Open Circuit Potential (-V)*	1.05 min.	1.10 min.	1.10 min
Closed Circuit Potential (-V)*	1.00 min.	1.00 min.	1.05 min
Current Capacity ( A.h/g)	0.78	0.74	0.74
Current Efficiency (%)	95	90	90

*Cu/CuSO4

Size	Super	Plus	Standard	Small
Cross Section (mm)	25.4 x 31.75	15.88 x 22.23	12.7 x 14.28	8.73 x 10.32
Weight (Kg/m)	3.570	1.785	0.8925	0.372
Diameter of wire core (mm)	4.70	3.43	3.30	2.92
Coil Length Standard (m)	30.5	61	152	305
Packing	Steel banded, random wound open coils	Steel banded, random wound open coils	Wood reels	Wood reels
