Product Details:
Payment & Shipping Terms:
|
| Color: | Silver | Surface: | Smooth |
|---|---|---|---|
| Process: | Casting | Standard: | America Standard |
| Highlight: | sacrificial anode protection,magnesium sacrificial anode |
||

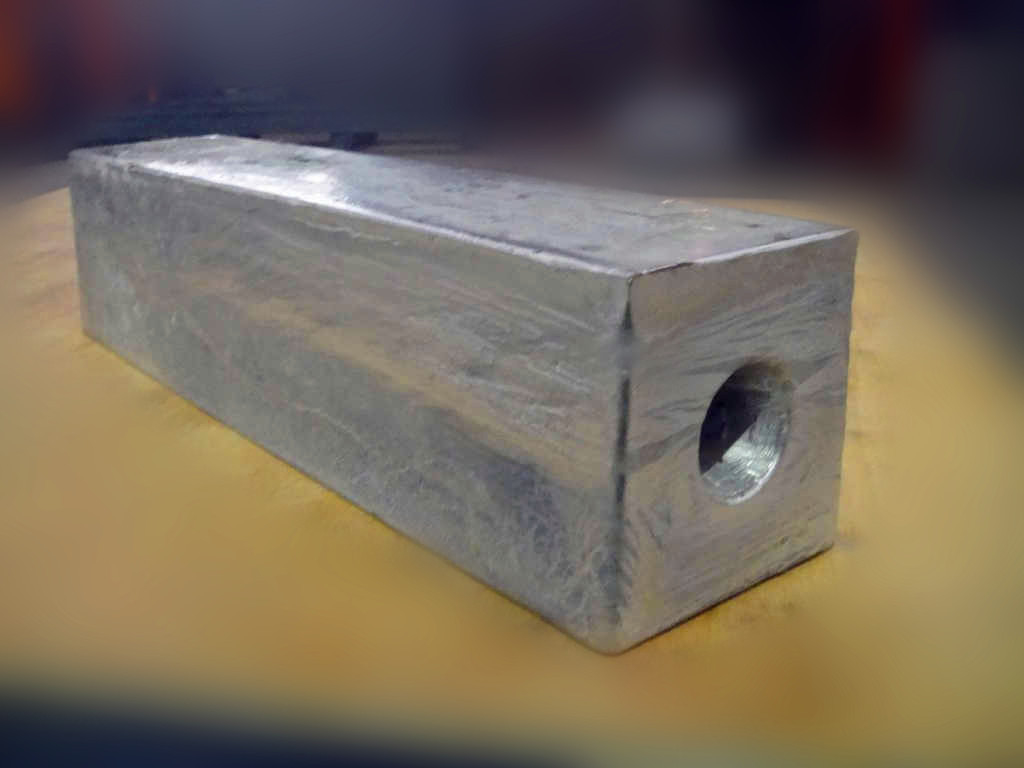

The soil conditions surrounding a buried structure decides the type of anodes used in a cathodic protection system.
In low-resistivity soil under 2,000 ohm-cm, H-1 series of magnesium anodes are an economical choice. Corrpro H-1 anodes are cast to meet American Standard ASTM G97. This unique composition allows for even-current output and efficient protection.

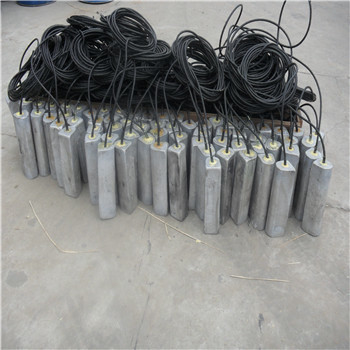

Wires on all anodes are silver soldered and then potted with a sealant to prevent the intrusion of moisture.
Special procedures are also employed in the production of the certified H-1 anodes to ensure long-life performance.
| Content % | |
| Element | Grade A |
| Al | 5.3 - 6.7 |
| Mn | 0.15 min |
| Zn | 2.5 - 3.5 |
| Si | 0.10 max |
| Cu | 0.02 max |
| Ni | 0.002 max |
| Other | 0.30 max |
| Magnesium | Balance |
