Product Details:
Payment & Shipping Terms:
|
Content: | Magnesium Mg | Usage: | Anti-corrosion/Cathodic Protection |
---|---|---|---|
Shape: | D,S ,C Shape | Sacrificial Magnesium: | Sacrificial Magnesium Prepacked Anode |
Material: | Mg Alloy | Unit Weight: | AZ17D3 32D5 |
Highlight: | sacrificial anode protection,mg anode |
Typical Chemical Analysis | |
Aluminum | 5.3 - 6.7% |
---|---|
Zinc | 2.5 - 3.5% |
Manganese | 0.15 - 0.7% |
Silicon | 0.10% max |
Copper | 0.02% max |
Nickel | 0.002% max |
Iron | 0.003% max |
Others | 0.30% max |
Magnesium | Remainder |

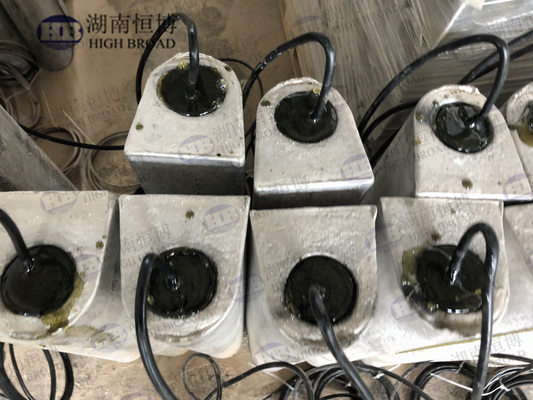

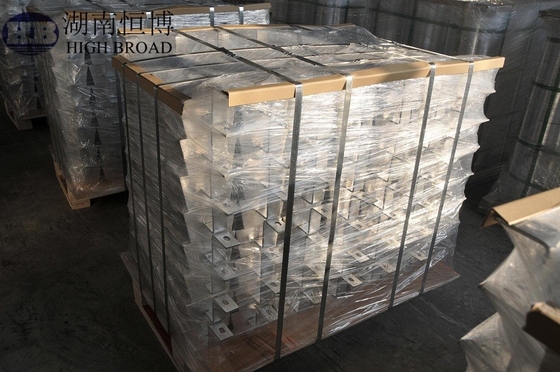

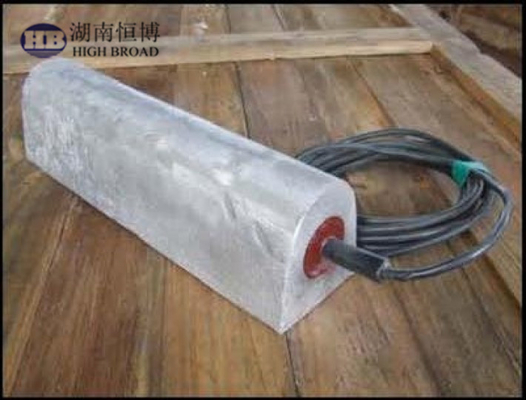

we attach a copper lead wire (size, length and insulation type as specified) to the H-1 anode and seal the connection interface. If required, the H-1 anode will be packaged in a cloth bag with prepared backfill mixture of 75% gypsum, 20% bentonite and 5% sodium sulfate. The backfill mixture works to maintain moisture around the anode and lowers the anode to earth resistance. The packaged anodes are shipped on pallets in plastic bags that must be removed prior to installation.
Standard : ASTM G-97
Chemical compositions of cast magnesium anode (%) | ||||
Element | High potential | AZ63B | AZ63C | AZ63D |
Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
Others each | 0.05 | --- | -- | --- |
Others total | 0.30 | 0.30 | 0.30 | 0.30 |
Mg | Balance | Balance | Balance | Balance |
Electrochemical Properties of cast magnesium anodes | ||||
Item | Open-circuit Voltage | Close-circuit Voltage | Actual capacitance | Current efficiency |
| (-V) | (-V) | (A.h/g) | (%) |
High Potential | 1.70-1.75 | 1.57-1.62 | ≥ 1.100 | ≥ 50 |
Low Potential (AZ63) | 1.50-1.55 | 1.45-1.50 | ≥ 1.105 | ≥ 50 |
Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE) |
In cathodic protection, the most widely used sacrificial anodes are magnesium anodes. When high potential magnesium anodes are required for high current application
Mg anode is manufactured from high purity primary magnesium under strict, state of the art production techniques, anode chemistry, testing and certification
We are a professional anode provider over 16 years ,main Products:
* Magnesium anodes ( ASTM-G97)
* Al-Zn-In anodes (GAIII)
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* High silicon cast iron anodes ( ASTM-A518-3,BS1591)
