Product Details:
Payment & Shipping Terms:
|
Content: | Magnesium Mg | Usage: | Anti-corrosion/Cathodic Protection |
---|---|---|---|
Shape: | D,S ,C | Sacrificial Magnesium: | Sacrificial Magnesium Hull Anode |
Material: | Mg Alloy | Unit Weight: | 17lb, 32 Lb, 60 Lb |
Highlight: | mg anode,magnesium sacrificial anode |
Standard : ASTM G-97
Chemical compositions of cast magnesium anode (%) | ||||
Element | High potential | AZ63B | AZ63C | AZ63D |
Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
Others each | 0.05 | --- | -- | --- |
Others total | 0.30 | 0.30 | 0.30 | 0.30 |
Mg | Balance | Balance | Balance | Balance |
Electrochemical Properties of cast magnesium anodes | ||||
Item | Open-circuit Voltage | Close-circuit Voltage | Actual capacitance | Current efficiency |
| (-V) | (-V) | (A.h/g) | (%) |
High Potential | 1.70-1.75 | 1.57-1.62 | ≥ 1.100 | ≥ 50 |
Low Potential (AZ63) | 1.50-1.55 | 1.45-1.50 | ≥ 1.105 | ≥ 50 |
Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE) |
Typical Applications:

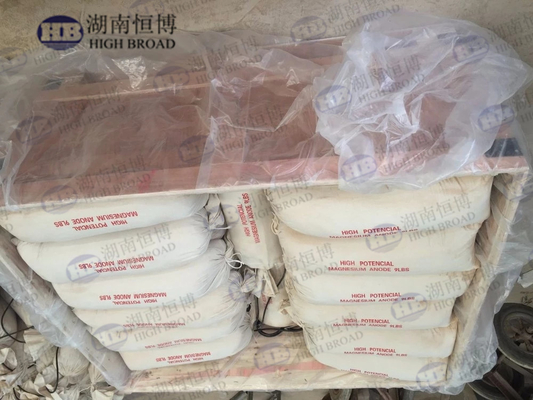

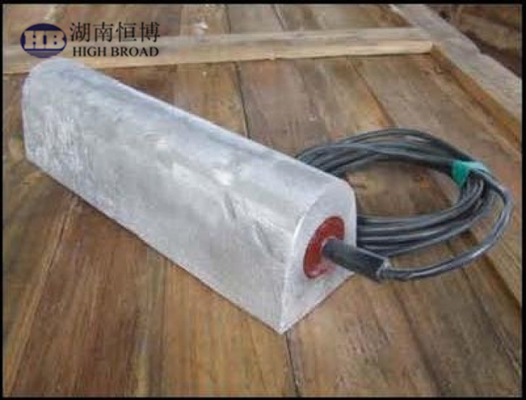

Magnesium anode - prepackaged magnesium anode body
The pre-packaged magnesium anode body is mainly composed of a magnesium anode and a special heat shrinkable sleeve and a cable, and the anode body is filled with a filling material of the required components around the anode body.
The magnesium anode was developed to ensure the quality of the cathodic protection project and simplify the on-site construction procedures. The construction is convenient and fast, and the operation originally carried out at the construction site is completed in the factory, which effectively ensures the construction and installation quality of the anode bed.
We are a professional anode provider over 16 years ,main Products:
* Magnesium anodes ( ASTM-G97)
* Al-Zn-In anodes (GAIII)
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* High silicon cast iron anodes ( ASTM-A518-3,BS1591)
