Extruded Magnesium anode rod for water heater AZ31 & AZ63 customized service

Good quality Aluminum Sacrificial Anode for sales
Good products, Nice services. I trust High Broad brand.

—— Sheikh Abdulla

I puchase cathodic protection anodes from High Broad from year 2006. We worked well as best partners.

—— Narrisa Kotsonis

I'm Online Chat Now

Extruded Magnesium anode rod for water heater AZ31 & AZ63 customized service

China Extruded Magnesium anode rod for water heater AZ31 & AZ63 customized service supplier
Extruded Magnesium anode rod for water heater AZ31 & AZ63 customized service supplier Extruded Magnesium anode rod for water heater AZ31 & AZ63 customized service supplier Extruded Magnesium anode rod for water heater AZ31 & AZ63 customized service supplier Extruded Magnesium anode rod for water heater AZ31 & AZ63 customized service supplier Extruded Magnesium anode rod for water heater AZ31 & AZ63 customized service supplier

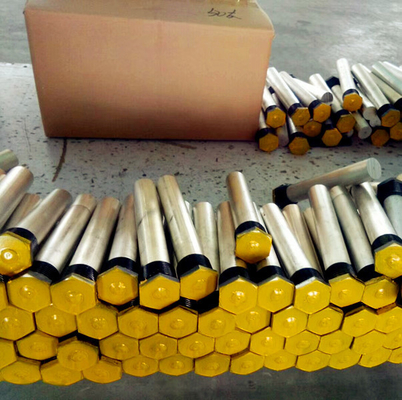

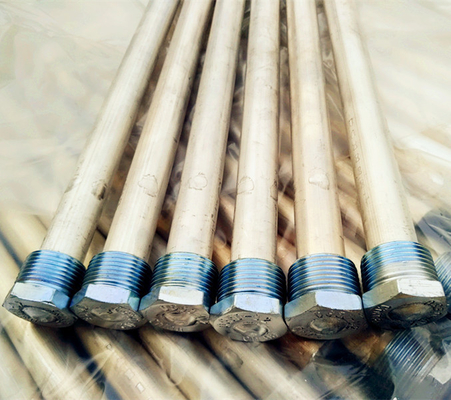

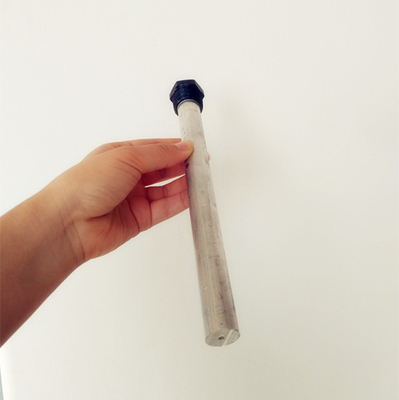

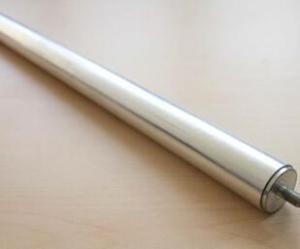

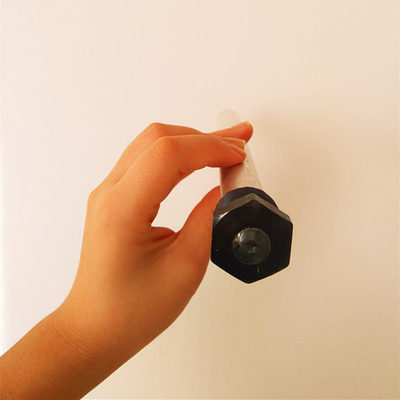

Large Image :  Extruded Magnesium anode rod for water heater AZ31 & AZ63 customized service

Product Details:

Place of Origin: China
Brand Name: highbroad1@vip.163.com
Certification: ISO
Model Number: ASTM B 843-1995

Payment & Shipping Terms:

Minimum Order Quantity: 100 KGS
Price: negotiable
Packaging Details: Anode rod on pallet with steel bundles
Delivery Time: 3-14 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal,Credit Card
Supply Ability: 5000 tons/year
Detailed Product Description
Material: ASTM B 843-1995 Magnesium Anode For Water Heater Usage: Magnesium Anode Rod For Water Heater
Mg Anode Rod Application: Protect Water Heater, Water Containers Of Steel Structure Magnesium Anode Magnesium Anode Used In: Soil And Water In The Steel Structure
Soil And Water In The Steel Structure: Protect The Gas Pipeline In-home Service Polarization High Resistance Electrolytes Type: Anode Rod For Water Heater Az63/az31
Anticorrosion: Anticorrosion Of Steel And Iron Structure Where High Resistant And Electrolyte(soil And Water) Existed Process: Extruded Magnesium Anode Rod For Water Heater
Highlight:

sacrificial anode protection

,

mg anode

1. Magnesium anode for water heater (soil and water in the steel structure)



2. Standard:



ASTM B 843-1995



3. Application:



Water Heater,Water container,Pre-polarization of steel structure in seawater,Gas pipe,Anticorrosion of steel and iron structure where high resistant and electrolyte(soil and water) existed.



4. Chemical Composition



Type Alloy Element Impurity Elements(Max)
Al Zn Mn Mg Fe Cu Ni Si Other
Each Total
MGAZ63B 5.3-6.7 2.5-3.5 0.15-0.60 Balance 0.003 0.01 0.001 0.08 _ 0.30
MGAZ31B 2.7-3.5 0.6-1.4 0.2-1.0 Balance 0.003 0.01 0.001 0.08 0.05 0.30



5. Dimensions



Anode Dia(mm) Core Dia(mm) Screw Unit weight(g/cm)
φ13.97 Φ2.0 NPE-ASMT/BSP/G/R 2.83
Φ19.05 Φ3.4 NPE-ASMT/BSP/G/R 5.66
Φ21.34 Φ3.4 NPE-ASMT/BSP/G/R 6.85
Φ26.67 Φ3.4 NPE-ASMT/BSP/G/R 10.42
Φ33.40 Φ3.4 NPE-ASMT/BSP/G/R 16.08
Φ39.65 Φ4.8 NPE-ASMT/BSP/G/R 23.07
Φ51.40 Φ4.8 NPE-ASMT/BSP/G/R 37.96
*Customized Size Available

magnesium anode



Advantages

(1)Corrosion protection magnesium anode

(2)protect water heater, water containers of steel structure magnesium anode

(3)protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)
