Magnesium hull anode Magnesium Tank anti corrosion high potential

China Magnesium hull anode Magnesium Tank anti corrosion high potential supplier
Magnesium hull anode Magnesium Tank anti corrosion high potential supplier Magnesium hull anode Magnesium Tank anti corrosion high potential supplier Magnesium hull anode Magnesium Tank anti corrosion high potential supplier Magnesium hull anode Magnesium Tank anti corrosion high potential supplier Magnesium hull anode Magnesium Tank anti corrosion high potential supplier

Large Image :  Magnesium hull anode Magnesium Tank anti corrosion high potential

Product Details:

Place of Origin: China Magnesium Tank Sacrificial Anode manufacture
Brand Name: HB Magnesium Tank Sacrificial Anode
Certification: DNV Magnesium Tank Sacrificial Anode
Model Number: magnesium hull anode

Payment & Shipping Terms:

Minimum Order Quantity: 1 kg
Price: negotiable
Packaging Details: On pallet with steel bundles
Delivery Time: 1 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal,Credit Card
Supply Ability: 5000 tons/year
Detailed Product Description
Mg Andoe: Magnesium Hull Anode Magnesium Sacrificial Anode For Cathodic Protection Anti Corrosion ASTM G97 Extruded Magnesium Ribbon Anode: HP Extruded Magnesium Ribbon Anode For Buries Structures
Magnesium Anode: Extruded Magnesium Ribbon Anode Hp Magnesium Anode: Magnesium Anode With Factory Price
Magnesium Anode Used In: The River Seine In Paris Fresh Water Magnesium Anode Things To Protect: One Steel Hull Of A Boat Of 21 Meters Length
Anode Manufacture: High Potential Magnesium Anode Manufacture Anode Factory: Low Potential Magnesium Anode Manufacture
OEM SACRIFICIAL ANODE: Magnesium Tank Sacrificial Anode Magnesium Extruded Anode: HP Extruded Magnesium Ribbon Anode For Buries Structures
Highlight:

sacrificial anode protection

,

mg anode

Magnesium anodes are used in many different applications such as tank interiors, vessel etc. These anodes are produced in a number of shapes, weights and configurations to meet cust-omer requirements



Specifications
• Item name: Magnesium sacrificial anode
• The advantage: AZ63, High Potential (Mg-Mn) The best quality and best price
• Raw materials: AZ31series,AZ63series and so on
The characteristic of sacrificial anode magnesium
1.High electrochemistry performance
2.Average anode consuming
3.Long using time
4.High unit power output
Application field
1.Corrosion protection for Electric water heater
2.Oil transportation and gas transmission in underground and fresh water
3.Line pipe for draining away water
4.Underground cable
5.Chemical industry
6.Communication
7.Dock and harbour
8.Boats and ships
9.Reservoir gate

Chemical Composition

Shop sign Alloy element Impurity element ,less than
Al Zn Mn Mg Fe Cu Ni Si Ca
AZ63 5.3-6.7 2.5-3.5 0.15-0.60 Balance 0.005 0.02 0.001 0.08
High Potential ≤ 0.05


≤ 0.03

1.20-2.0 Balance 0.005 0.02 0.001 0.08 0.04
MGM1C ≤0.01 0.50-1.3 Balance 0.01 0.01 0.001 0.05
MG ≤0.02 ≤0.03 ≤0.01 ≥99.9% 0.005 0.004 0.001 0.01


Electrochemical Property

Shop sign Open circuit potential


Closed circuit potential



Actual capacitance Current efficiency
—V,Cu/CuSO4 —V,Cu/CuSO4 —(A·h/kg) %
MGAZ63B 1.57-1.67 1.52-1.57 ≥1210 ≥55


High Potential

1.57-1.67 1.47-1.57 ≥1210 ≥55
MGM1C 1.77-1.82 1.64-1.69 ≥1100 ≥50

Magnesium hull anode Magnesium Tank anti corrosion high potentialMagnesium hull anode Magnesium Tank anti corrosion high potentialMagnesium hull anode Magnesium Tank anti corrosion high potentialMagnesium hull anode Magnesium Tank anti corrosion high potential





Specifications

Magnesium Anode for tank cathodic protection.

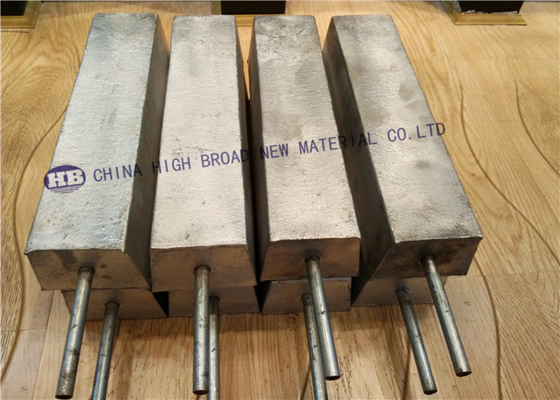

Primarily designed for tank interiors, tank anodes utilize a longitudinal steel strap core for bolting or welding to the steel surface.



Chemical Component

Type Chemical Component
Alloy element Impurity not more than
Al Zn Mn Mg Fe Cu Ni Si
MGAZ1 5.3-6.7 2.5-3.5 0.15-0.6 balance 0.005 0.01 0.001 0.05
MGAZ2 2.7-3.5 0.7-1.3 0.15-0.6 balance 0.005 0.01 0.001 0.05
MGM <0.05 <0.03 1.2-2.0 balance 0.005 0.02 0.001 0.05
MG <0.02 <0.03 <0.01 >99.9 0.005 0.004 0.001 0.01



Electrochemical Performance

Type open circuit potential current efficiency Producing electricity
-V·Min %·Min (A·h)/g·Min

3%NaCl Solution

3mA/cm2

Soil

0.03mA/ cm2

3%NaCl Solution

3mA/ cm2

Soil

0.03mA/ cm2

3%NaCl Solution

3mA/ cm2

Soil

0.03mA/ cm2

MGAZ1 1.55 1.50 55 50 1.20 1.10
MGAZ2 1.60 1.55 60 55 1.30 1.20
MGM 1.60 1.55 55 50 1.20 1.10
MG 1.65 1.60 50 45 1.10 1.00



The common type of underground pipe line, the outerwall of storage tank and other underground metal structure

Type Specification L*(upper+down)*H (kg) Weight
MG-22 700×(130+150)×125 22.0
MG-14 700×(100+110)×105 14.0
MG-11 700×(90+100)×90 11.0
MG-8 700×(75+85)×80 8.0
MG-4 700×(55+60)×55 4.0
MG-2 350×(55+60)×55 2.0



Application

Corrosion protection for

Electric water heater

Oil transportation and gas transmission in underground and fresh water

Line pipe for draining away water

Underground cable

Chemical industry

Communication

Dock and harbour

Boats and ships

Reservoir gate.

OEM Magnesium Tank Sacrificial Anode

About Us

ISO9001: 2008, SGS, DNV GL standardize corporate.



♥More than 20 years of experience in producing anode.



♥First class product, excellent quality, best service, competitive price and prompt delivery time.

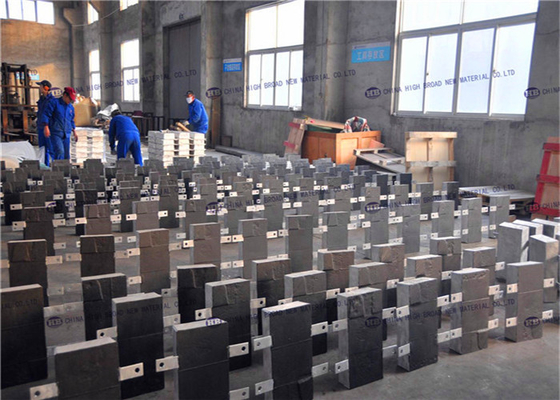

ISO Workshop
