High Potential Extruded sacrificial anodes for cathodic protection ( CP ) systems

China High Potential Extruded sacrificial anodes for cathodic protection ( CP ) systems supplier
High Potential Extruded sacrificial anodes for cathodic protection ( CP ) systems supplier High Potential Extruded sacrificial anodes for cathodic protection ( CP ) systems supplier High Potential Extruded sacrificial anodes for cathodic protection ( CP ) systems supplier High Potential Extruded sacrificial anodes for cathodic protection ( CP ) systems supplier High Potential Extruded sacrificial anodes for cathodic protection ( CP ) systems supplier

Large Image :  High Potential Extruded sacrificial anodes for cathodic protection ( CP ) systems

Product Details:

Place of Origin: China
Brand Name: High Broad/OEM
Certification: ASTM G-97, ISO, DNV
Model Number: High Potential Magnesium Ribbon

Payment & Shipping Terms:

Minimum Order Quantity: 1kg for Magnesium Ribbon,High Potential Extruded Magnesium Ribbon Anode for Cathodic Protection (CP) systems
Price: negotiable
Packaging Details: On pallet with steel bundles for magensium Ribbon
Delivery Time: 1days for 10tons
Payment Terms: D/P, L/C, T/T, Western Union, MoneyGram,Paypal etc
Supply Ability: 300mt per month
Detailed Product Description
Product Name: Magnesium Ribbon,High Potential Extruded Magnesium Ribbon Anode For Cathodic Protection (CP) Systems Usage: Cathodic Protection, Anti-Corrosion,Offshore Project, Bridge,anti Corrosion
Shape: Magnesium Ribbon Anode Other Name: Sacrificial Ribbon Anode
Size: HB Magnesium Ribbon Anode 9.5*19mm Prepackaged Magnesium Anode: Magnesium Anode With Cable
ASTM ANODE: Magnesium Ribbon Anode,Magnesium Hull Anodes Extruded Magnesium Ribbon Anode: Extruded Magnesium Ribbon Sacrificial Anode For Cathodic Protection System
Highlight:

sacrificial anode protection

,

mg anode



High Potential Extruded sacrificial anodes for cathodic protection ( CP ) systems





1.Product information



• Item name: Magnesium sacrificial ribbon anode



Magnesium anode extruded ribbon is a flexible anode materials , used in high resistivity water or soil.



Due to the ribbon's greater surface area to weight ration, magnesium ribbon can provide higher current outputs when compared to other magnesium anodes.



Chemical composition:



Designation Al Zn Mn Fe Ni Cu Si Mg
Mg-Mn <0.010 - 0.5-1.30 <0.03 <0.001 <0.02 - balance
Mg <0.010 <0.010 <0.030 <0.002 <0.001 <0.001 <0.010 >99.95
AZ31 5.30-6.70 0.7-1.3 0.20 max 0.005 max 0.01 max 0.001 max 0.05 max





2.Application of sacrificial anode magnesium



Magnesium anode is characterized by small density, big theory electric capacity, low potential negative polarization rate and large driving voltage for iron and steel (> 0.6 V).



Magnesium sacrificial anode is suitable for the protection of metal components in soil and water, where the electrical resistivity is higher.



Our magnesium anode is mainly used for anticorrosion of buried pipelines, onshore platforms, huge boilers and steel structures.





Printing plate with etching/ Stamping 3c auto parts mg battery shell/ decorative sheet construction /military industry/, batter anode for sea water /, instrument and meter shell

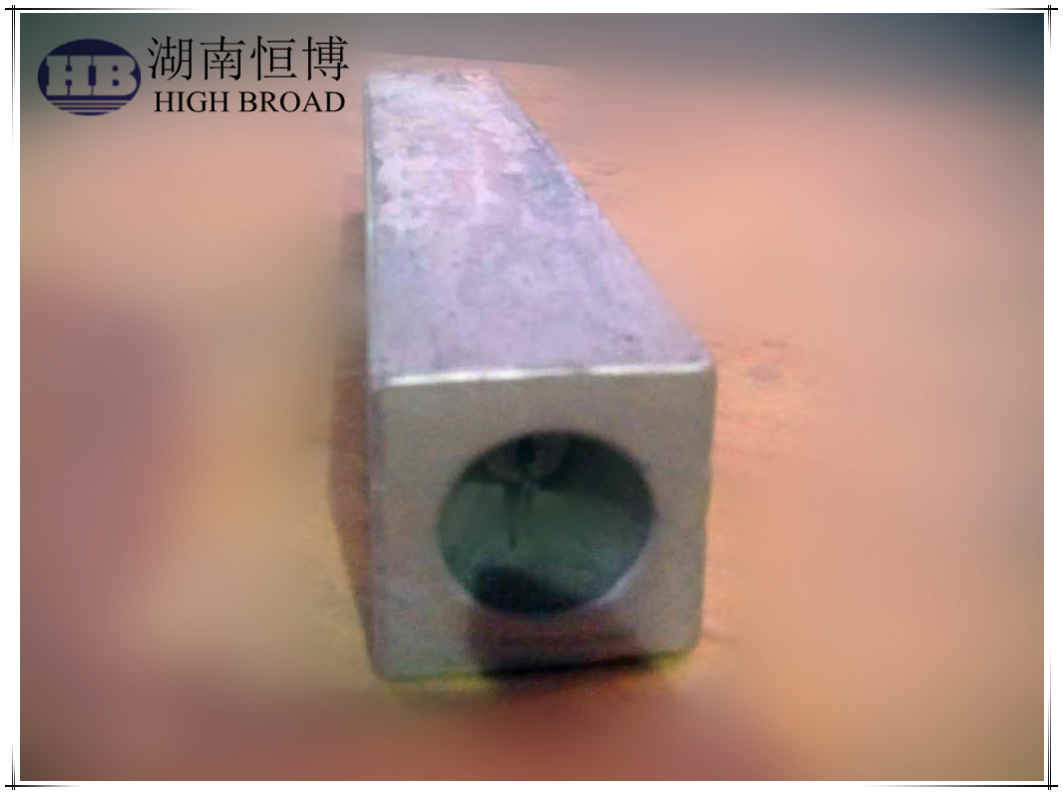

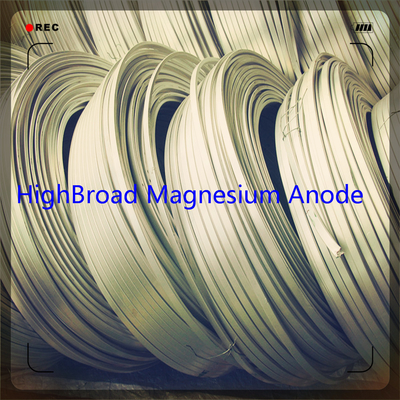

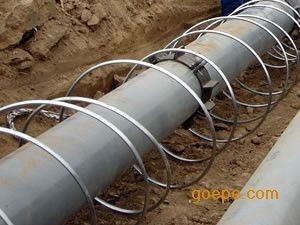

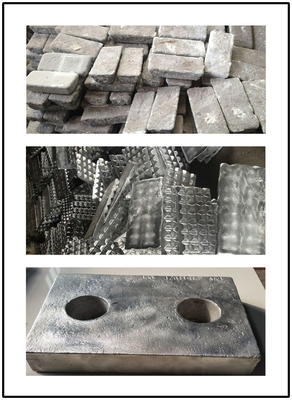

3.Anode detail image

High Potential Extruded sacrificial anodes for cathodic protection ( CP ) systemsHigh Potential Extruded sacrificial anodes for cathodic protection ( CP ) systemsHigh Potential Extruded sacrificial anodes for cathodic protection ( CP ) systemsHigh Potential Extruded sacrificial anodes for cathodic protection ( CP ) systems





We can surely produce anode as per your drawing !



Pls contact us for more details !


Jane Hu(Ms)

China Hunan High Broad New Material Co., Ltd.
70 Chezhan North Road,Changsha, China 410100
Tel:+86-731-85717705
Fax:+86-731-85716569
Mobile/Whatsapp: +86-139-7515-2932
Wechat:13975152932
Skype:jane.hu261
Email:
janehu@hbnewmaterial.com
Web:www.hbnewmaterial.com





4. Specification





Name Magnesium Ribbon
Grade CHEMICAL COMPOSITION (%)
Impurity, ≤ Total Impurity
Mg Fe Si Ni Cu Al Cl Mn 0.05
Mg 99.95 99.95 0.004 0.01 0.001 0.002 0.01 0.003 0.01
Remark

Diameter Size: 4mm or 6mm

Delivery: prompt shipment

Packing: ON MAGNESIUM PALLET OR WOODEN PALLET





The mechanical properties at room temperature:



Material Status Tensile direction Yield Strength(MPa) Tensile(MPa) Elongation %
Hot-rolled state Rolling direction 260 280 9.5
Hot-rolled state Horizontal 274 300 8.5
Annealed Rolling direction 198 254 20
Annealed Horizontal 186 250 21.5






5.magnesium anode



Usage:

(1)Corrosion protection magnesium anode

(2)protect water heater, water containers of steel structure magnesium anode

(3)protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)



High Potential Extruded sacrificial anodes for cathodic protection ( CP ) systemsHigh Potential Extruded sacrificial anodes for cathodic protection ( CP ) systems
