Product Name: | High Performance Magnesium Anode Rod For Water Heaters | Application: | Corrosion Protection,Electric Water Heater Etc |
---|---|---|---|
Chemical: | Magnesium Rod | Content: | Magnesium Anode Rod |
Commodity: | Mg Alloy Ingot | Shape: | Rod |
Sacrificial Anode Rod: | High-Performance Large-Diameter Cast Magnesium Alloy Rod | AZ63B: | Magnesium Anode Rod AZ31,AZ91 |
Chemical Content: | Mg,Mn,Al,Zn,Cu | ASTM B 843-1995: | OEM Extruded/Cast Magnesium Anode Rod For Water Heaters |
Highlight: | sacrificial anode protection,magnesium sacrificial anode |
High Performance Magnesium anode rod for water heaters
1.Product information
• Item name: Magnesium anode rod for water heaters
• The advantage: AZ63, High Potential (Mg-Mn) The best quality and best price.
• Raw materials: AZ31series,AZ63series and so on;
2.The characteristic of magnesium anode rod
The magnesium rod is designed to make a longer life for water heaters and boilers, it is the solution to smelly water and sediment control and other specific problems. We supply the water heater magnesium anode rod following the standard of NF EN 12438.

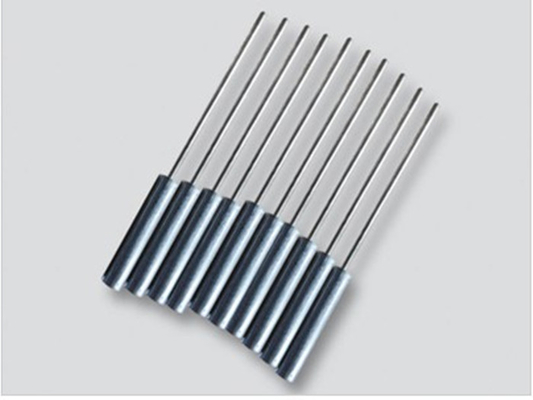

3.Anode detail image
We can surely produce Magnesium Rod as per your drawing !
Pls contact us for more details !
4. Chemical Composition
Type | Alloy Element | Impurity Elements(Max) | ||||||||
Al | Zn | Mn | Mg | Fe | Cu | Ni | Si | Other | ||
Each | Total | |||||||||
MGAZ63B | 5.3-6.7 | 2.5-3.5 | 0.15-0.60 | Balance | 0.003 | 0.01 | 0.001 | 0.08 | _ | 0.30 |
MGAZ31B | 2.7-3.5 | 0.6-1.4 | 0.2-1.0 | Balance | 0.003 | 0.01 | 0.001 | 0.08 | 0.05 | 0.30 |
5. Dimensions
Anode Dia(mm) | Core Dia(mm) | Screw | Unit weight(g/cm) |
φ13.97 | Φ2.0 | NPE-ASMT/BSP/G/R | 2.83 |
Φ19.05 | Φ3.4 | NPE-ASMT/BSP/G/R | 5.66 |
Φ21.34 | Φ3.4 | NPE-ASMT/BSP/G/R | 6.85 |
Φ26.67 | Φ3.4 | NPE-ASMT/BSP/G/R | 10.42 |
Φ33.40 | Φ3.4 | NPE-ASMT/BSP/G/R | 16.08 |
Φ39.65 | Φ4.8 | NPE-ASMT/BSP/G/R | 23.07 |
Φ51.40 | Φ4.8 | NPE-ASMT/BSP/G/R | 37.96 |
*Customized Size Available |
6.magnesium anode
Usage:
(1)Corrosion protection magnesium anode
(2)protect water heater, water containers of steel structure magnesium anode
(3)protect the gas pipeline in-home service polarization high resistance electrolytes (soil and water in the steel structure)
We are dealing with Magnesium Anodes more than ten years. As a professional producer & supplier in the market, we have good relationship with various customers all over the world(North America,Europe,Korea,Middle East). Basis on our stable quality and good service, we have achieved good reputation among our customers for our good contractual reliability and delivery performance no matter the market is going up or down.
We can supply D-Shaped Cast Magnesium Anodes of both High Potential and Regular Potential (AZ 63C) alloys.The size range from 3D3 to 48D5 and 60-pound anodes.Round High Potential one –pound Anodes are also available,as are all sizes of Extruded Anodes and Magnesium Ribbon.We can also produce the goods as per your requirement even such as the Large-tonnage Magnesium Sacrificial Anodes. The producing and testing process is strictly as per the DOW Chemical company(U.S.A.) and China SYJ19-86 standard.Capacity is 3000mt/year.
Besides,we also supply Aluminum/Zinc Anodes etc.which are widely used in Cathodic Protection.
