Name: | Magnesium Anode/Zinc Anode/Aluminium Anode | Material: | High Potential /AZ63C Magnesium Anode Az63 |
---|---|---|---|
Dimensions: | ASTM H-1 ALLOY CAST MAGNESIUM ANODES(ASTM AZ63) | Usage: | Anti-corrosion/Cathodic Protection High Potential Magnesium Anodes With Back Fill And Cable |
Shape: | Cylinder, Square,D Shape,ribbon ,rod,bar Etc. | Other Name: | High Potential & AZ63 Type Magnesium Sacrificial Anode For Cathodic Protection |
Category: | Anti Corrosion ASTM G97 Sacrificial Mg Anode For Corrosion Control | Packing Inner: | Cast Magnesium Anodes For Plastic Waterproof |
MgMn Or Az63: | Chemical Componets Of Wrought Magnesium Altoys | Anode Potential: | High Potential Or Low Potential American Standard Magnesium Anode |
Highlight: | sacrificial anode protection,magnesium sacrificial anode |
A cotton bag holds the backfill around the inner metal bar. It decomposes over time in the ground. The anode is shipped in an outer disposable, plastic or paper bag to protect it from rain or snow. It is recommended that 5 gallons of water be poured on the anode after it is placed in the earth to wet the backfill. This lowers the resistance between the magnesium and the earth causing more electric current to flow. This provides more protective current than would be possible in dry soil.
Hp Magnesium anodes are produced in a variety of shapes and sizes for use in anti-corrosion protection of such projects are oil pipelines, gas pipelines, water supply pipes and drain-pipes, underground cables, chemical plants, communication, harbors, watercrafts and reservoir strobe.

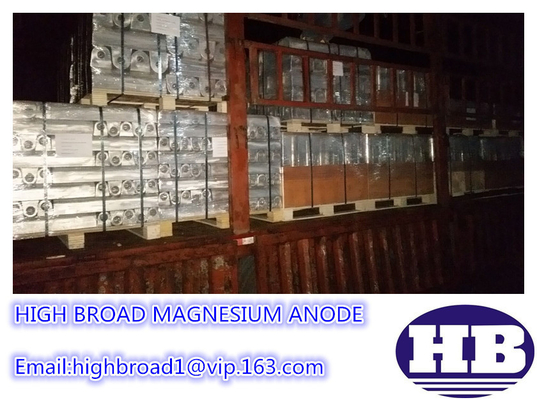

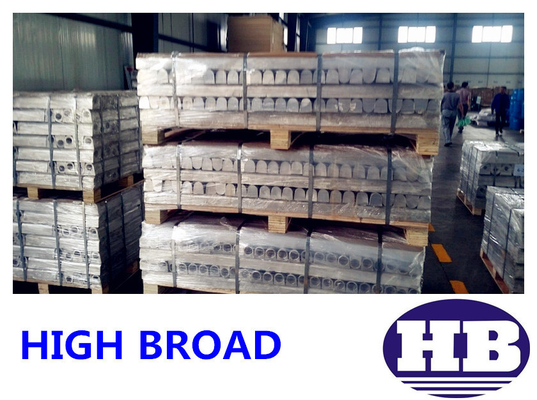

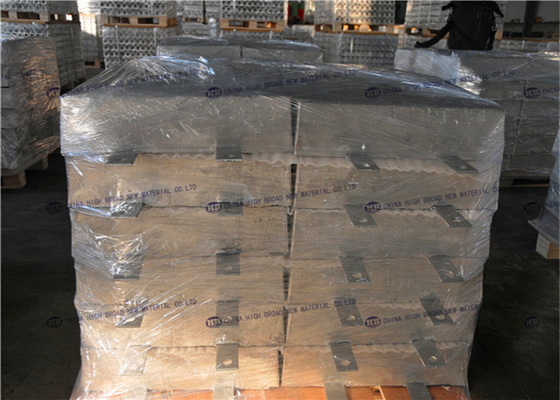

Cast sacrificial magnesium anode
C Type
| Type | Diameter (mm) | Weight | High Potential L(mm) | AZ63 anode L(mm) |
C25 | 75 | 2.56 | 336 | 325 | |
C36 | 114 | 3.70 | 202 | 193 | |
C41 | 114 | 4.20 | 230 | 220 | |
C77 | 110 | 7.80 | 431 | 412 | |
C100 | 110 | 10.20 | 560 | 536 | |
C145 | 146 | 14.70 | 494 | 472 | |
C227 | 178 | 22.90 | 520 | 497 | |
C274 | 114 | 28.20 | 1528 | 1462 |
D Type
| Type | Weight(Kg) | Specification | ||
W(mm) | H(mm) | L(mm) | |||
9D2 | 4.082 | 69.90 | 76.20 | 549.30 | |
14D2 | 6.350 | 69.90 | 76.20 | 850.90 | |
20D2 | 9.072 | 69.90 | 76.20 | 1212.90 | |
9D3 | 4.082 | 88.90 | 95.30 | 352.40 | |
17D3 | 7.711 | 88.90 | 95.30 | 641.40 | |
32D5 | 14.515 | 139.70 | 146.10 | 504.80 | |
48D5 | 21.772 | 139.70 | 146.10 | 765.20 | |
1.5kg | 1.50 | 80.00 | 70.00 | 190.00 | |
2.5kg | 2.50 | 80.00 | 70.00 | 300.00 |
![]() | Type | Weight | Specification | ||
W(mm) | H(mm) | L(mm) | |||
3S3 | 1.4 | 76.20 | 76.20 | 114.30 | |
5S3 | 2.5 | 76.20 | 76.20 | 190.50 | |
9S2 | 4.1 | 50.80 | 50.80 | 685.80 | |
9S3 | 4.1 | 76.20 | 76.20 | 342.90 | |
17S2 | 7.7 | 50.80 | 50.80 | 1295.40 | |
17S3 | 7.7 | 76.20 | 76.20 | 647.70 | |
20S2 | 9.1 | 50.80 | 50.80 | 1524.00 | |
32S3 | 14.5 | 76.20 | 76.20 | 1143.00 | |
32S5 | 14.5 | 127.00 | 127.00 | 533.40 | |
40S3 | 18.1 | 76.20 | 76.00 | 1524.00 | |
48S5 | 21.8 | 127.00 | 127.00 | 787.40 | |
60S4 | 27.2 | 101.60 | 127.00 | 1524.00 |
Application:
1) -for above ground storage tank bottoms
2) -for reinforced concrete structures
3) - for under ground storge tank
4) - for fine sand environment
5) - for environment evolution of O2,Cl2 or a combination of both
6) - other by custom design size and dimension
Chemical compositions of cast magnesium anode (%) | ||||
Element | High potential | AZ63B | AZ63C | AZ63D |
Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
Others each | 0.05 | --- | -- | --- |
Others total | 0.30 | 0.30 | 0.30 | 0.30 |
Mg | Balance | Balance | Balance | Balance |
Electrochemical Properties of cast magnesium anodes | ||||
Item | Open-circuit Voltage | Close-circuit Voltage | Actual capacitance | Current efficiency |
(-V) | (-V) | (A.h/g) | (%) | |
High Potential | 1.70-1.75 | 1.57-1.62 | ≥ 1.100 | ≥ 50 |
Low Potential (AZ63) | 1.50-1.55 | 1.45-1.50 | ≥ 1.105 | ≥ 50 |
Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE) |
We are professional manufacturer and has 17 years experience in anti corrosion industry. Our main products includes
Our products are widely used to many important projects and water heater factories, Hongkong-Macau-Zhuhai bridge, Hangzhou Bay bridge, and Sinopec, Haier, AOSmith etc,.
FAQ:
Q.What information will be needed if I want a quotation?
A: Materials contents(Chemical Compositions) and the size of models. Special structures with drawing, Qty and deliverytime.
Q. Can we visit your company/factory before place the order?
A: Welcome to visit us in China. Hopefully it will be a happy journey here.
Q: How does your factory do regarding quality control?
A: Quality is base of the company life. We working on new materials industrial for more than 20 years.
Q. What do Magnesium sacrificial anodes do?
A. Magnesium anode is used in the technical method of electrochemistry cathode protection. theory is from that connect with the protected metal body ,with the exhausting and dissolving of negative metal material or alloy ,protective curer body will be protected from corrosion . Mg anode can produce higher quality potential power, is ideal sacrificial materials.
