| Product Name: | HP MgMn AZ31B Magnesium Anode Ribbon For Cathodic Protection , Corrosion Prevention | Usage: | Cathodic Protection, Anti-Corrosion,Offshore Project, Bridge,anti Corrosion |
|---|---|---|---|
| Shape: | Magnesium Ribbon | Other Name: | Sacrificial Ribbon Anode |
| Size: | HB Magnesium Ribbon Anode 9.5*19mm | Prepackaged Magnesium Anode: | Magnesium Anode With Cable |
| ASTM ANODE: | MgMn AZ31B Magnesium Anode Ribbon For Cathodic Protection , Corrosion Prevention | Extruded Magnesium Ribbon Anode: | Magnesium Anode Ribbon For Cathodic Protection , Corrosion Prevention |
| Highlight: | sacrificial anode protection,magnesium sacrificial anode |
||
HP MgMn AZ31B Magnesium anode ribbon for cathodic protection , corrosion prevention
1.Product information
• Item name: Magnesium anode ribbon
2.Magnesium alloy ribbon:
1. Alloy: Pure magnesium ribbon,HP MgMn magnesium anode ribbon,
AZ31 magnesium ribbon,
2. Condition:
As extruded. Smooth finish, free from surface grease or other
foreign matter which would adversely affect the welding operation.
3. Dimensions:
Standard diameters: 1.2mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm, 5.6mm...
4. Packaging:
Every reel is packed in vacuum foil package, the reels are packed in wooden case.

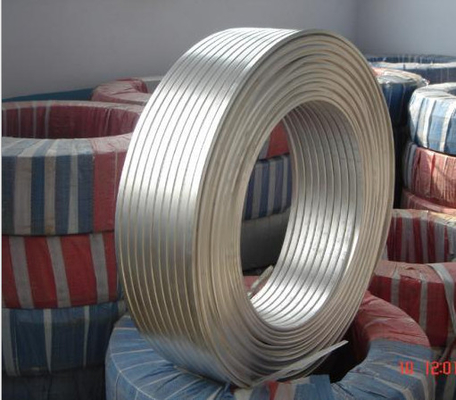

3.Anode detail image
We can surely produce Magnesium ribbon as per your drawing !
Pls contact us for more details !
4. Specification
Magnesium Anode Ribbon
| CHEMICAL COMPOSITION (%) | ||||||||
| Grade | Al | Zn | Mn | Fe | Ni | Cu | Si | Mg |
Mg-I | <0.010 | <0.010 | <0.030 | <0.002 | <0.001 | <0.001 | <0.010 | >99.95 |
Mg-II | <0.010 | — | 0.50-1.30 | <0.03 | <0.001 | <0.02 | — | Balance |
The mechanical properties at room temperature:
| Material Status | Tensile direction | Yield Strength(MPa) | Tensile(MPa) | Elongation % |
| Hot-rolled state | Rolling direction | 260 | 280 | 9.5 |
| Hot-rolled state | Horizontal | 274 | 300 | 8.5 |
| Annealed | Rolling direction | 198 | 254 | 20 |
| Annealed | Horizontal | 186 | 250 | 21.5 |
