Backfill Magnesium Anodes With AWG PVC / XLPV Cable For Oil Pipelines Cathodic Protection Systems CP

China Backfill Magnesium  Anodes With AWG PVC / XLPV Cable For Oil Pipelines Cathodic Protection Systems CP supplier
Backfill Magnesium  Anodes With AWG PVC / XLPV Cable For Oil Pipelines Cathodic Protection Systems CP supplier Backfill Magnesium  Anodes With AWG PVC / XLPV Cable For Oil Pipelines Cathodic Protection Systems CP supplier Backfill Magnesium  Anodes With AWG PVC / XLPV Cable For Oil Pipelines Cathodic Protection Systems CP supplier

Large Image :  Backfill Magnesium Anodes With AWG PVC / XLPV Cable For Oil Pipelines Cathodic Protection Systems CP

Product Details:

Place of Origin: China
Brand Name: High Broad or OEM
Certification: ASTM
Model Number: Magnesium Backfill Anodes

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: in wood case on pallet
Delivery Time: 1 FCL:14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 300 Metric Ton/Metric Tons per Month
Detailed Product Description
Grade: AZ63 Size: 2 Lb 5 Lb 10 Lb 22 Lb 44 Lbs 32 Lbs 60 Lbs
Advantage: For Soil Underground Pipepline
Highlight:

sacrificial anode protection

,

magnesium sacrificial anode

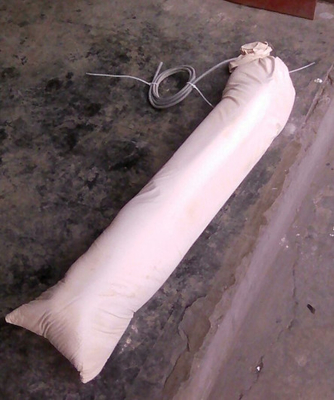

Magnesium Backfill anodes typically have 10′ of No. 12 insulated wire and are packaged in the backfill mixture of: 75% Hydrated Gypsum, 20% Bentonite, 5% Sodium Sulfate



ANODE SIZE BARE LBS PACK LBS ANODE WIDTH ANODE HEIGHT ANODE LENGTH PACKAGE DIA PACKAGE LENGTH
MB-3-H-1 3 8 3 3 5 5.25 8
MB-5-H-1 5 13 3 3 8 5.25 11.25
MB-9-H-1 9 27 3 3 14 5.25 20
MB-12-H-1 12 32 4 4 12 7.5 18
MB-17-H-1 17 45 4 4 17 7.5 24
MB-32-H-1 32 68 5 5 20.5 8.6 28
MB-5-HP 5 17 3.5 3.5 8.5 6 12
MB-9-HP 9 27 3.5 3.5 14 6 17
MB-14-HP 14 31 2.75 2.75 41 6 46
MB-17-HP 17 45 3.5 3.5 25.75 7.5 34
MB-32-HP 32 70 5.5 5.5 20.5 8 28





Backfill Magnesium  Anodes With AWG PVC / XLPV Cable For Oil Pipelines Cathodic Protection Systems CP



Backfill Element
Gypsum 75%
Bentonite 20%
Sodium Sulphate 5%
Harmful Elements
Cadmium (Cd) ≤1ppm
Arsenicum (As) ≤1ppm
Mercury (Hg) ≤1ppm
Phosphorus (Pb) ≤10ppm

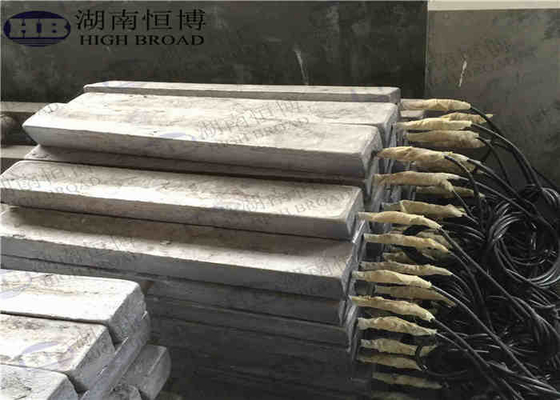

Magnesium anode is casted from high-purity magnesium and installed in a backfill of 75 % gypsum, 20 % Bentonite and 5 % sodium sulfate. This type of anode produces an open circuit potential of 1.65 - 1.70 volts, which is 20 - 30 % greater than conventional magnesium anodes. This high driving voltage means greater protection can be delivered from fewer anodes.

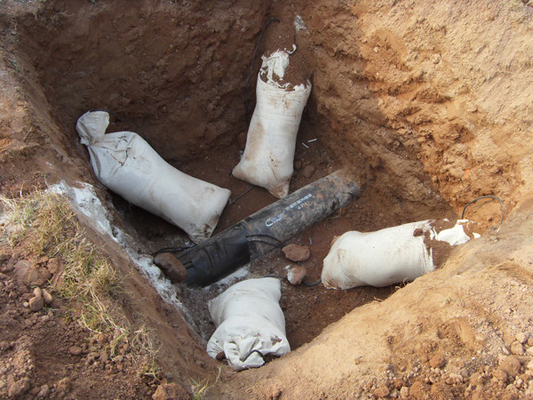

Applications of Magnesium Anodes for Cathodic Protection (CP) Magnesium has the highest driving voltage of the materials used for sacrificial anodes and is most commonly used onshore (in higher resistivity electrolytes) where the use of zinc and aluminium would be uneconomical. The most common applications are: Temporary CP Systems The high current output of magnesium in seawater assists in the rapid achievement of polarization potential. This approach has been used where the zinc or aluminium system originally installed has failed to provide sufficient current to achieve polarization. Recent system have included magnesium to provide the initial polarization as part of the system design. Temporary protection of land and other pipelines during construction and before the energizing of the impressed current system. The anodes are easily installed within pipe trench as construction proceeds; additional excavation is not required. De‐scaling of tanks. The high potential and consequent hydrogen evolution at the cathode leads to rapid removal or surface scale. External protection of ships; hulls whilst is fresh or brackish water. This often consists of anodes suspended over the vessels’ sides. Permanent CP Systems Land pipelines. Magnesium anodes have a particular effective role in urban areas or where there are other buried services in the immediate vicinity. Service pipes to domestic and commercial premises. For small diameter and short length pipes, the current required is very low and the anode mass is usually between 0.3 and 1.0kg. Two types of anode are in common use. The first type consists of an insert that screws directly into a "blind tee" that is fitted into the service pipe. This is cheap and easy to install but does not allow the performance to be monitored. The second type consists of a small cast or extruded anode that is packaged in the same way as the larger anode types. Connecting the cable via a test point allows for monitoring. · Short pipelines including river crossings. · External surfaces of buried storage tanks, particularly oil tanks in hazardous areas. · External surfaces of caissons in fresh or brackish waters. The higher resistivity of these electrolytes prevents a cost effective protection system using zinc or aluminium anodes. · Internal surfaces of water storage tanks and treatment plants. The deposits are non toxic and magnesium anodes may be used in potable water systems. · Internal surfaces of calorifiers, heat exchangers and condensers. · Protection of "hot spots" on otherwise unprotected pipelines. "Hot Spots" are areas where soil conditions are highly aggressive. · Supplementary protection on pipelines with impressed current CP systems in poorly protected areas, often due to coating
