Application: | Used In Water Boiler, Heat Exchanger, Vopourater, Water Container, Etc. | Grade: | AZ63C High Potential |
---|---|---|---|
Usage: | Corrosion Protection | Future: | High Purity Raw Material |
Cast Anode: | Range From 3D3 To 48D5 And 60-pound Anodes | Standard: | ASTM |
Highlight: | mg anode,magnesium sacrificial anode |
Cast Mg Anode Range From 3d3 To 48d5 And 60 Pound Sacrificial Anode Rod For Water Heater
Mg anode(cast & extruded)

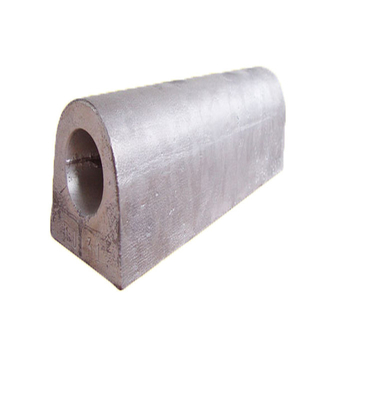

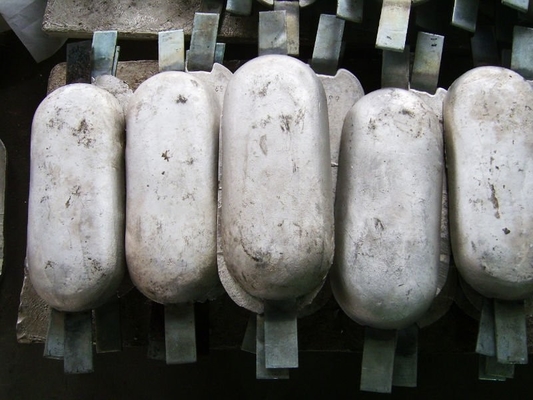

We supply D-Shaped Cast Magnesium Anodes of both High Potential and Regular Potential (AZ 63C) alloys. The sizes range from 3D3 to 48D5 and 60-pound anodes. Round High Potential one-pound Anodes are also available, as are condenser anodes and all sizes of Extruded Anodes and Magnesium Ribbon.
Specification
High Potential Magnesium Anode | ||
chemical composition | ||
Alloy | ASTM B843-M1C | |
Aluminum | 0.01% Max | |
Manganese | 0.50-1.30 | |
Copper | 0.005% Max | |
Silicon | 0.05% Max | |
Nickel | 0.001% Max | |
Fe | 0.01% Max | |
Single Impurity | 0.05% Max | |
Total Impurity | 0.30% Max | |
Remaining | Magnesium | |
Electrochemical Properties | ||
Open Voltage(-mV) | 1.70-1.75(-V) SCE | |
Closed Voltage (-mV) | 1.58-1.62(-V) SCE | |
Actual capacity (A.h/kg) | 1100 | |
Efficiency | 50% |
Standard Potential Magnesium Anode | |
chemical composition | |
Alloy | ASTM B843-AZ63B |
Aluminum | 5.30-6.70 |
Zinc | 2.50-3.50 |
Manganese | 0.15-0.70 |
Silicon | 0.10% Max |
Copper | 0.02% Max |
Nickel | 0.002% Max |
Fe | 0.003% Max |
Total Impurity | 0.30% Max |
Remaining | Magnesium |
Electrochemical Properties | |
Open Voltage (-mV) | 1.50-1.55(-V)SCE |
Closed Voltage (-mV) | 1.45-1.50(-V)SCE |
Actual capacity (A.h/kg) | 1230 |
Efficiency | 55% |
Item No. | "D" TYPE | High Potential(-1.7V) | Standard Potential(-1.5V) | ||||||
Nominal Width (mm) | Nominal Length (mm) | Nominal Height (mm) | Nominal Weight (kg) | Nominal Width (mm) | Nominal Length (mm) | Nominal Height (mm) | Nominal Weight (kg) | ||
1 | HB-MG-5D2 | 70 | 310 | 76 | 2.3 | 70 | 305 | 76 | 2.3 |
2 | HB-MG-9D2 | 70 | 545 | 76 | 4.1 | 70 | 540 | 76 | 4.1 |
3 | HB-MG-9D2-1 | 63.5 | 705 | 67 | 4.1 | 63.5 | 640 | 67 | 4.1 |
4 | HB-MG-20D2 | 70 | 1524 | 76 | 9.1 | 70 | 1495 | 76 | 9.1 |
5 | HB-MG-14D2 | 70 | 850 | 76 | 6.36 | 70 | 815 | 76 | 6.36 |
6 | HB-MG-17D2 | 63.5 | 1210 | 67 | 7.7 | 63.5 | 1188 | 67 | 7.7 |
7 | HB-MG-5D3 | 89 | 190 | 95 | 2.3 | 89 | 180 | 95 | 2.3 |
8 | HB-MG-9D3 | 89 | 345 | 95 | 4.1 | 89 | 325 | 95 | 4.1 |
9 | HB-MG-17D3 | 89 | 645 | 95 | 7.7 | 89 | 610 | 95 | 7.7 |
10 | HB-MG-35D5 | 140 | 498 | 146 | 14.5 | 140 | 472 | 146 | 14.5 |
11 | HB-MG-48D5 | 140 | 750 | 146 | 21.8 | 140 | 710 | 146 | 21.8 |
12 | HB-MG-17D4 | 102 | 525 | 108 | 7.7 | ||||
13 | HB-MG-60D4 | 112 | 1524 | 112 | 27.3 | 114 | 1485 | 114 | 27.3 |
Item No. | "R" TYPE | Nominal Diameter (mm) | Nominal Length (mm) | Nominal Weight (kg) | Nominal Diameter (mm) | Nominal Length (mm) | Nominal Weight (kg) |
1 | HB-MG-R50 | 114 | 288 | 5.0 | 114 | 275 | 5.0 |
2 | HB-MG-R77 | 114 | 440 | 7.7 | 114 | 410 | 7.7 |
3 | HB-MG-R100 | 114 | 565 | 10.0 | 114 | 545 | 10.0 |
4 | HB-MG-R145 | 146 | 405 | 14.5 | 146 | 475 | 14.5 |
5 | HB-MG-R273 | 114 | 1524 | 27.3 | 114 | 1450 | 27.3 |
Item No. | ‘S’ Type | High Potential(-1.7V) | Standard Potential(-1.5V) | ||||||
1 | HB-MG-3S3 | 86.25 | 120 | 76 | 1.4 | 86.25 | 115 | 76 | 1.4 |
2 | HB-MG-5S3 | 86.25 | 204 | 76 | 2.3 | 86.25 | 198 | 76 | 2.3 |
3 | HB-MG-9S3 | 86.25 | 365 | 76 | 4.1 | 86.25 | 345 | 76 | 4.1 |
4 | HB-MG-17S3 | 86.25 | 680 | 76.2 | 7.7 | 86.25 | 650 | 76 | 7.7 |
5 | HB-MG-32S5 | 117 | 563 | 127 | 14.5 | 117 | 535 | 127 | 14.5 |
6 | HB-MG-48S5 | 117 | 845 | 127 | 21.8 | 117 | 820 | 127 | 21.8 |
