Product Details:
Payment & Shipping Terms:
|
| Application: | Used In Water Boiler, Heat Exchanger, Vopourater, Water Container, Etc. | Grade: | AZ63C High Potential |
|---|---|---|---|
| Usage: | Corrosion Protection | Standard: | ASTM |
| Extruded Anode: | All Sizes Of Extruded Anodes And Magnesium Ribbon | Mg Anode: | Extruded Magnesium Anode |
| Highlight: | sacrificial anode protection,magnesium sacrificial anode |
||

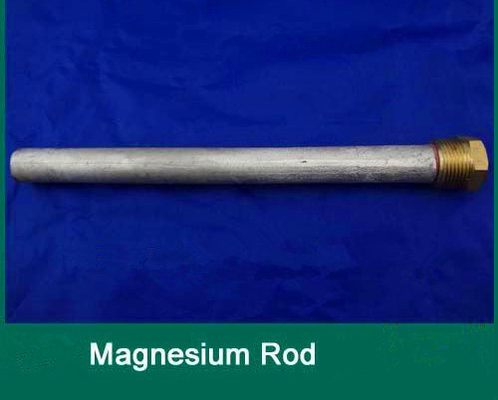

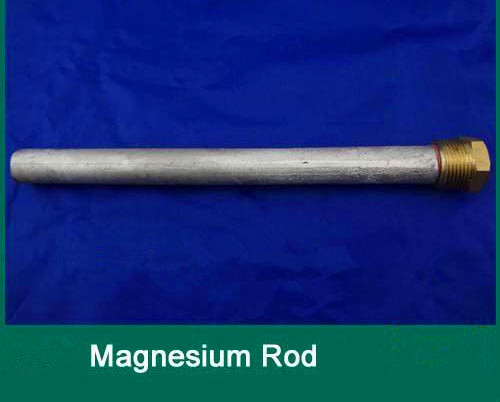

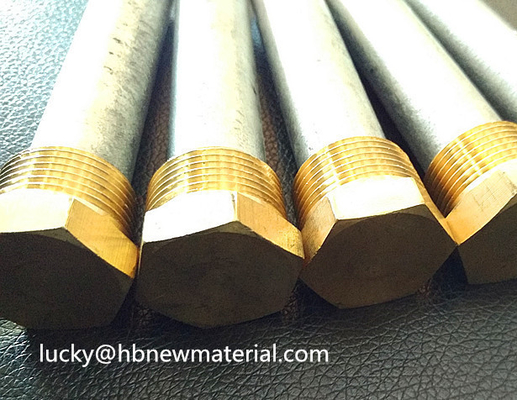

Extruded Water Heater Magnesium Anode Rod 20mm Thickness With 20mm BSB Thread
Magnesium anode
We supply D-Shaped Cast Magnesium Anodes of both High Potential and Regular Potential (AZ 63C) alloys. The sizes range from 3D3 to 48D5 and 60-pound anodes. Round High Potential one-pound Anodes are also available, as are condenser anodes and all sizes of Extruded Anodes and Magnesium Ribbon.
• Item name: Magnesium sacrificial anode
• The advantage: AZ63, High Potential (Mg-Mn) The best quality and best price.
• Raw materials: AZ31series,AZ63series and so on;
The characteristic of sacrificial anode magnesium
High electrochemistry performance
Average anode consuming
Long using time
High unit power output
Chemical compositions Extruded Magnesium Rod Anodes:
| Type | Mg | Al | Mn | Zn | Ca | Si | Cu | Ni | Fe | Other Imp. | |
| Each | Total | ||||||||||
| AZ31 | Bal | 2.5-3.5 | 0.2-1.0 | 0.7-1.3 | 0.04 | 0.05 | 0.01 | 0.001 | 0.005 | 0.001 | 0.30 |
| Mg-Mn | Bal | 0.01 | 0.5-1.3 | - | - | 0.05 | 0.02 | 0.001 | 0.03 | 0.05 | 0.30 |
Electrochemical properties of Extruded Magnesium Rod Anodes:
| Item Product | Open-circuit voltage (-V) | Close-circuit voltage (-V) | Actual capacitance (A·h/g) | Current efficiency (%) |
| AZ31 | 1.50-1.55 | 1.45-1.50 | ≥1.105 | ≥50 |
| Mg-Mn | 1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 |
Normal Size of Extruded Magnesium Rod Anodes:
| Diameter Inch (mm) | Theoretical weigh (g/m) |
| 0.551 (14) | 330 |
| 0.630 (16) | 420 |
| 0.689 (17.5) | 477 |
| 0.748 (19) | 542 |
| 0.827 (21) | 668 |
| 1.024 (26) | 1005 |
| 1.300 (33) | 1580 |

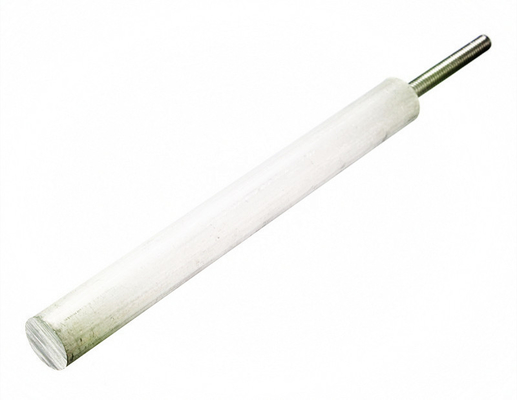

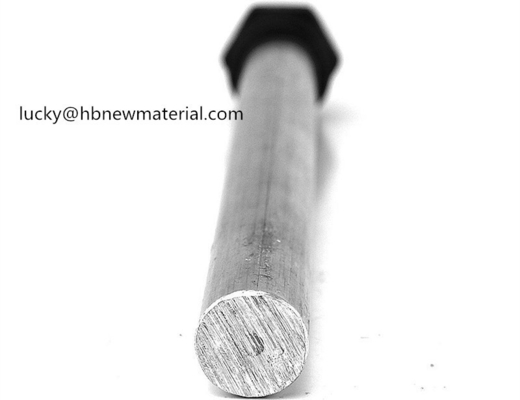

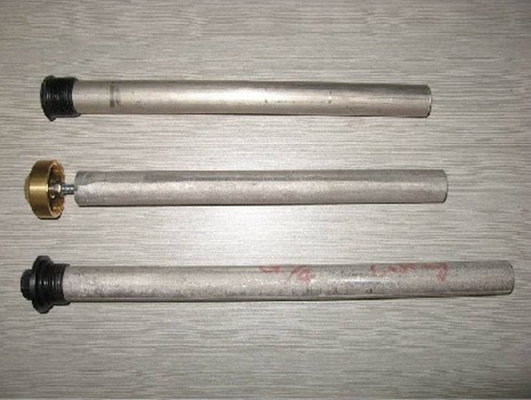

Extruded Magnesium Anode
- Magnesium Anode Rod Specification and Dimension
| Diameter(inch) | Core eccentric(inch) | Core diameter(inch) | Straightness(inch/ 2 ft length) | Weight(lbs/inch) |
| 0.675-0.020 | 0.050 | 0.135 | 0.060 | 0.025 |
| 0.750-0.020 | 1/16 | 0.135 | 0.040 | 0.031 |
| 0.800-0.020 | 1/16 | 0.135 | 0.040 | 0.035 |
| 0.840-0.020 | 1/16 | 0.135 | 0.040 | 0.038 |
| 0.900-0.020 | 1/16 | 0.135 | 0.040 | 0.043 |
| 1.050-0.020 | 1/16 | 0.135 | 0.040 | 0.057 |
| 1.315-0.020 | 1/16 | 0.135 | 0.040 | 0.089 |
* We also take customers’ requirements order.
- Chemical composition of Extruded anode, %
| Alloy | Al | Mn | Zn (max) | Ca (max) | Si (max) | Cu (max) | Ni (max) | Fe (max) | Other Imp. | |
| each | total | |||||||||
| AZ31B | 2.5-3.5 | 0.2-1.0 | 0.6-1.4 | 0.04 | 0.10 | 0.01 | 0.001 | 0.005 | --- | 0.30 |
| Mg-Mn | 0.01 max | 0.5-1.3 | --- | --- | --- | 0.02 | 0.001 | 0.03 | 0.05 | 0.30 |
HIGH BROAD Magnesium anodes are produced in a variety of shapes and sizes for use in anti-corrosion protection of such projects are oil pipelines, gas pipelines, water supply pipes and drain-pipes, underground cables, chemical plants, communication, harbors, watercrafts and reservoir strobe.
