Casting Magnesium Anode Packaged Backfill , Sacrificial Anodes For Cathodic Protection Systems Protect Steel Structure

Good quality Aluminum Sacrificial Anode for sales
Good products, Nice services. I trust High Broad brand.

—— Sheikh Abdulla

I puchase cathodic protection anodes from High Broad from year 2006. We worked well as best partners.

—— Narrisa Kotsonis

I'm Online Chat Now

Casting Magnesium Anode Packaged Backfill , Sacrificial Anodes For Cathodic Protection Systems Protect Steel Structure

China Casting Magnesium Anode Packaged Backfill , Sacrificial Anodes For Cathodic Protection Systems Protect Steel Structure supplier
Casting Magnesium Anode Packaged Backfill , Sacrificial Anodes For Cathodic Protection Systems Protect Steel Structure supplier Casting Magnesium Anode Packaged Backfill , Sacrificial Anodes For Cathodic Protection Systems Protect Steel Structure supplier Casting Magnesium Anode Packaged Backfill , Sacrificial Anodes For Cathodic Protection Systems Protect Steel Structure supplier Casting Magnesium Anode Packaged Backfill , Sacrificial Anodes For Cathodic Protection Systems Protect Steel Structure supplier

Large Image :  Casting Magnesium Anode Packaged Backfill , Sacrificial Anodes For Cathodic Protection Systems Protect Steel Structure

Product Details:

Place of Origin: China
Brand Name: OEM,High Broad,None
Certification: ASTM G-97 / ISO 90001
Model Number: H-1 / mic

Payment & Shipping Terms:

Minimum Order Quantity: 1 Kilograms
Price: negotiable
Packaging Details: On pallet with steel bundles
Delivery Time: 1 FCL:14 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 300 Metric Ton/Metric Tons per Month
Detailed Product Description
Pack: Cotton Bag , Plastic Bag Surface: Equilibrium Potential Of -2.61V
Process: Casting / Prepackaged Standard: America Standard
Highlight:

sacrificial anode protection

,

magnesium sacrificial anode

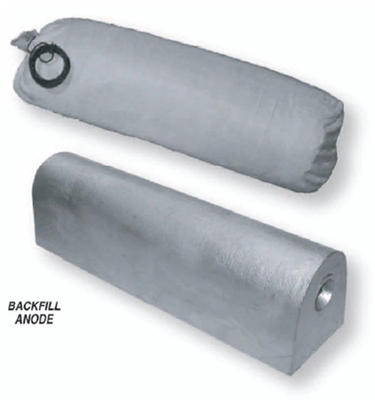

Cast Magnesium Anodes and Packaged Backfill ,sacrificial magnesium anodes with backfill

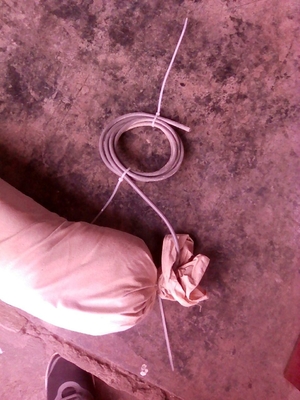

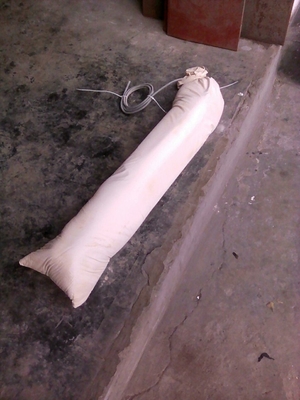

PREPACKD MAGNESIUM ANODE

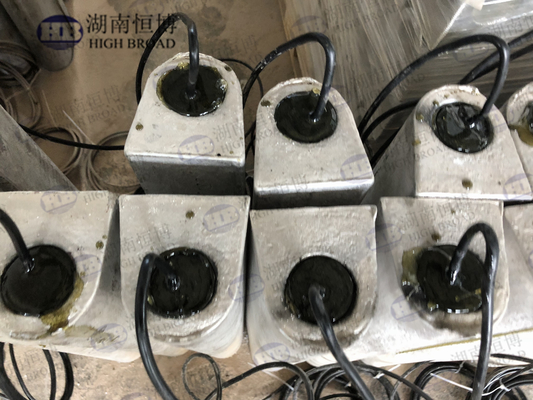

Bare Mg anodes could be supplied after being prepackaged. The bare Mg anodes will be assembled with cable and sealed with epoxy resin and packaged in cotton bag.

As the prepackaged anodes are buried under the ground. If there is any harmful element in the backfill of prepackaged anodes, this element will leak to the earth and groundwater when the anode is in use, which will pollute the environment.

The prepackaged anodes are made of recyclable materials or easily decomposable materials and the content of harmful elements in the backfill is lower than safety standards, which will not bring any pollution to the surrounding.

The available cables type(insulation/sheath) are:PVC/PVC,XLPE/PVC, HMWPE with any required size.





Backfill Element
Gypsum 75%
Bentonite 20%
Sodium Sulphate 5%
Harmful Elements
Cadmium (Cd) ≤1ppm
Arsenicum (As) ≤1ppm
Mercury (Hg) ≤1ppm
Phosphorus (Pb) ≤10ppm



Application

1) -for above ground storage tank bottoms

2) -for reinforced concrete structures

3) - for under ground storge tank

4) - for fine sand environment

5) - for environment evolution of O2,Cl2 or a combination of both

6) - other by custom design size and dimension



Pack:



Casting Magnesium Anode Packaged Backfill , Sacrificial Anodes For Cathodic Protection Systems Protect Steel Structure





Place of Origin
Hunan, China



Brand Name
High Broad



Model Number
D sahpe



Shape
D shape



Material
Magnesium Alloys



Chemical Composition
MgMn



Material
Magnesium anodes



Type
MgMn



Keywords
32D5



Standard
ASTM



Usage
Cathodic Protection



Other
17D3



1
Aluminum anode



2
Zinc anode



3
MMO anode



4
Magnesium anode rod
