Application: | Linear Anode For Buried OIL / GAS Pipelines | Standard: | Splice Kits For AnodeFlex 1500 Linear Anode System |
---|---|---|---|
Shape: | Conducting Polymer | Content: | Copper Core Linear Anode For Cathodic Protection System |
Type: | Grid Anodes | ||
Highlight: | mg anode,magnesium sacrificial anode |
Conductive polymer flexible anode

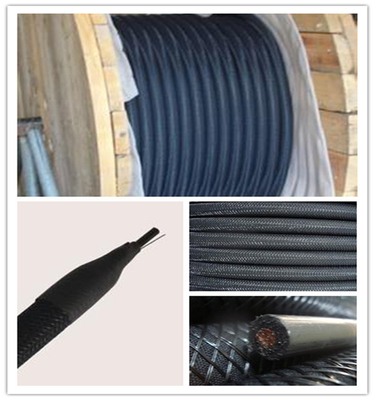

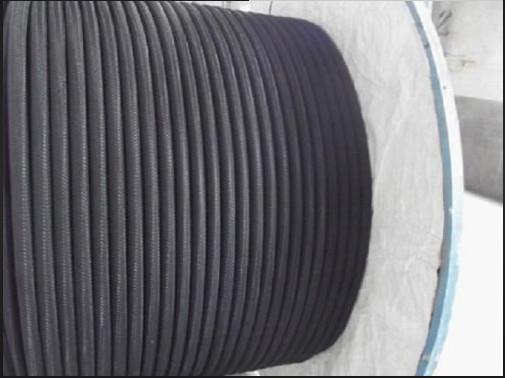

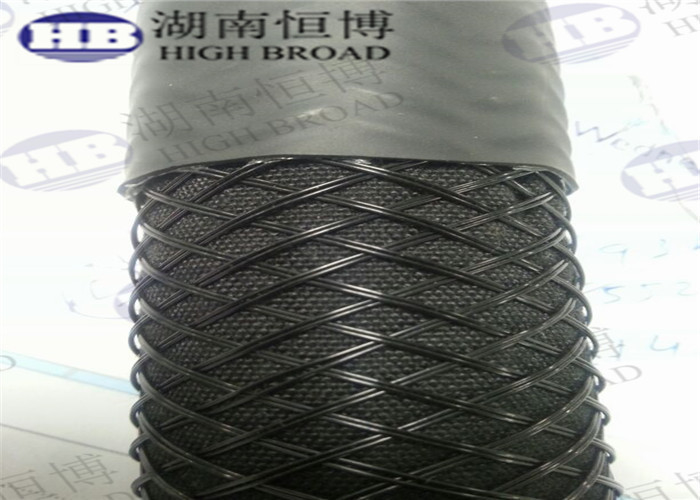

The conductive polymer type flexible anode is a uniform continuous structure auxiliary anode made of a conductive polymer as a substrate. The anode body is an integrated uniform continuous structure composed of a copper wire and a conductive polymer sheath. The outer structure is composed of a coke coating layer, an acid-resistant woven layer, and a wear-resistant woven mesh.
1, rated working current
Recommended maximum output current in soil: 52mA/m
2, the basic size of the anode
The nominal cross-sectional area of copper wire is ≥16.0mm2,
Sheath diameter (including copper wire) ≥13.0mm
Finished product diameter: 39.5±0.5mm
3, polymer conductive sheath volume resistivity
GB/T 3048-2007 "Wire and cable electrical performance test method"
Copper wire DC resistance (ply) ≤ 1.5 Ω / km
Conductive sheath volume resistivity: 1.1-1.9 Ω.cm
