Grade: | AZ-63 Is 90% Magnesium, 6% Aluminum And 3% Zinc. | Type: | 9 Lbs 9D3 17lbs 17D3 32D5 Magnesium Anode |
---|---|---|---|
Performance: | CP Systems | Paclk: | Bare Magnesium Anodes, Backfill Powder , Cable |
Highlight: | mg anode,magnesium sacrificial anode |
ASTM Standard HP H1 Magnesium Anode , High - Potential Mg Anode Anti Corrosion
ASTM Sacrificial magnesium anodes HP magnesium anode& H1magnesium anode
High Potential sacrificial anode Mg Alloy ASTM B843 M1C Casting Magnesium Anodes
ASTM Sacrificial magnesium anodes HP magnesium anode& H1magnesium anode
The available cables type (insulation/sheath) are: PVC/PVC, XLPE/PVC, HMWPE etc. with any required size.
Contact me for details:
Vivian Jiang
-----------------------------------------------
China Hunan High Broad New Material Co.Ltd.
70 Chezhan North Road,Changsha, China 410100
Tel:+86-731-85717705 Fax:+86-731-85716569
Mobile/Whatsapp: +86-139-7488-3816
Email: vivian@hbnewmaterial.com
Skype: vivian.jjy
Backfill Element | |
Gypsum | 75% |
Bentonite | 20% |
Sodium Sulphate | 5% |
Harmful Elements | |
Cadmium (Cd) | ≤1ppm |
Arsenicum (As) | ≤1ppm |
Mercury (Hg) | ≤1ppm |
Phosphorus (Pb) | ≤10ppm |
According to the principle of electrochemistry, a cathode current is supplied from a magnesium alloy anode material body to a protected body such as a steel structure through an electrolyte such as soil or water, and the protected steel structure is cathodized to achieve cathodic protection. As the current continues to flow, the anode material is continuously consumed. This is the origin of the sacrificial anode name.
Scope of application:

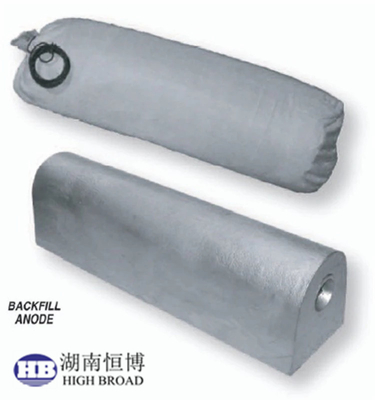

Magnesium sacrificial anodes are suitable for cathodic protection of steel facilities operating in media such as soil, fresh water and seawater. The above magnesium alloy sacrificial anodes can also be assembled and supplied to customers. The bare anode is first connected to the cable and the connection is sealed with epoxy. The filler is then packaged in a cotton bag. In line with the concept of environmental protection, the products provided by our company are all recyclable or easily decomposed by the environment. Contains no toxic or hazardous substances.
Assembly configuration:
Any model sacrificial anode.
One cable conductor: soldered to the sacrificial anode according to the length and specifications of the customer's design requirements, and sealed with epoxy resin, dibutyl ester in proportion to the glass filament or with a PVC shrink sleeve.
A special packing.
A set of aluminum hot solder.
One anode bag.
Common types of cable insulation sheaths are: PVC/PVC, XLPE/PVC, HMWPE.
The quality index of prepackaged magnesium anode is: cable connection resistance is less than 0.001Ohm
Cable sizes are: 6 square millimeters, 10 square millimeters and 16 square millimeters.
Cable connection strength: more than 5 times the weight of the assembled anode.

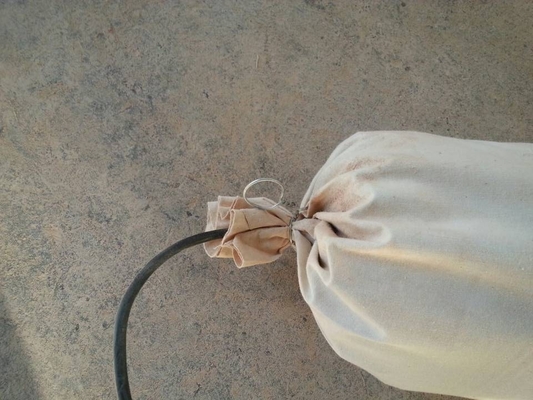

{BR} Complete set of magnesium sacrificial anode, consisting of 1 magnesium sacrificial anode ingot, 3 m VV-10mm2 cable, 50kg filling material, 1 cotton cloth pocket and 1 plastic woven bag. That is, there is a magnesium sacrificial anode ingot in the cotton pocket, and the VV-10mm2 cable is welded on the iron core by 3 meters, and the welded portion is insulated and covered with a heat shrinkable tube. A 50 kg filling material is evenly distributed around the magnesium sacrificial anode. 1 cotton woven bag with cotton pockets. Magnesium sacrificial anodes are suitable for cathodic protection of steel facilities operating in media such as soil, fresh water and seawater.
The above magnesium alloy sacrificial anodes can also be assembled and supplied to customers. The bare anode is first connected to the cable and the connection is sealed with epoxy. The filler is then packaged in a cotton bag.
