| 0: | Magnesium Anode FLEX 44" | Npt: | NPT 3/4" NPT 1/2 " Hex Steel Plug |
|---|---|---|---|
| Highlight: | mg anode,magnesium sacrificial anode |
||

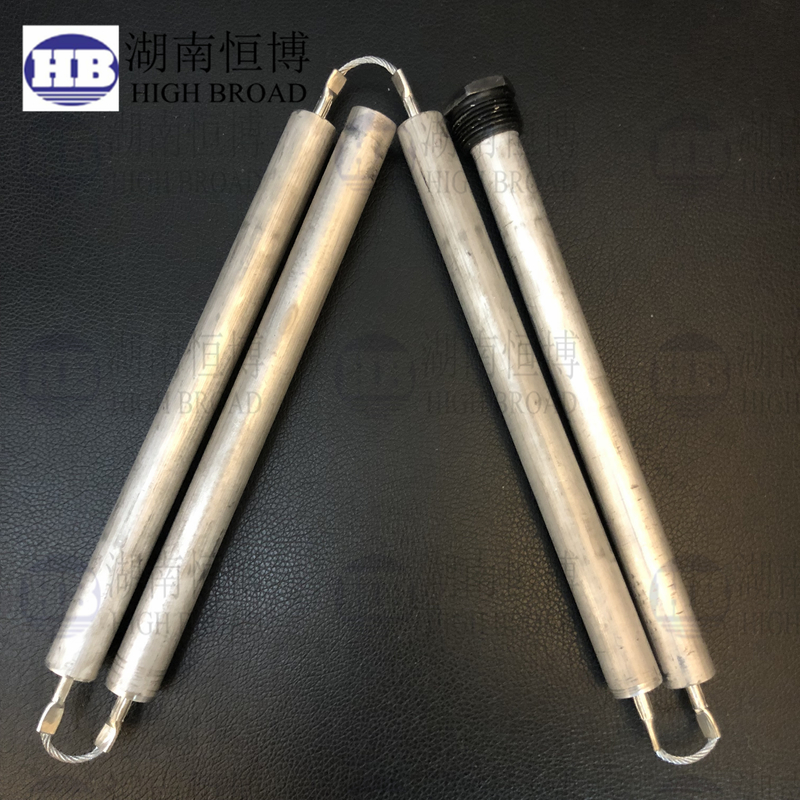

Ultra Flexible Segmented Sacrificial Anode Rod , Aluminum Zinc Anode Rod
Ultra Flexible segmented sacrificial magnesium anode rodaluminum zinc anode rod
flexible extruded magnesium anode rod
♦ Specification : :

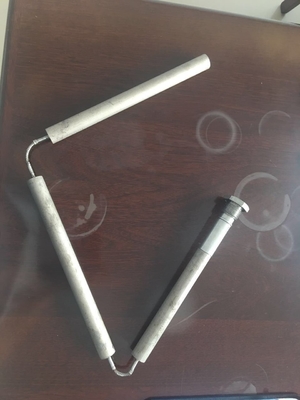

Flexible Magnesium anode / aluminum anode rods are designed for those limited spaces where a straight anode rod will be unable to be inserted into the water heater due to limited access directly above, such as low ceilings, closets, attics, under stairwells or in basements. Just bend the anode rod at its flexible section return it back to straight once inserted into your water heater, boiler, etc.
Anode rods are the most important line of defense in preventing corrosion and leaks in your water heater. These devices work because the metal in the rod is sacrificed so the tank does not corrode. As the anode works, the life of the water heater is increased. The anode should be checked and replaced every couple of years.
♦ Application :
Segmented Flexible Magnesium /Aluminum Anodes are usually used in a small diameter anodes requirement,such as for water heaters,boilers,water storage tanks,heat plumbing,gas stations CP systems. This anode is of the highest quality and will fit most Haier, Rheem, Vulcan, Dux, Rinnai and many others.
♦ Chemical compositions Flexible Aluminum Anode Rods :
| Type | Al | Zn | Silicon | Fe | Sn | Others | Mg |
| Aluminum anode | Balance | 4.0-5.0 | 0.25 | 0.25 | 0.05-0.25 | 0.15 | - |
* We can do according to customized size and requirements.
♦ Electrochemical properties of Flexible Aluminum Anode Rods:
| Type | Open-circuit voltage (-V) | Close-circuit voltage (-V)Zn | Actual capacitance (A·h/kg) | Current efficiency (%) |
| Aluminum anode | 1.10-1.18 | 1.05-1.12 | ≥2400 | ≥85 |
* We can do according to customized size and requirements.
♦ Chemical compositions Flexible Magnesium Anode bars :
| Type | Al | Zn | Mn | Fe | Cu | Ni | Si | Others | Mg |
| AZ31B | 2.5-3.5 | 0.6-1.4 | 0.2-1.0 | 0.005 | 0.01 | 0.001 | 0.1 | 0.3 | Balance |
| Mg-Mn | 0.01 | - | 0.5-1.3 | 0.03 | 0.02 | 0.001 | 0.05 | 0.3 | Balance |
♦ Electrochemical properties of Flexible Magnesium Rod Anodes:
| Type | Open-circuit voltage (-V) | Close-circuit voltage (-V)Zn | Actual capacitance (A·h/g) | Current efficiency (%) |
| AZ31B | 1.50-1.55 | 1.45-1.50 | ≥1.105 | ≥50 |
| Mg-Mn | 1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 |
* We can do according to customized size and requirements.
